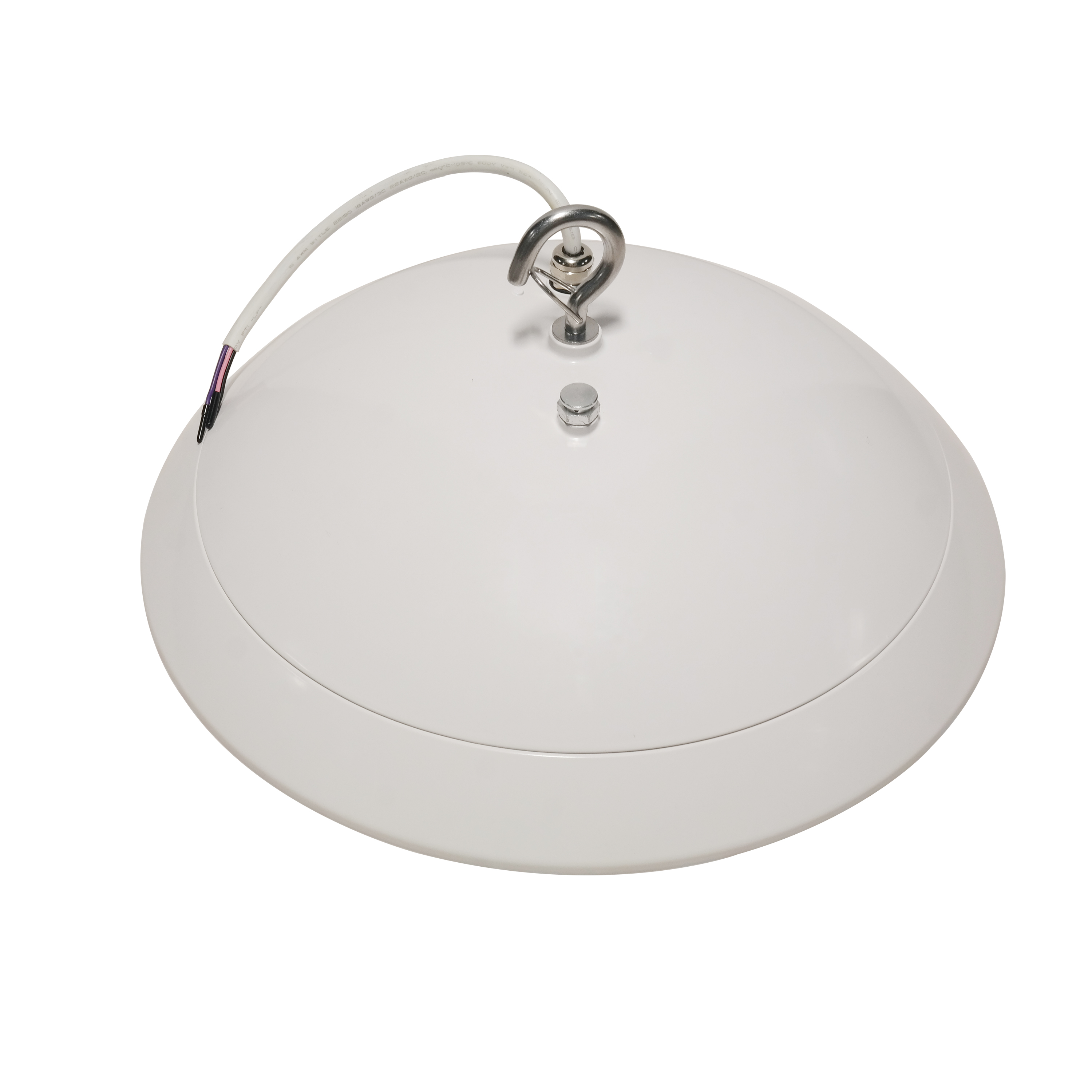

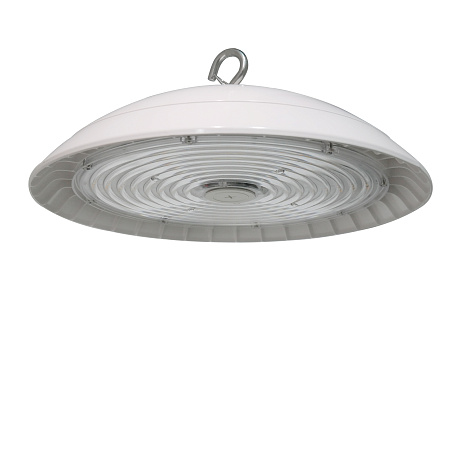

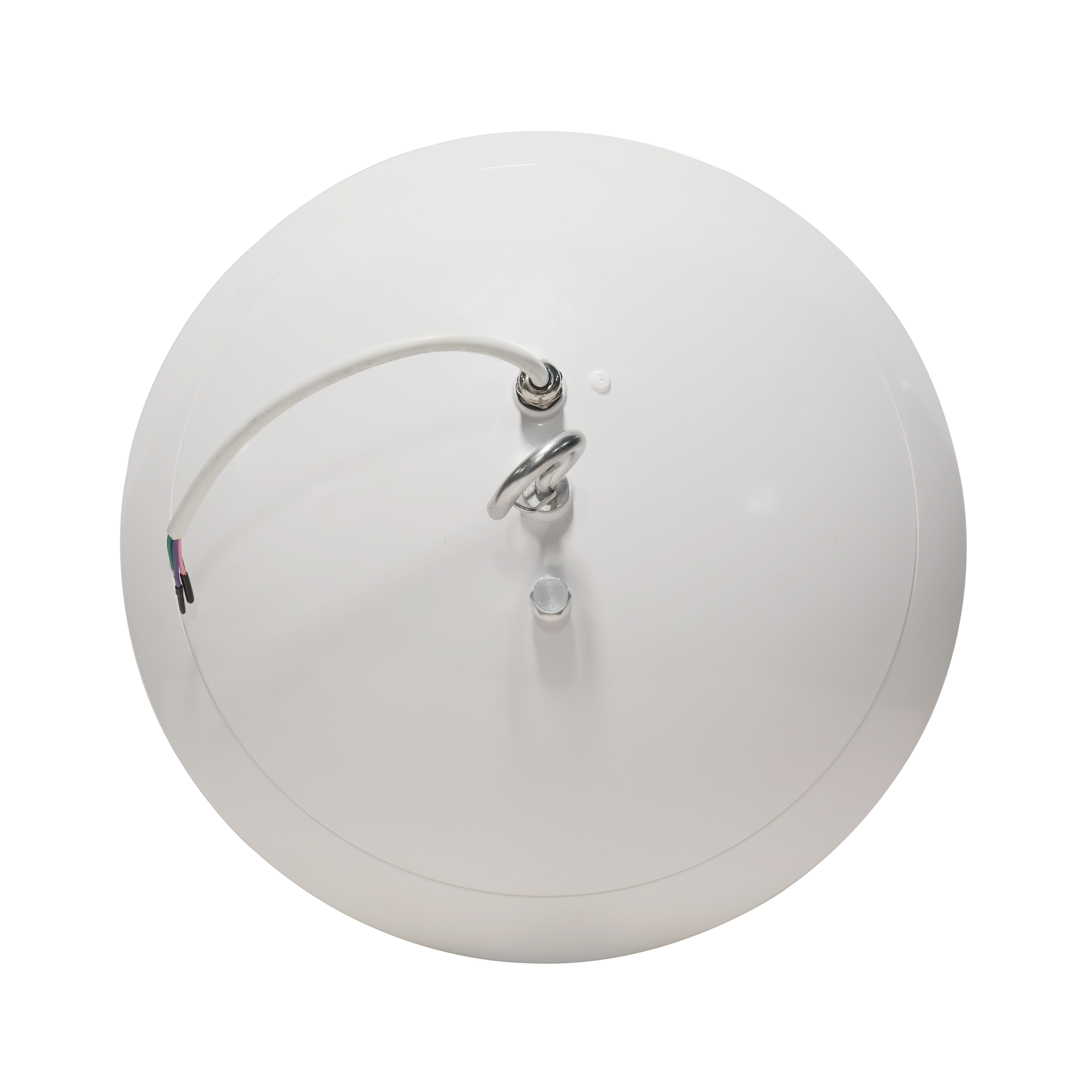

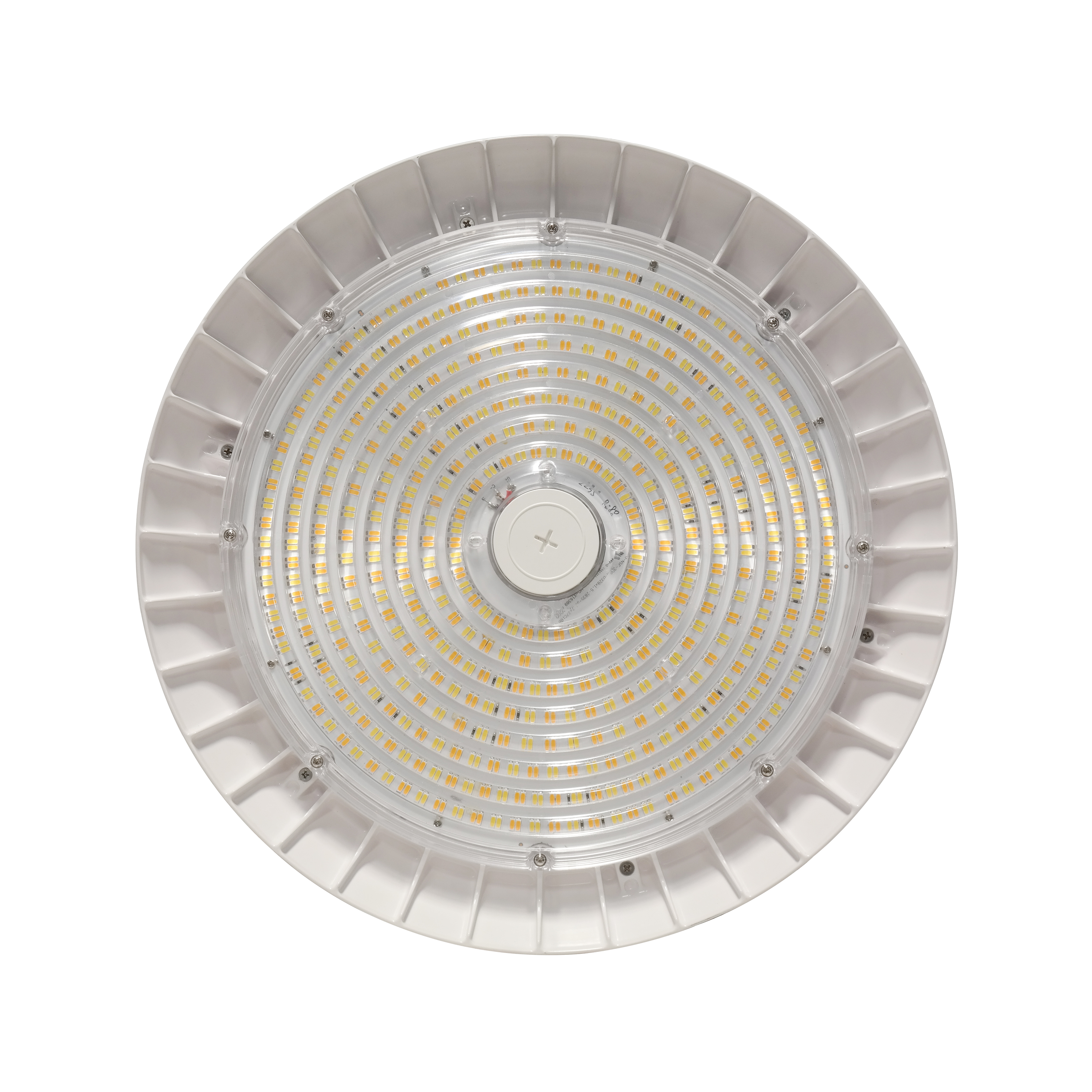

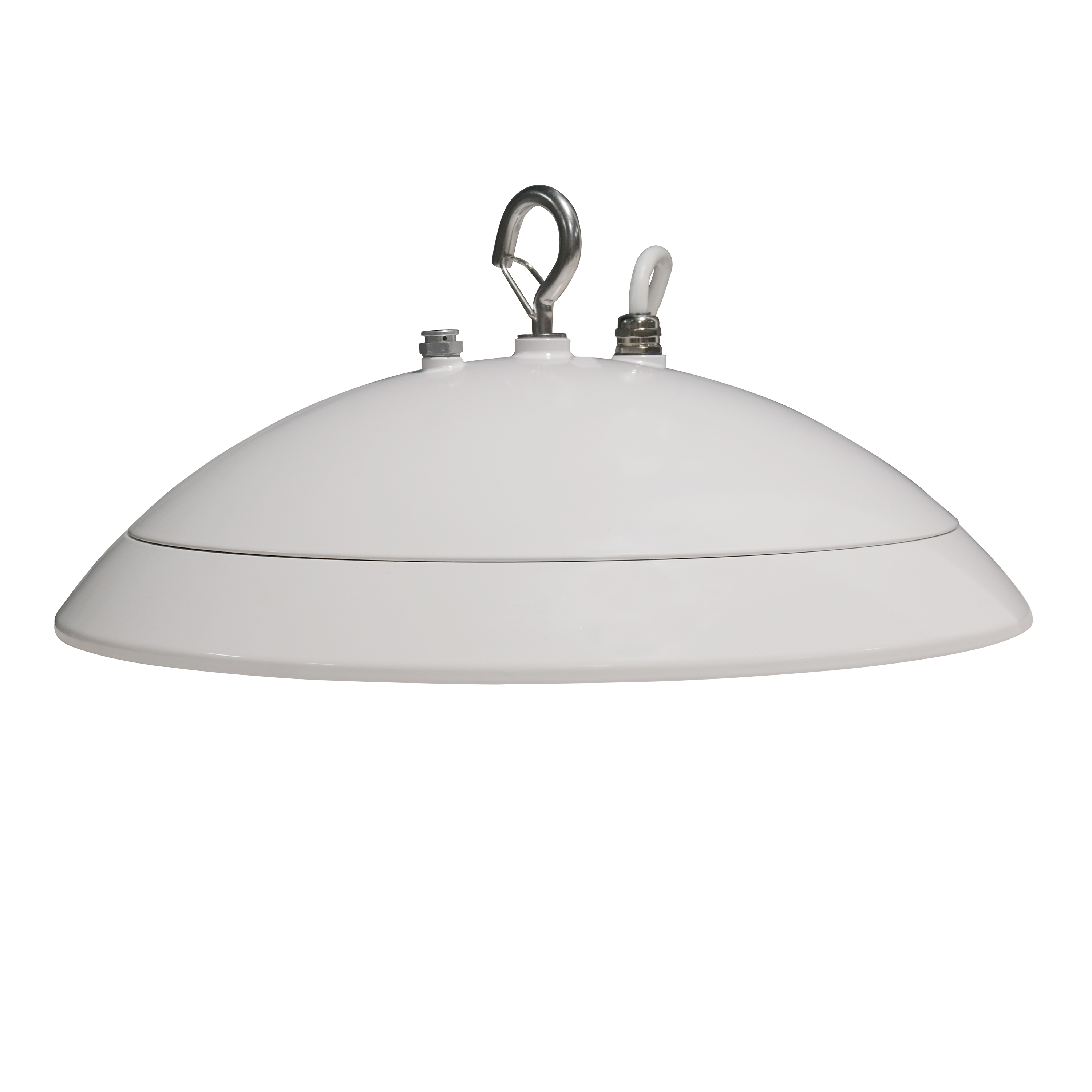

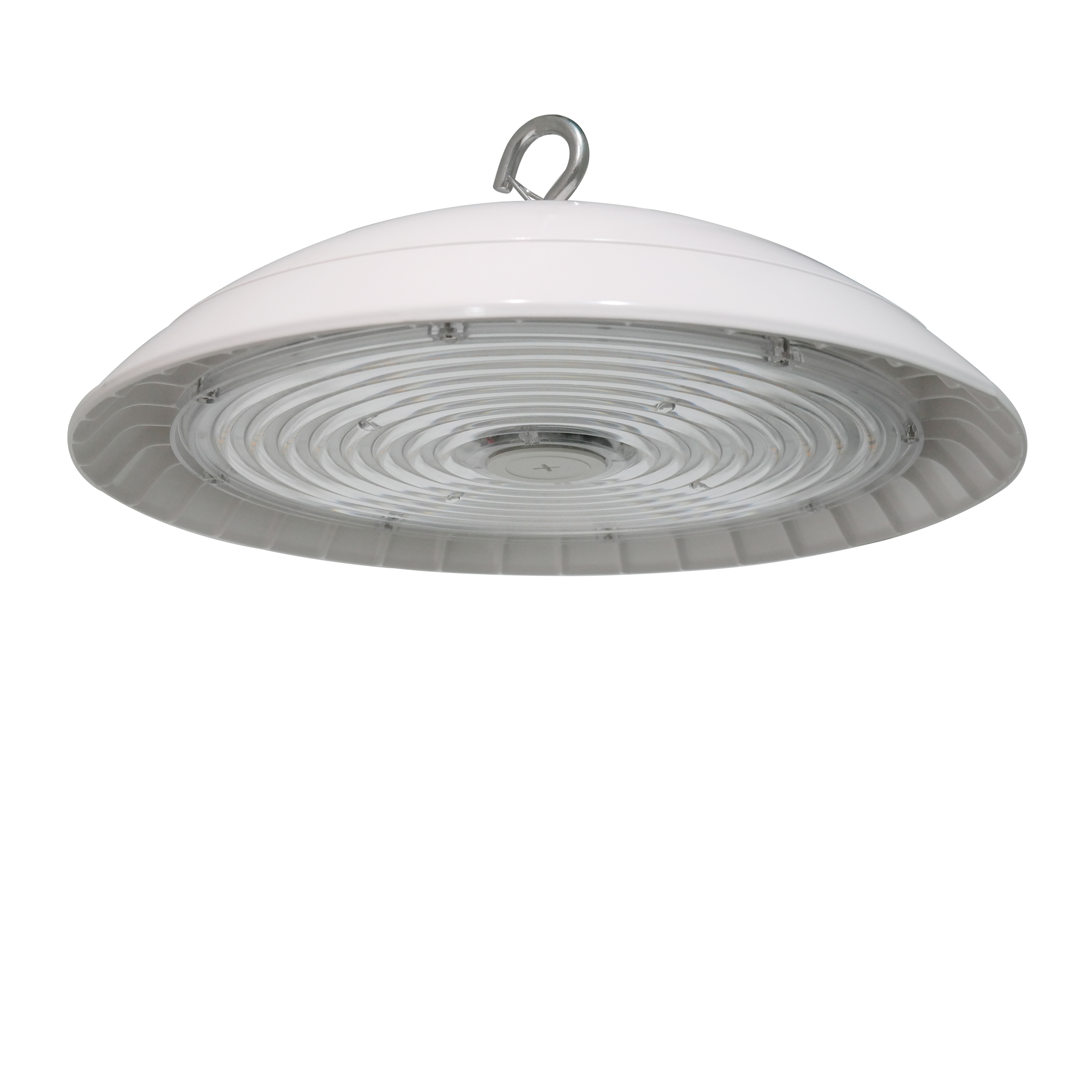

NSF LED UFO High Bay Series UFS-PRO

DESIGN. NSF LED UFO HIGH BAY features a smooth, dust-proof surface that is easy to clean and has a watertight seal, making it resistant to frequent wash downs. The product is extemely efficient, with a 160 lm/w output. The corrosion-resistant aluminum housing and SUS316
stainless steel screws provide excellent heat dissipation, while the 4 ft cord makes installation easier. The light operates on 120-277 V circuits or on 200-480 V circuits for High Voltage models with a 0-10 V dimmable driver.

COLOR AND POWER SELECTABLE. You can choose either a 3,000K warm white, 4,000K cool white or 5,000K daylight color temperature, and change the power with a simple switch and change the power output ranges from 100 watts to 300 watts (depending on the model), with a simple control switch.

IP69K rating provides protection against ingress of dust and high temperature, high pressure water.

NSF. Certified by the National Sanitation Foundation as safe for food service processing facilities that require a higher level of sanitation.

ADVANTAGES: With calculated lifespan up to 167 000 hours, these fixtures are made to last decades under normal operation! ASD provides a 5-year limited warranty along with UL and DLC Premium certifications to guarantee top quality products and safety!

NSF LED UFO High bay with Q-base

Model
PowerlmCCTCRI
LocationOperating t°
DimmingDLC
version
CertificateCut SheetUPC (GTIN-12)
ASD-UFS-PRO-200-QB120-277V100/150/200W17,702/24,520/31,5033,000/4,000/5,00090°16 15/1616 15/165 5/8Wet-40 +140F°/-40 +60C° R>102,000 C>167,000YesPremium810128118002
ASD-UFS-PRO-300-QB120-277V200/240/300W17,702/24,520/31,5033,000/4,000/5,000>8090°16 15/1616 15/165 5/8Wet-40 +140F°/-40 +60C° R>102,000 C>167,000YesPremium810128118705

NSF LED UFO High bay High Voltage with Q-base

Model
PowerlmCCTCRI
LocationOperating t°
DLC
version
CertificateCut SheetUPC (GTIN-12)
ASD-UFSHV-PRO-300-QB200-480V200/240/300W36,151/41,798/48,3233,000/4,000/5,000>8090°16 15/1616 15/165 5/8Wet-40 +122F°/-40 +50C°R>102,000 C>167,000Premium810128118521
ASD-UFSHV-PRO-200-QB200-480V100/150/200W17,687/25,761/32,6013,000/4,000/5,000>8090°16 15/1616 15/165 5/8Wet-40 +122F°/-40 +50C°R>102,000 C>167,000Premium810128118514

NSF LED UFO High bay

Model
PowerlmCCT
LocationOperating t°
DLC
version
CertificateCut SheetUPC (GTIN-12)
ASD-UFS-PRO-300120-277V200/240/300W31,794/37,095/45,4443,000/4,000/5,00016 15/1616 15/165 5/8Wet-40 +140F°/-40 +60C° R>102,000 C>167,000Premium810128114301
ASD-UFS-PRO-200120-277V100/150/200W17,702/24,520/31,5033,000/4,000/5,00016 15/1616 15/165 5/8Wet-40 +140F°/-40 +60C° R>102,000 C>167,000Premium810128114028
