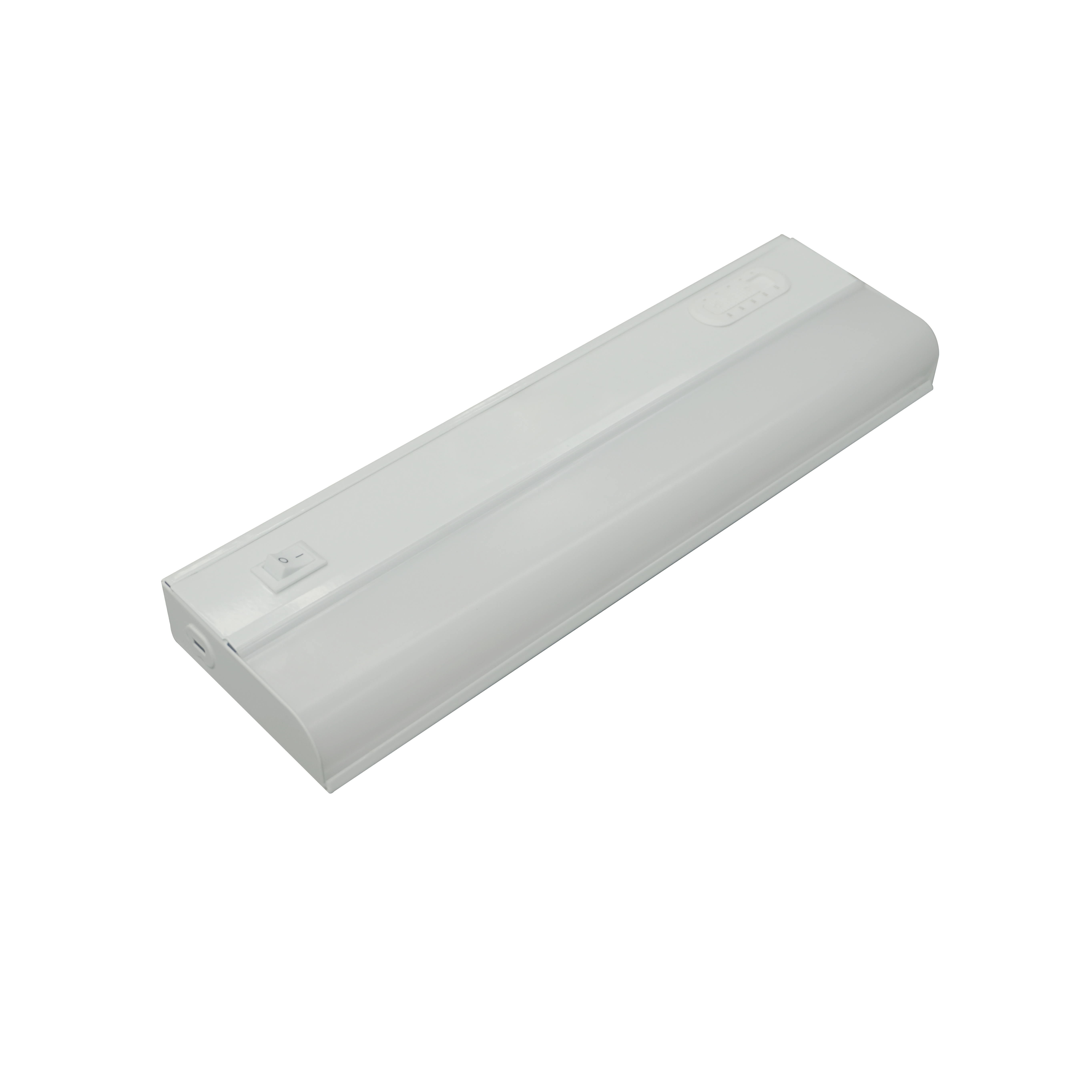

LED Under Cabinet Bullnose Series UBN

DESIGN. LED UNDER CABINET BULLNOSE LIGHT with ON/OFF switch is perfect for a hidden backlight. The acrylic lens with a 110° beam angle and CRI90+ grants you even light distribution. It is designed to operate on 120V circuits.

COLOR SELECTABLE. You can choose either a 2700K soft white, 3000K warm white, 3500K neutral white, 4000K cool white, or 5000K daylight color temperature.

DIMMING. Smooth triac dimming capabilities ranging from 10% to 100% with modern LED dimmers allow you to control the look and feel of your space.

INSTALLATION. Quick and easy hardwired installation. It is also Damp Locations rated.

ADVANTAGES: With a lifespan of 50,000 hours, these fixtures are made to last decades under normal operation! ASD provides a 5-year limited warranty along with UL certification to guarantee top quality products and safety!

Model		Power	lm	CCT	CRI					Location	Operating t°		Dimming	UPC (GTIN-12)	GTIN (14)
ASD-UBN-9WH	120V	4W	280/303/328/337/327	2,700/3,000/3,500/4,000/5,000	>90	110°	9	3 1/2	1 1/8	Damp	-4 +113F°/-20 +45C°	50,000	Yes	810128115438	10810128115435
ASD-UBN-48WH	120V	24W	1,755/1,856/2,023/2,087/2,029	2,700/3,000/3,500/4,000/5,000	>90	110°	48 1/16	3 1/2	1 1/8	Damp	-4 +113F°/-20 +45C°	50,000	Yes	810128115421	10810128115428
ASD-UBN-40WH	120V	20W	1,541/1,623/1,752/1,814/1,789	2,700/3,000/3,500/4,000/5,000	>90	110°	40	3 1/2	1 1/8	Damp	-4 +113F°/-20 +45C°	50,000	Yes	810128115414	10810128115411
ASD-UBN-32WH	120V	16W	1,206/1,299/1,390/1,436/1,400	2,700/3,000/3,500/4,000/5,000	>90	110°	32 1/4	3 1/2	1 1/8	Damp	-4 +113F°/-20 +45C°	50,000	Yes	810128115407	10810128115404
ASD-UBN-24WH-2P	120V	12W	880/969/1,026/1,051/1,023	2,700/3,000/3,500/4,000/5,000	>90	110°	24	3 1/2	1 1/8	Damp	-4 +113F°/-20 +45C°	50,000	Yes	810128115391	10810128115398
ASD-UBN-24WH	120V	12W	880/969/1,026/1,051/1,023	2,700/3,000/3,500/4,000/5,000	>90	110°	24	3 1/2	1 1/8	Damp	-4 +113F°/-20 +45C°	50,000	Yes	810128115384	10810128115381
ASD-UBN-18WH-2P	120V	10W	674/737/791/807/777	2,700/3,000/3,500/4,000/5,000	>90	110°	18	3 1/2	1 1/8	Damp	-4 +113F°/-20 +45C°	50,000	Yes	810128115377	10810128115374
ASD-UBN-18WH	120V	10W	674/737/791/807/777	2,700/3,000/3,500/4,000/5,000	>90	110°	18	3 1/2	1 1/8	Damp	-4 +113F°/-20 +45C°	50,000	Yes	810128115360	10810128115367
ASD-UBN-12WH-2P	120V	5W	382/401/431/442/443	2,700/3,000/3,500/4,000/5,000	>90	110°	12	3 1/2	1 1/8	Damp	-4 +113F°/-20 +45C°	50,000	Yes	810128115353	10810128115350
ASD-UBN-12WH	120V	5W	382/401/431/442/443	2,700/3,000/3,500/4,000/5,000	>90	110°	12	3 1/2	1 1/8	Damp	-4 +113F°/-20 +45C°	50,000	Yes	810128115346	10810128115343
