LED UFO High Bay with Q-base Series UHB2A-PRO

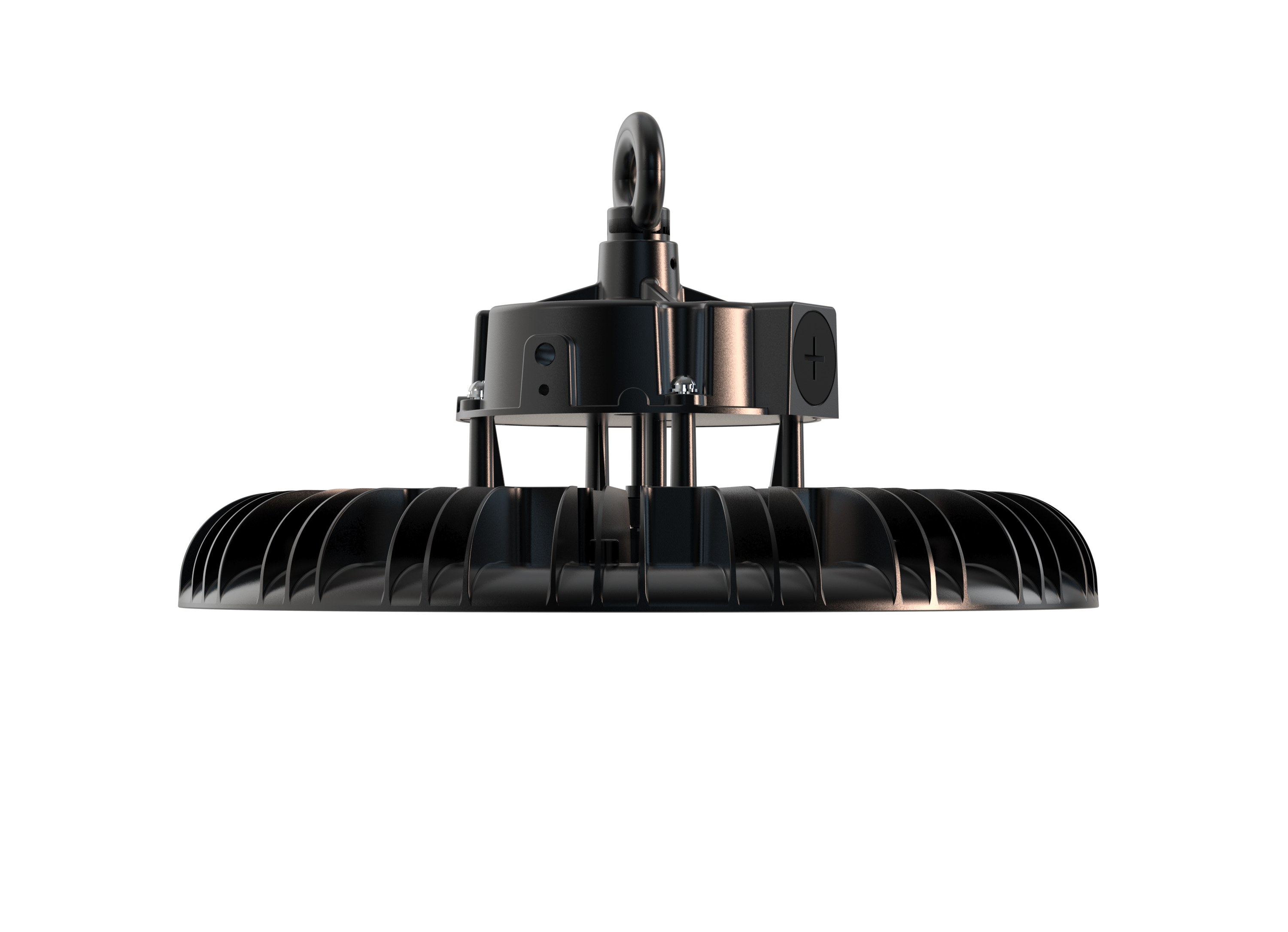

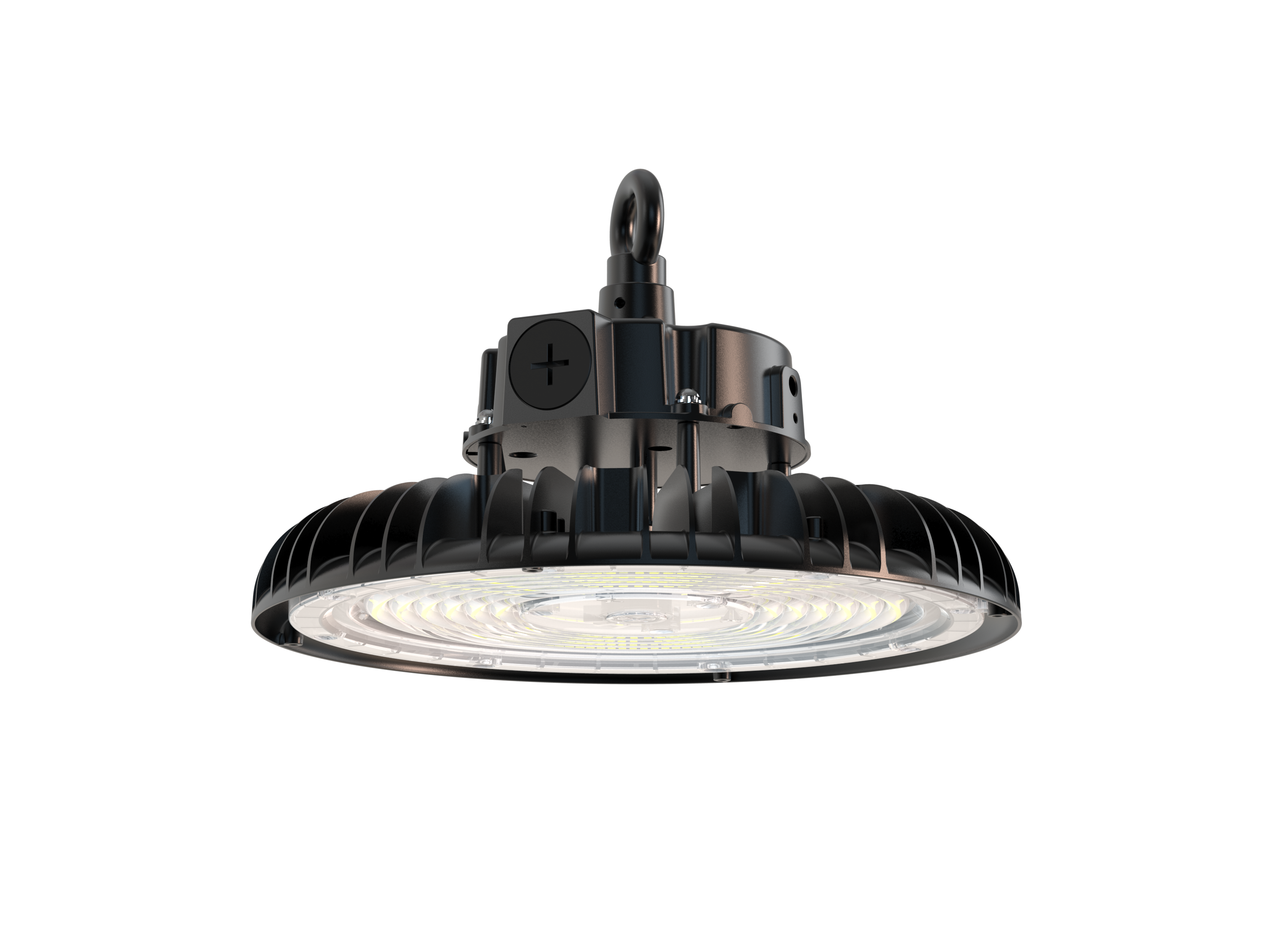

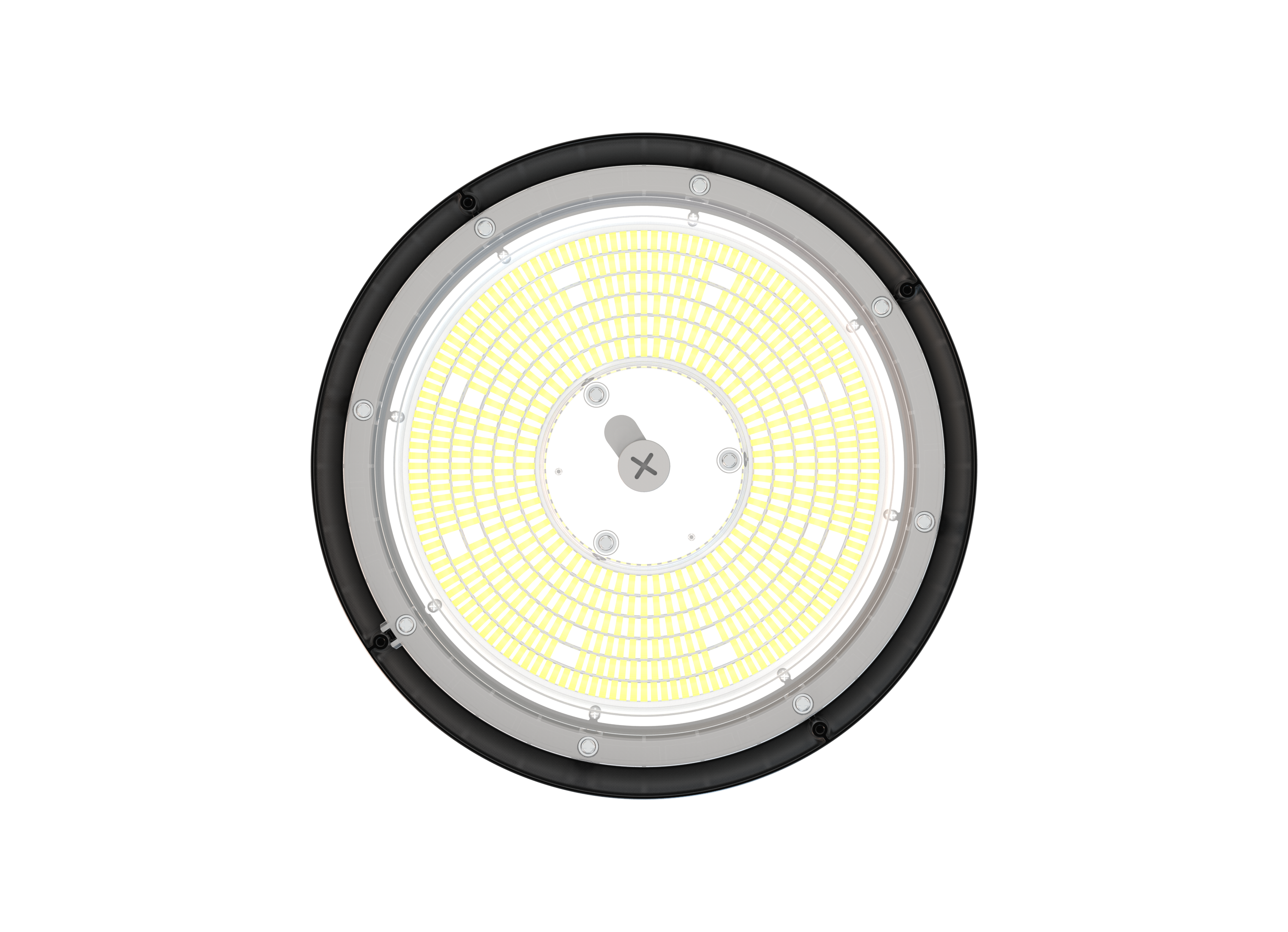

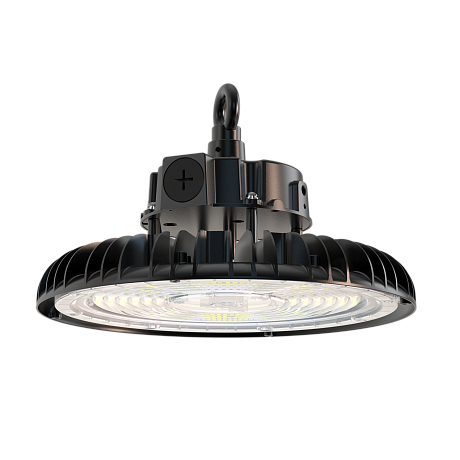

DESIGN. LED UFO HIGH BAY with Q-base PRO Series  is extremely efficient with a 170lm/W output. Die-cast aluminum housing with excellent heat dissipation along with an anti-glare PC lens provide many years of use.  It can operate in temperatures ranging from -40 to 140°F. It is designed to operate on 277-480V circuits with a 0-10V dimmable driver. Surge protection 6kV protects the fixture from voltage spikes and current surges.

IP69K rating provides protection against ingress of dust and high temperature, high pressure water.

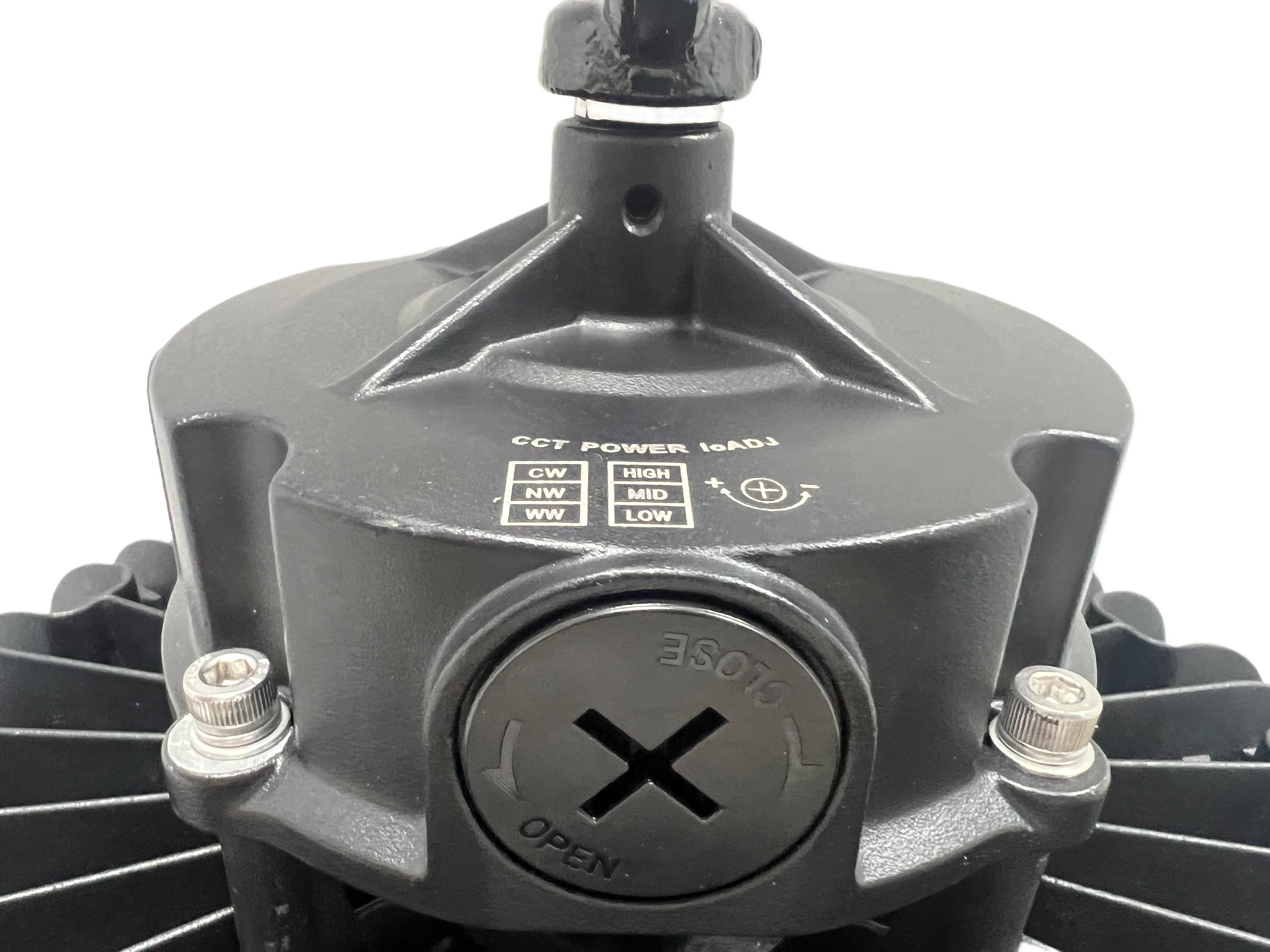

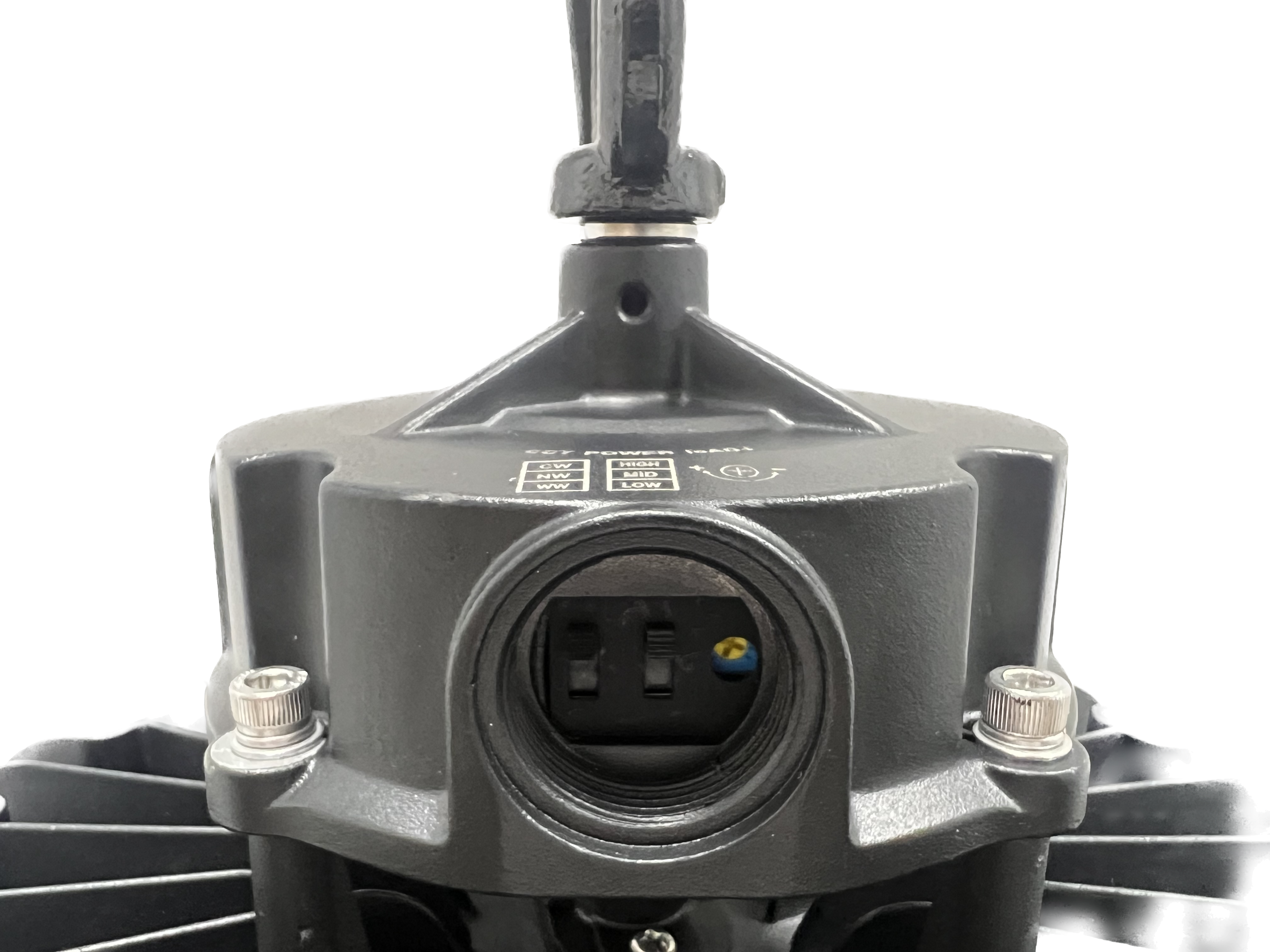

POWER SELECTABLE: You can easily change the power and light output with a simple switch.

INSTALLATION. This fixture has three different mounting options: suspended, surface, and pendant. It comes with 4 ft cord. Perfect commercial or industrial solution for warehouses, supermarkets, retail stores, gyms, and many other applications.

ADVANTAGES: With calculated lifespan up to 143 000 hours, these fixtures are made to last decades under normal operation! ASD provides a 5-year limited warranty along with UL and DLC Premium certifications to guarantee top quality products and safety!

LED UFO High Bay with Q-base High Voltage

Model
PowerlmCCTCRI
IPLocationOperating t°
DimmingDLC
version
CertificateCut SheetIESUPC (GTIN-12)
ASD-UHB2AHV-PRO-500-BK277-480V300/400/500W52,780/69,556/81,8993,000/4,000/5,000>7090°14 9/1614 9/1610 1/16IP69KWet-40 +140F° -40 +60C° R>54,000 C>146,000YesPremium810128116978
ASD-UHB2AHV-PRO-150-BK277-480V100/120/150W17,734/20,740/25,3923,000/4,000/5,000>7090°11116 7/8IP69KWet-40 +140F° -40 +60C° R>54,000 C>146,000YesPremium810128116961
ASD-UHB2AHV-PRO-300-BK277-480V200/240/300W35,643/40,396/48,3403,000/4,000/5,000>7090°12 5/812 5/86 7/8IP69KWet-40 +140F° -40 +60C° R>54,000 C>142,000YesPremium810128115643
ASD-UHB2AHV-PRO-240-BK277-480V150/200/240W27,164/34,217/39,5973,000/4,000/5,000>7090°12 5/812 5/86 3/4IP69KWet-40 +140F° -40 +60C° R>54,000 C>145,000YesPremium810128115636
ASD-UHB2AHV-PRO-200-BK277-480V100/150/200W17,372/25,408/32,4253,000/4,000/5,000>7090°11116 3/4IP69KWet-40 +140F° -40 +60C° R>54,000 C>146,000YesPremium810128115629

LED UFO High Bay with Q-base

Model
PowerlmCCTCRI
IPLocationOperating t°
DimmingDLC
version
CertificateCut SheetIESUPC (GTIN-12)
ASD-UHB2A-PRO-500-BK120-277V300/400/500W52,780/69,556/81,8993,000/4,000/5,000>7090°14 9/1614 9/1610 1/16IP69KWet-40 +140F° -40 +60C° R>54,000 C>138,000YesPremium810128116954
ASD-UHB2A-PRO-300-BK120-277V200/240/300W35,643/40,396/48,3403,000/4,000/5,000>7090°12 5/812 5/87 15/16IP69KWet-40 +140F° -40 +60C° R>54,000 C>142,000YesPremium810128116947
ASD-UHB2A-PRO-240-BK120-277V150/200/240W27,164/34,217/39,5973,000/4,000/5,000>7090°12 5/812 5/86 3/4IP69KWet-40 +140F° -40 +60C° R>54,000 C>145,000YesPremium810128116930
ASD-UHB2A-PRO-200-BK120-277V100/150/200W17,372/25,408/32,4253,000/4,000/5,000>7090°11116 3/4IP69KWet-40 +140F° -40 +60C° R>54,000 C>146,000YesPremium810128116923
ASD-UHB2A-PRO-150-BK120-277V100/120/150W17,734/20,740/25,3923,000/4,000/5,000>7090°11116 3/4IP69KWet-40 +140F° -40 +60C° R>54,000 C>146,000YesPremium810128116916
