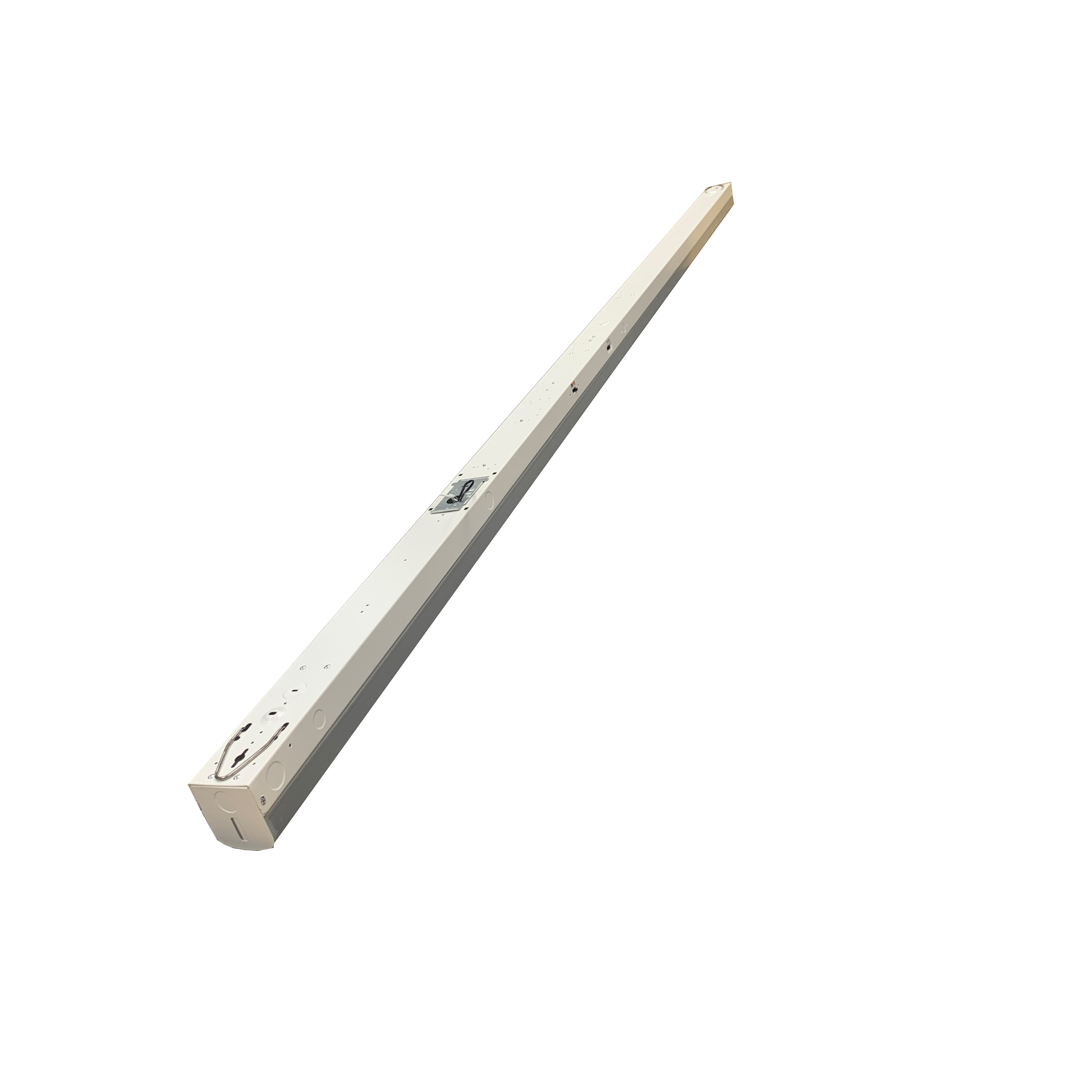

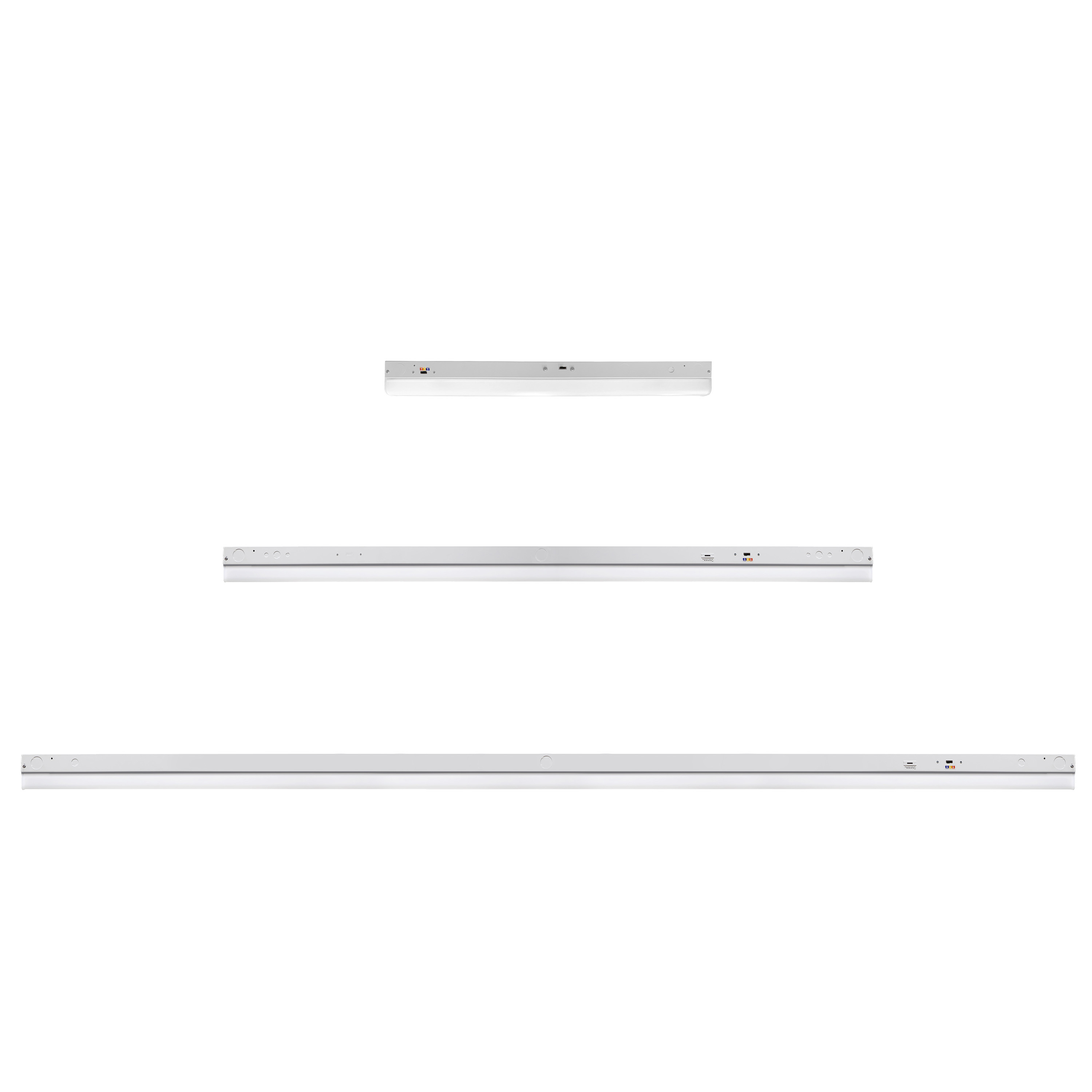

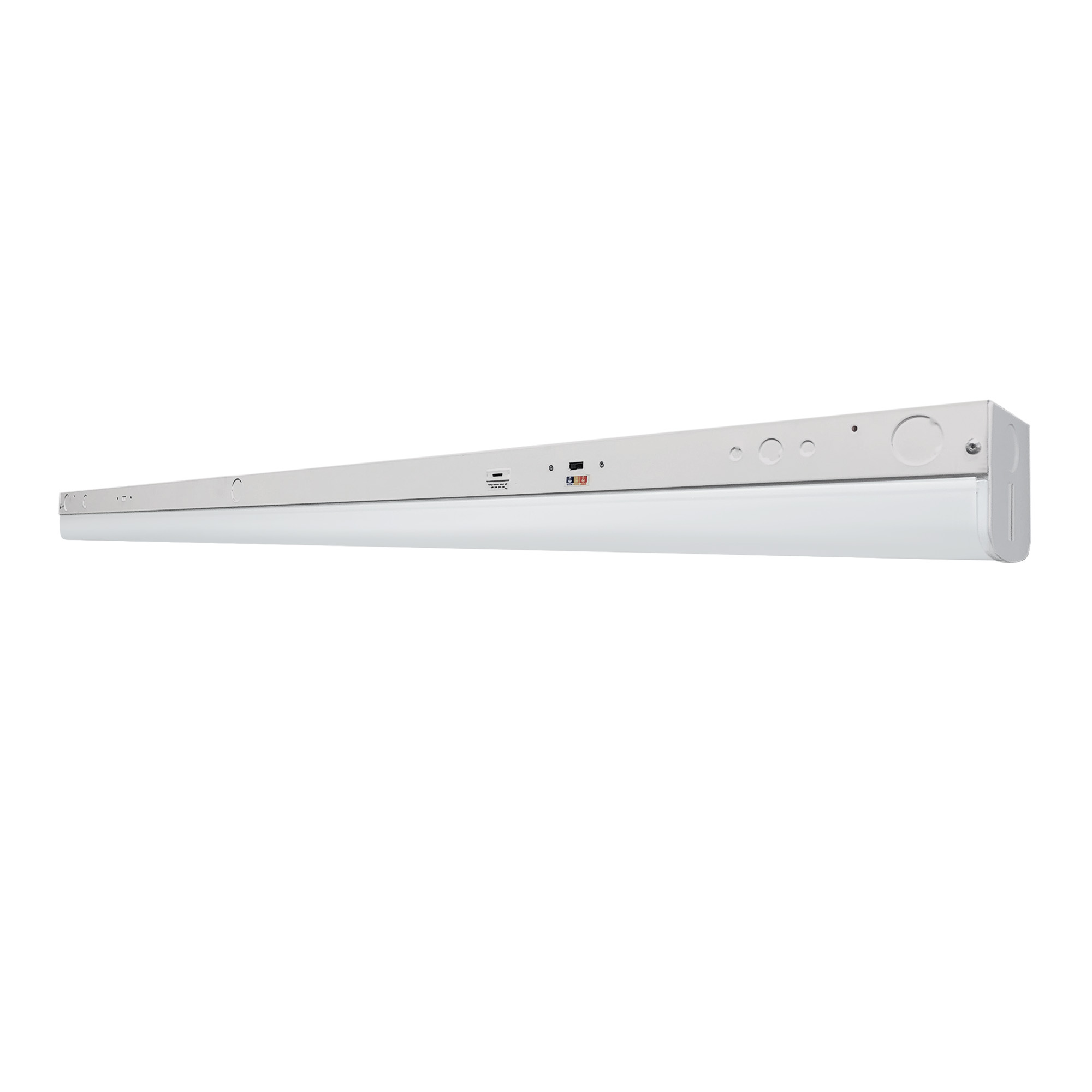

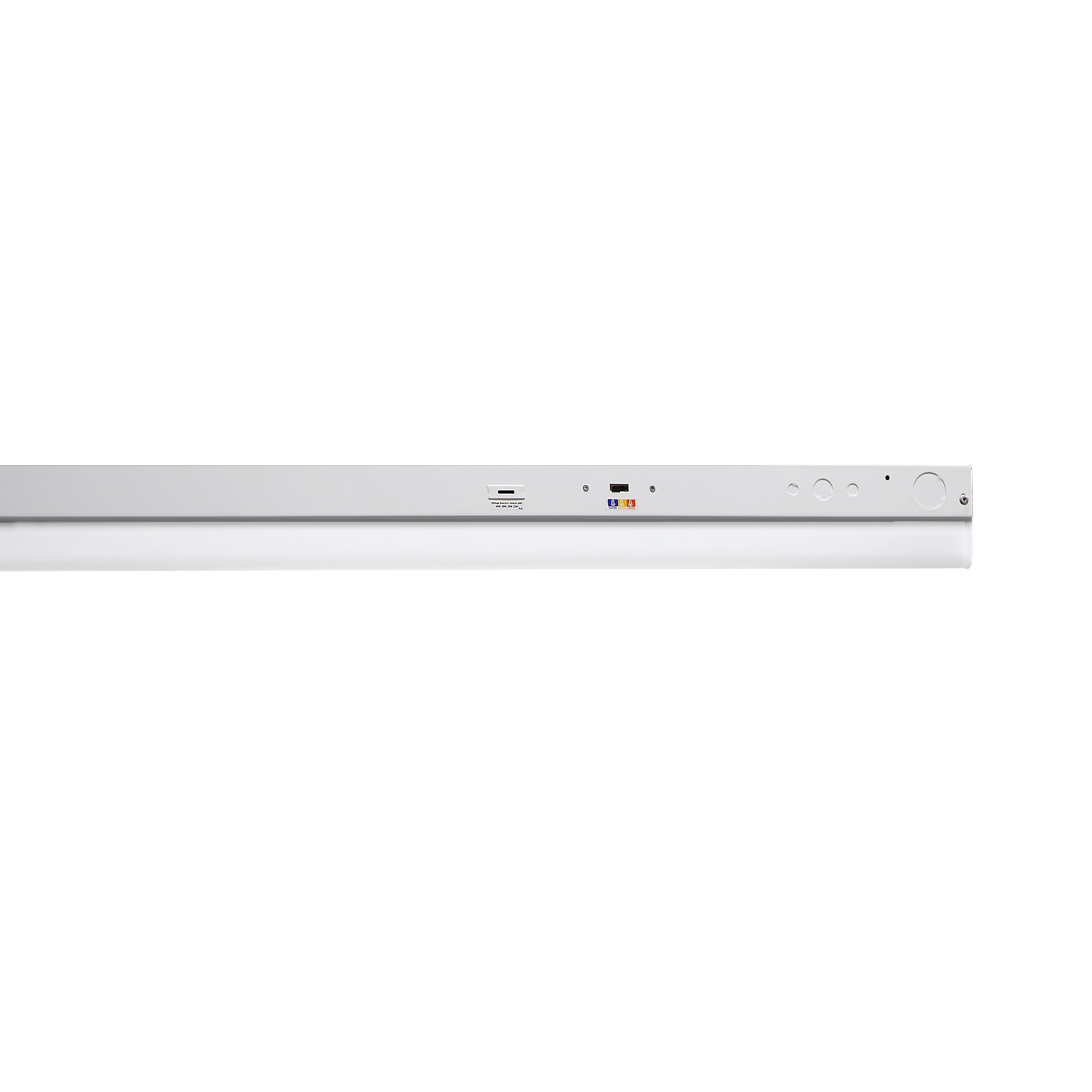

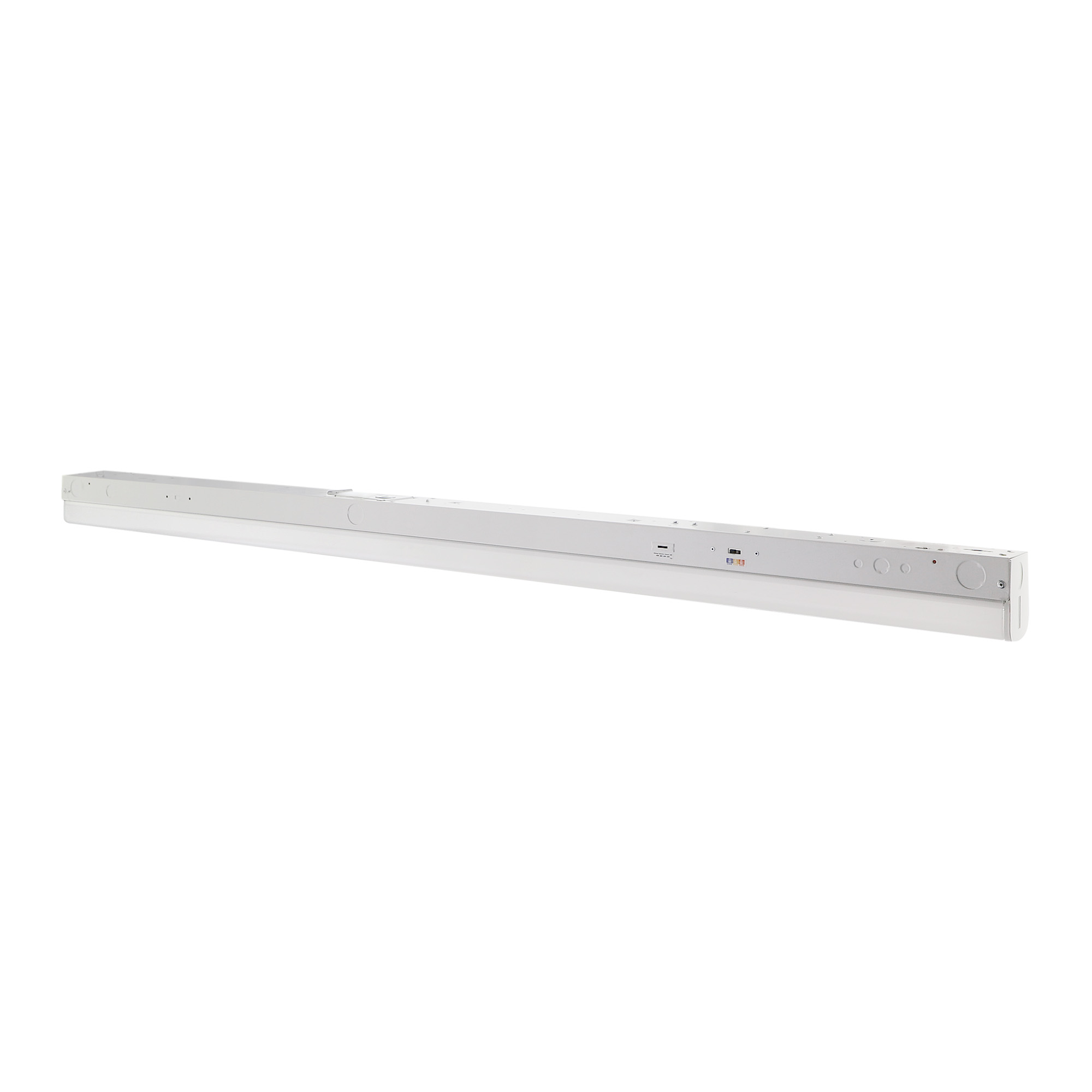

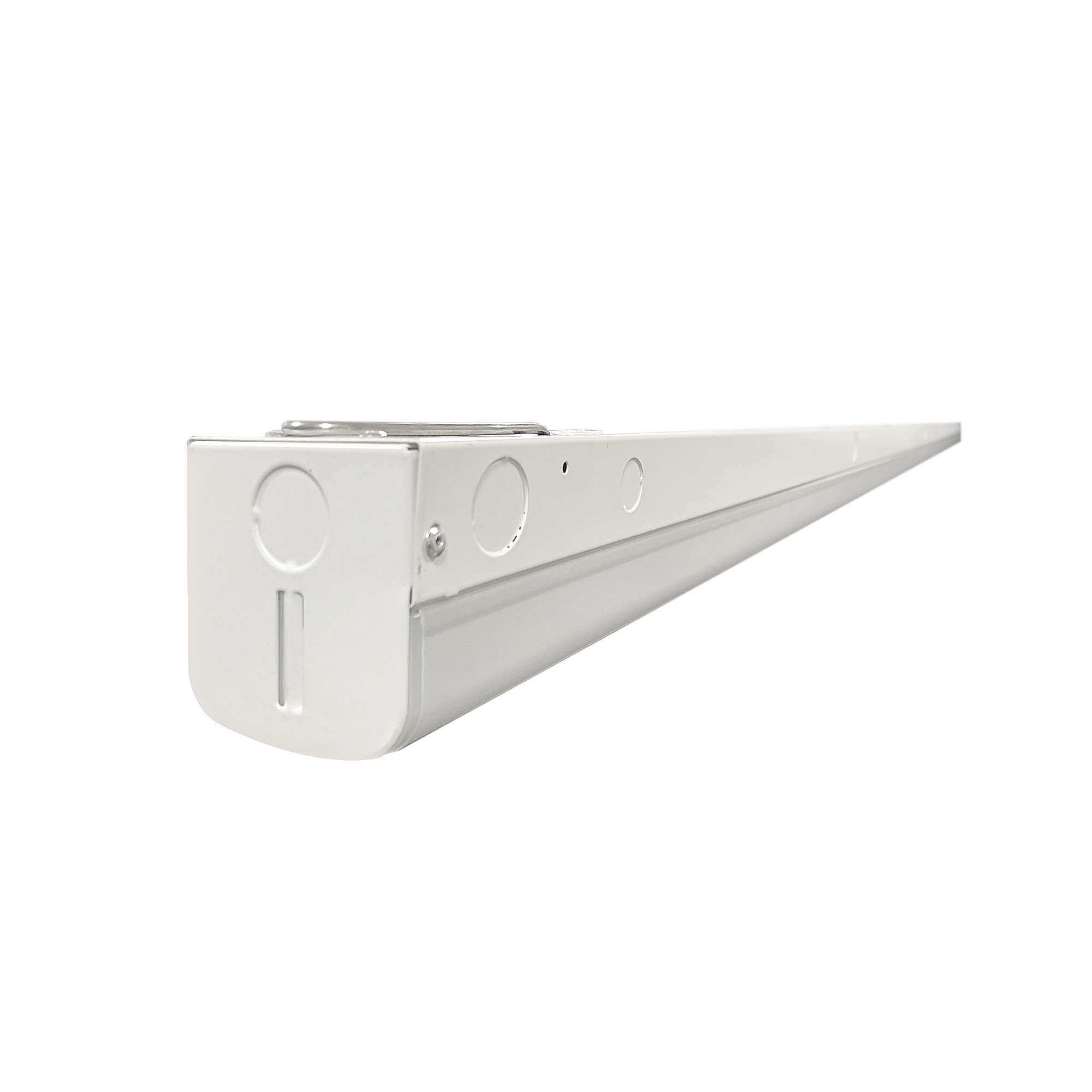

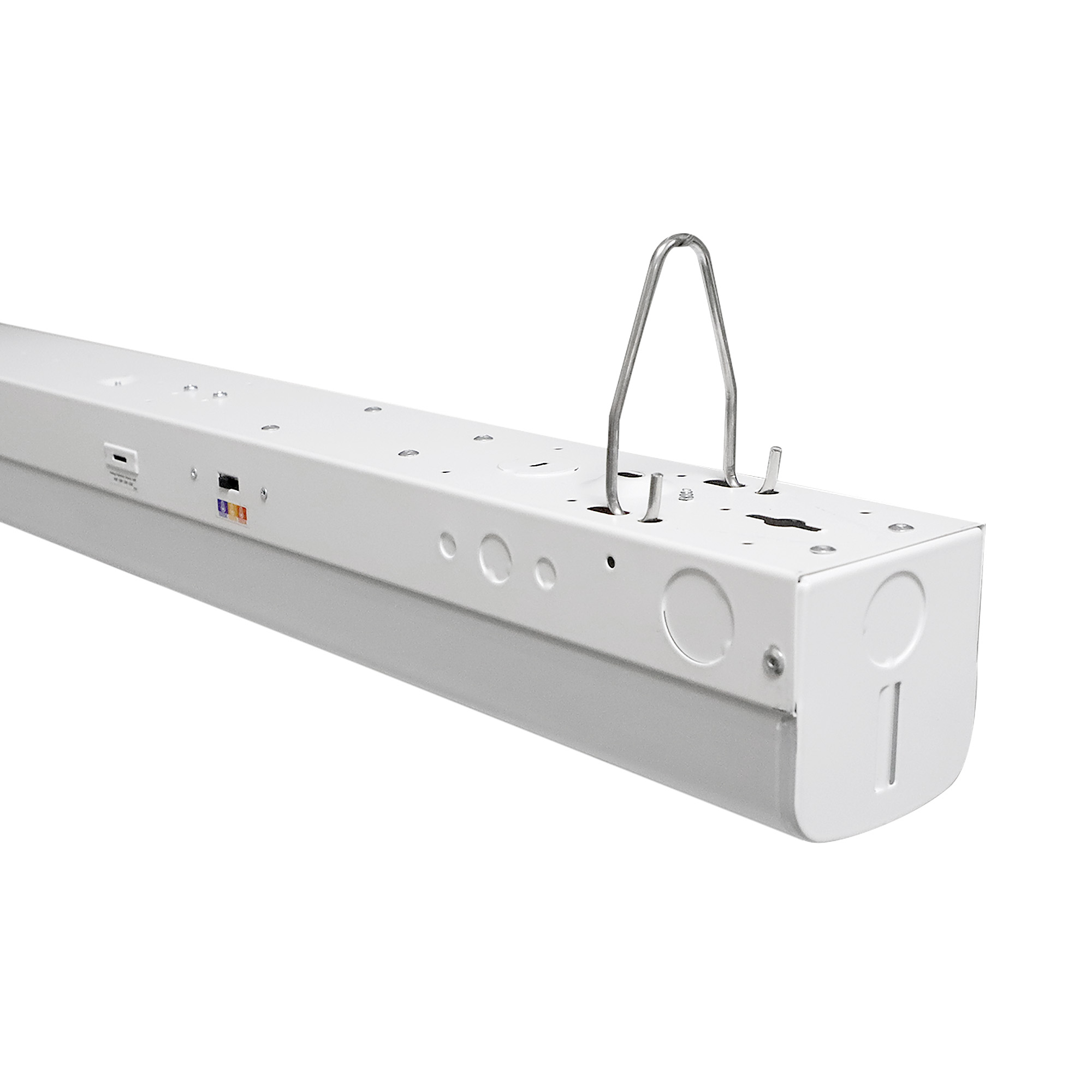

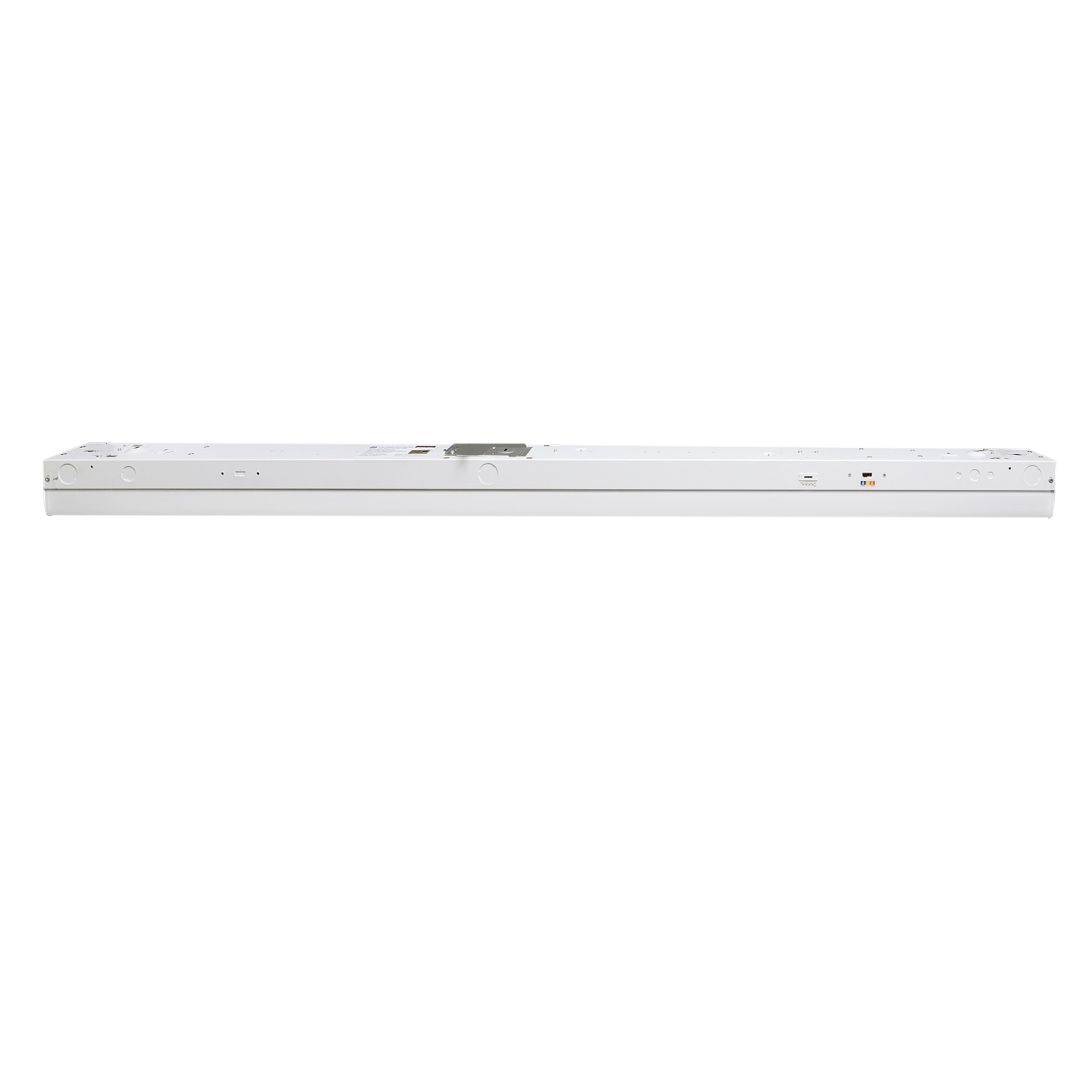

LED Striplight Fixtures Series LSF5

DESIGN. LED STRIPLIGHT FIXTURE has a narrow, low-profile design. Durable commercial grade housing resistant to rust and impact along with an anti-glare PMMA lens provide many years of use.
It is designed to operate on 120-277V circuits with a 0-10V dimmable driver.

COLOR AND POWER SELECTABLE. You can choose either a 3500K neutral white, 4000K cool white or 5000K daylight color temperature, and change the power with a simple switch.

LINKABLE DESIGN. Design of the fixture allows to connect multiple fixtures together with connection bracket.

APPLICATION. Perfect commercial or industrial solution for office buildings, schools, hospitals, hallways, stairwells, workshops, and many other applications. It is also Damp Locations rated.

ADVANTAGES: With calculated lifespan up to 174 000 hours, these fixtures are made to last decades under normal operation! ASD provides a 5-year limited warranty along with UL and DLC Standard certifications to guarantee top quality products and safety!

LED Striplight Fixture Power and Color Adjustable

Model
PowerlmCCTCRI
LocationOperating t°
DimmingDLC
version
CertificateCut SheetIESUPC (GTIN-12)GTIN (14)

— with Motion Sensor —

Download all IES files
ASD-LSF5-8A90AC-MS-PRM120-277V48/68/90W6,390/9,254/12,5233,500/4,000/5,000>80110°92 13/162 5/82 11/16Damp-4+104°F -20+40°CR>54,000 C>174,000YesStandard81012811281910810128112816
ASD-LSF5-2A28AC-PRM120-277V20/24/28W2,646/3,325/3,8903,500/4,000/5,000>80110°26 3/162 5/82 11/16Damp-4+104°F -20+40°CR>54,000 C>174,000YesStandard81005073797510810050737972
ASD-LSF5-4A44AC-PRM120-277V22/28/36/44W3,205/3,969/5,045/5,8533,500/4,000/5,000>80110°46 5/82 5/82 11/16Damp-4+104°F -20+40°CR>54,000 C>174,000YesStandard81005073024210810050730249
ASD-LSF5-8A90AC-PRM120-277V48/68/90W6,390/9,254/12,5343,500/4,000/5,000>80110°92 13/162 5/82 11/16Damp-4+104°F -20+40°CR>54,000 C>174,000YesStandard81005073027310810050730270
