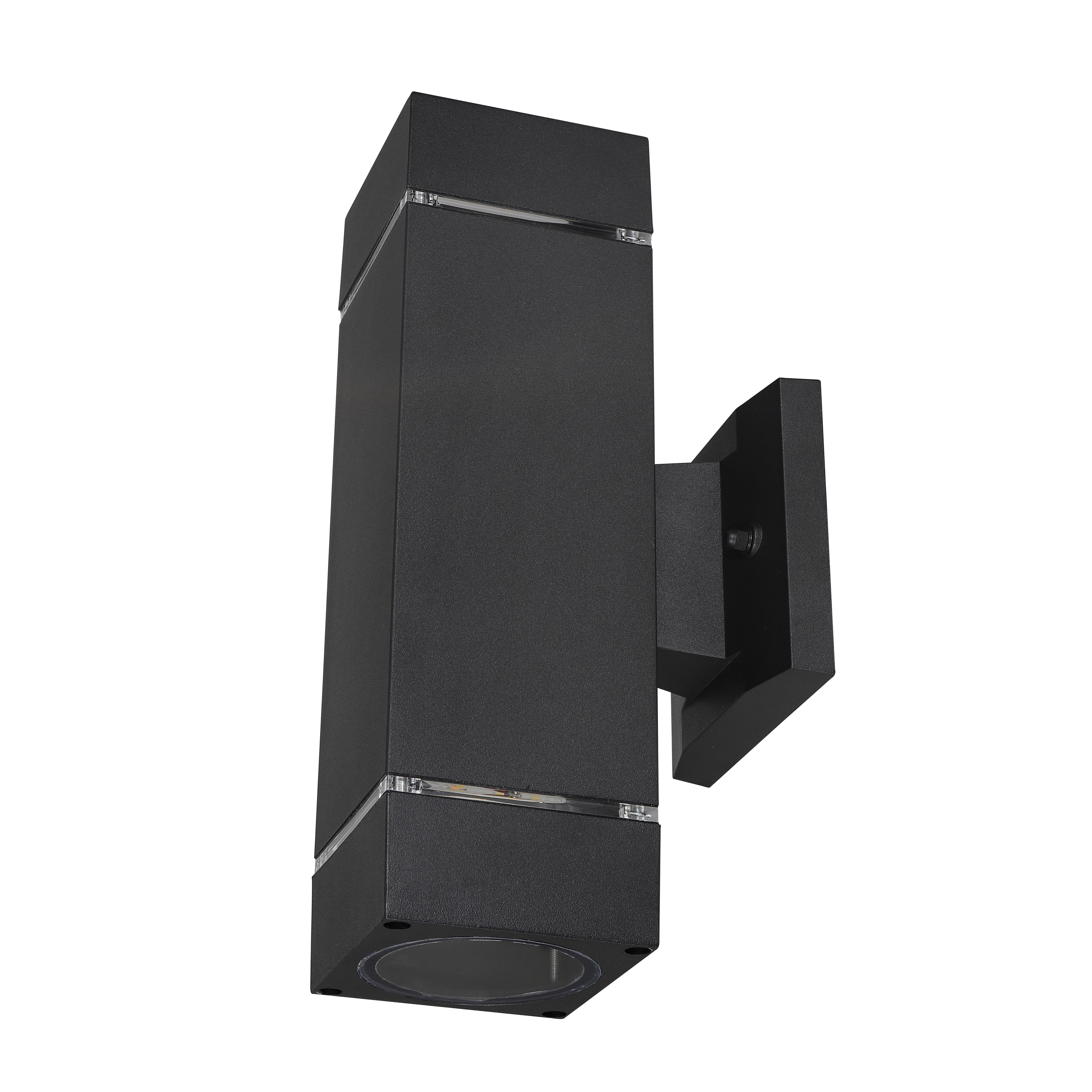

LED Square Outdoor Wall Cylinder CCT tunable with Decorative ring

DESIGN. LED OUTDOOR WALL CYLINDER has a modern design with effective up and/or down illumination. Elegant rings add premium appearance. This fixture has a tempered glass cover and a durable die-cast aluminum body. It is designed to operate on 120V circuits and provides smooth triac dimming capabilities ranging from 10% to 100%.

COLOR SELECTABLE. You can choose either a 3,000K warm white, 4,000K cool white or 5,000K daylight color temperature.

APPLICATION. The fixture is rated for Wet Locations, making it perfect for indoor and outdoor projects such as decks, front doors, porches, patios, corridors, walkways, or any other common areas.

ADVANTAGES: With a lifespan of 50,000 hours, these fixtures are made to last decades under normal operation! ASD provides a 5-year limited warranty along with ETL certification to guarantee top quality products and safety!

LED Square Outdoor Wall Cylinder With Decorative Ring

Model
PowerlmCCTCRI
LocationOperating t°
DimmingCertificateCut SheetIESUPC (GTIN-12)GTIN (14)

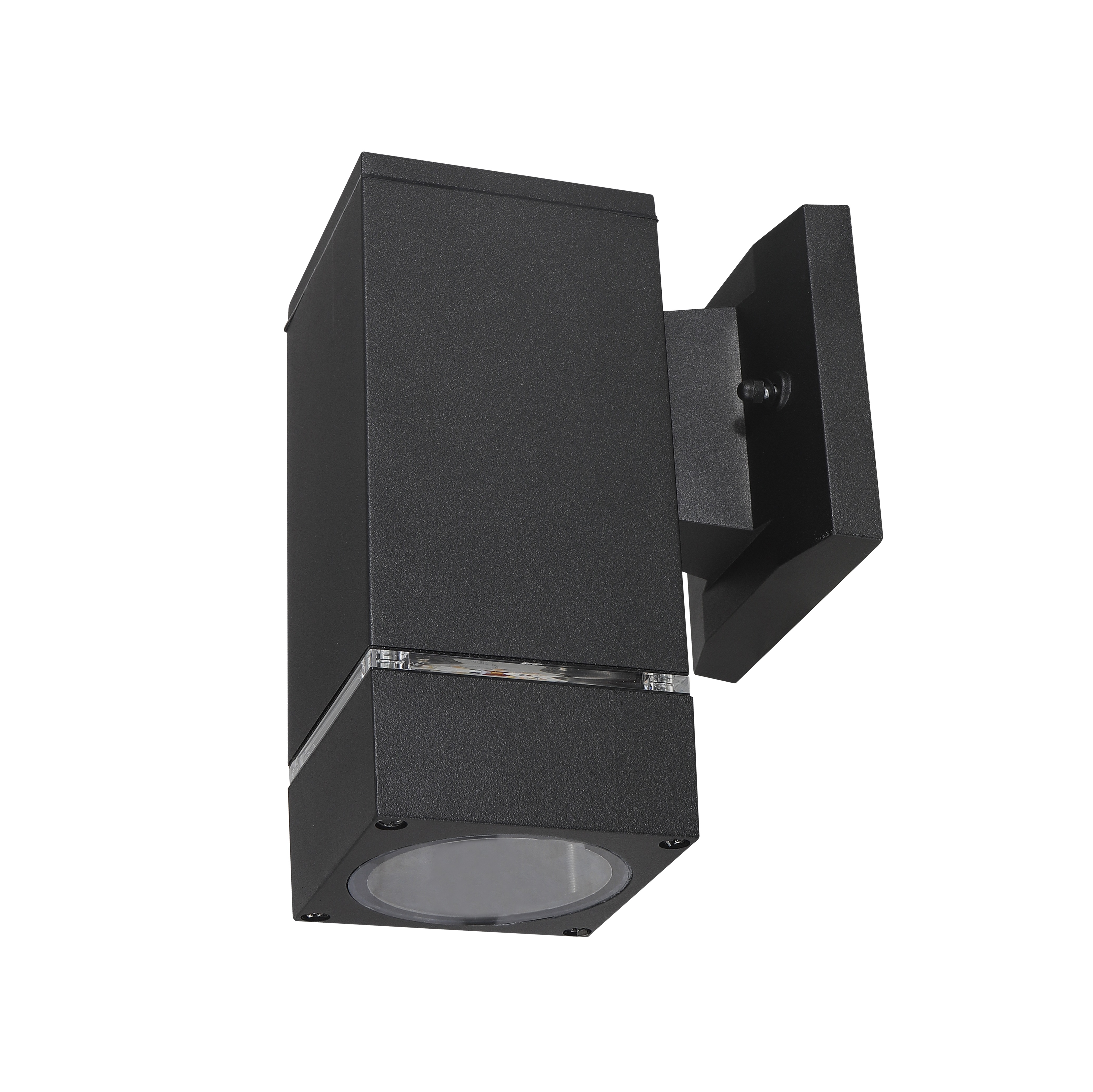

ASD-LCLS-1B-9BK120-277V9W434/502/4823,000/4,000/5,000>8056⁰4 3/85 13/167 15/16Wet-40 +113F°/-40 +45C°50,000Yes81012811819410810128118191

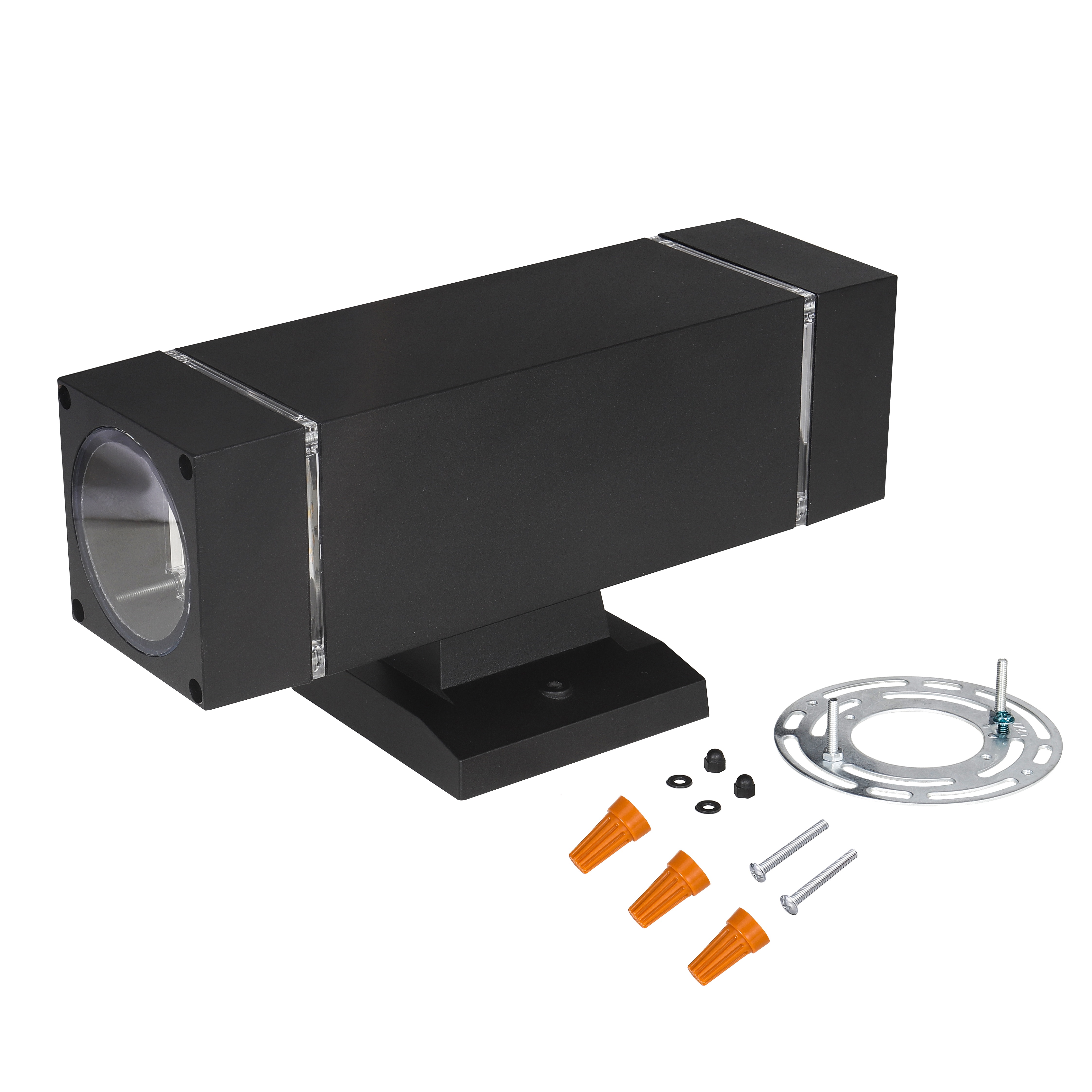

ASD-LCLS-2B-18BK120-277V18W831/962/9183,000/4,000/5,000>80360°4 3/85 13/1611 13/16Wet-40 +113F°/-40 +45C°50,000Yes81012811817010810128118177
