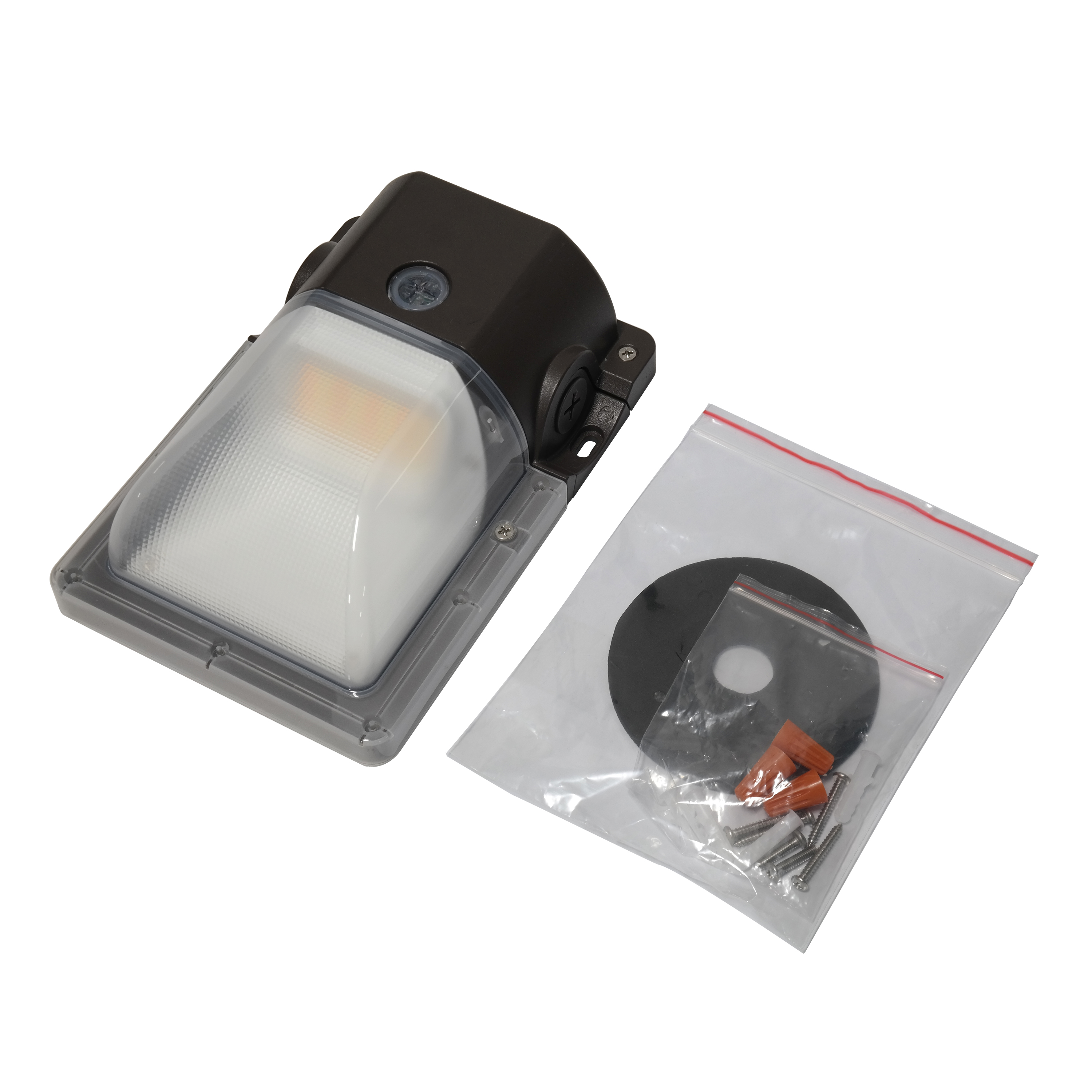

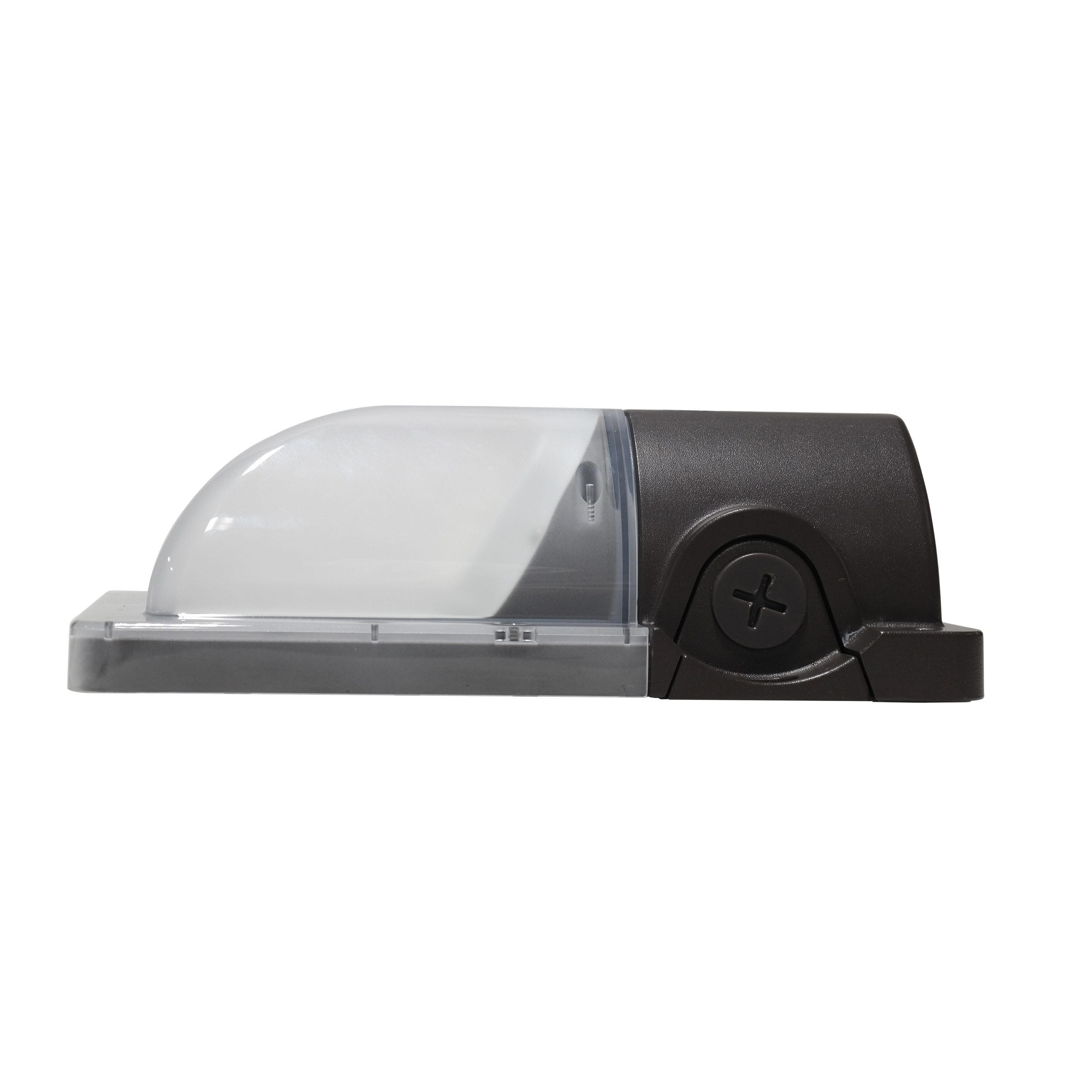

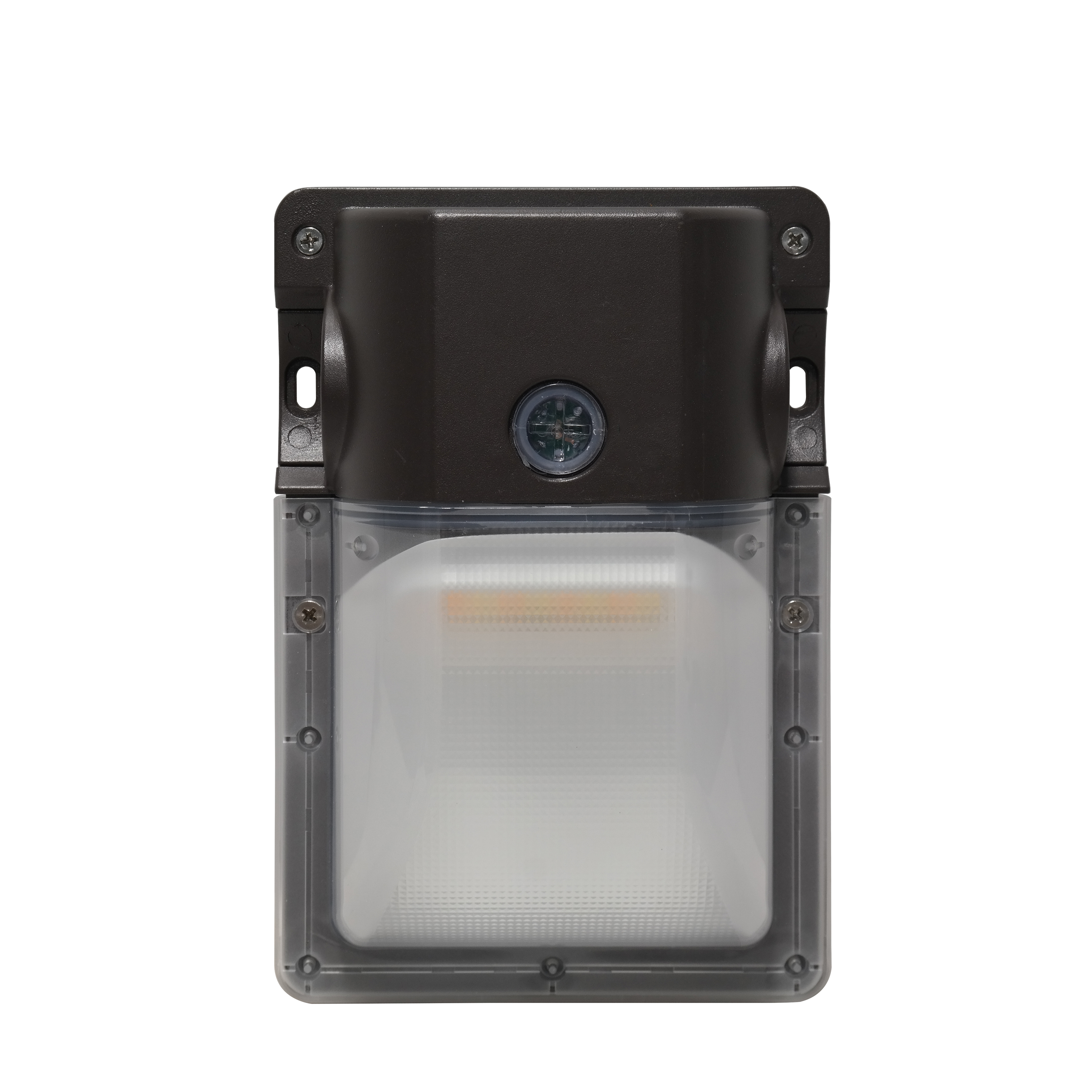

LED Security Wallpack with Photocell

DESIGN. LED SECURITY WALLPACK has a die-cast aluminum housing and anti-glare PC lens with even light distribution. It is also a Wet Locations rated.

VARIETY. The fixture  is designed to operate on 120V or 120-277V with power adjustable option.

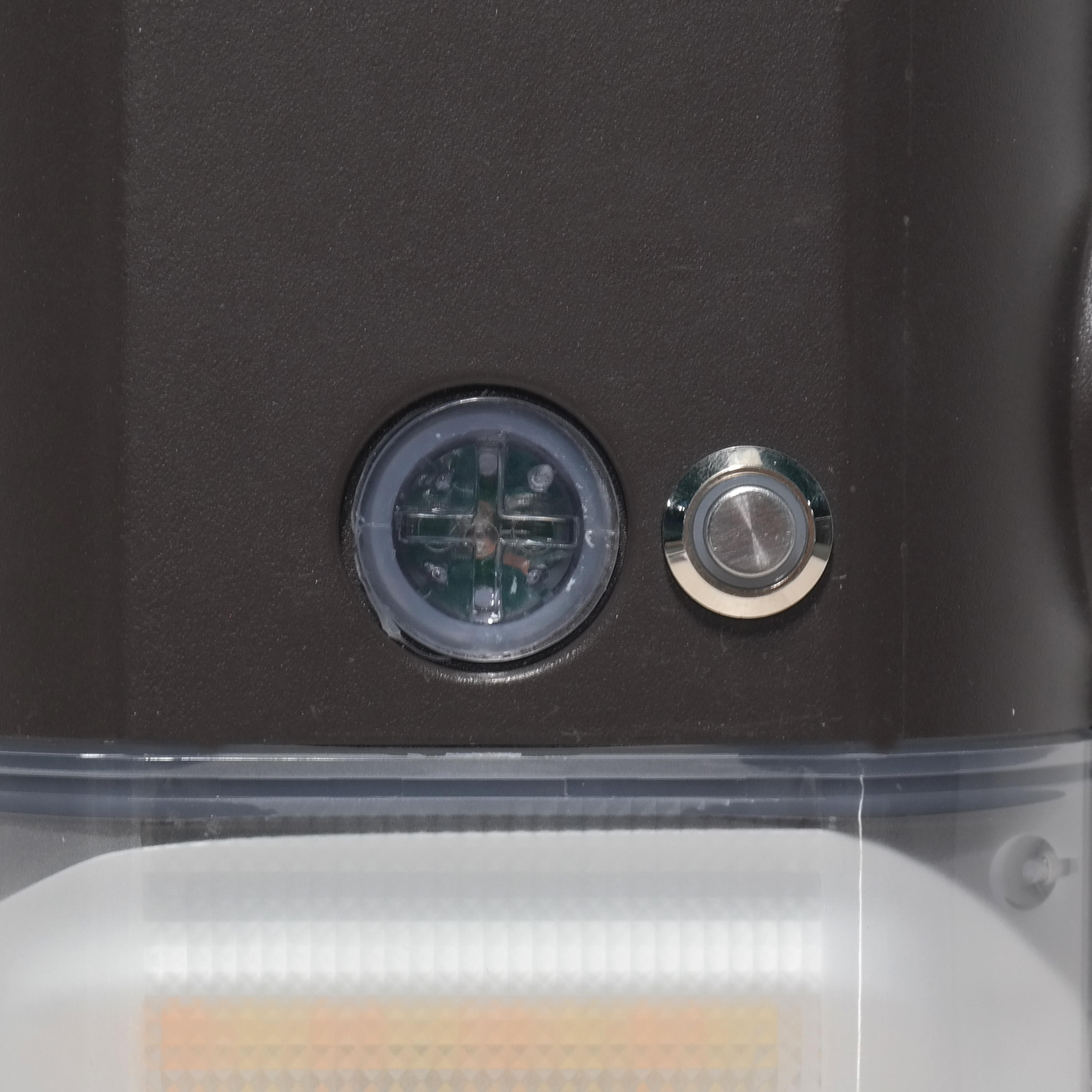

PHOTOCELL. The built-in Dusk to Dawn Photocell will automatically activate/deactivate the fixture depending on the time of day. The photocell can be disabled with on-off switch.

COLOR SELECTABLE. You can choose between 3,000 K warm white, 4,000 K cool white, and 5,000 K daylight white color temperatures,  and change the power output.

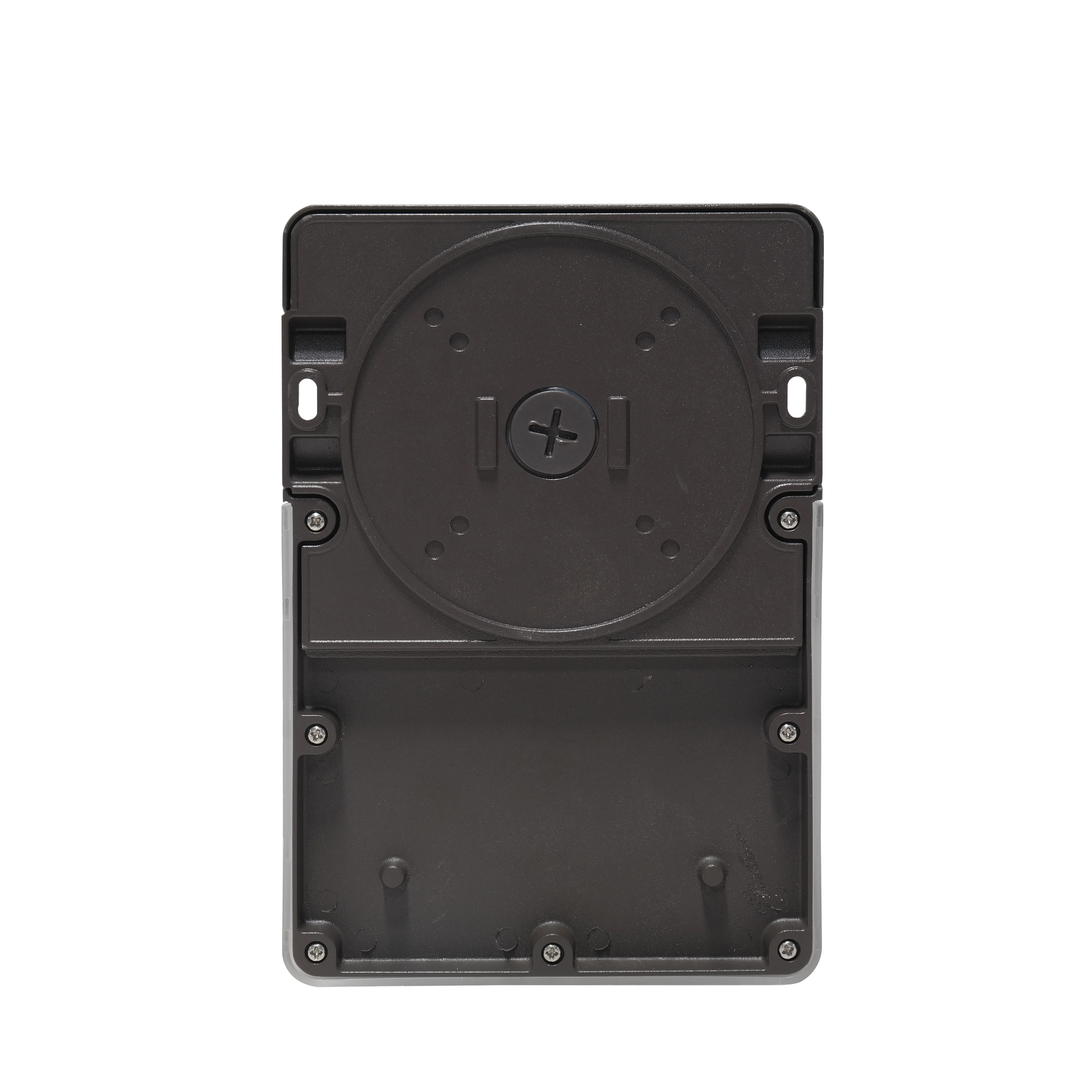

INSTALLATION: The fixture can be installed on the junction box or directly on the wall, making it an ideal commercial or industrial solution for various outdoor security lighting applications, including wall perimeter lighting, garages, storage areas, porches, entranceways, staircases, and more.

ADVANTAGES: These fixtures have a lifespan of up to 167,000 hours and are designed to last for decades under normal use. ASD provides a 5-year limited warranty, along with ETL certification, to ensure top quality and safety of its products.

MODELS WITH BATTERY BACKUP. The led security wallpack model with built-in battery backup provides 90 minutes of power in the case of an emergency.
Model
PowerlmCCTCRI
IPLocationOperating t°
DimmingDLC
version
CertificateCut SheetIESUPC (GTIN-12)GTIN (14)
ASD-SWP-28BR-PC120V28W3,147/3,403/3,2233,000/4,000/5,000>80100°8 3/85 11/162 11/16IP65Wet-40 +122F°/-40 +50C°R>102,000 C>167,000NoPremium81012811796810810128117965
ASD-SWP-MV-A28BR-PC120-277V20/24/28W2,702/3,170/3,4543,000/4,000/5,000>8090°8 3/85 11/162 11/16IP65Wet-40 +122F°/-40 +50C°R>102,000 C>167,000YesPremium81012811797510810128117972

LED Security Wallpack with Photocell and Battery back-up

Model
PowerlmCCTCRI
IPLocationOperating t°
DimmingDLC
version
CertificateCut SheetIESUPC (GTIN-12)GTIN (14)
ASD-SWP-MV-A28BR-PC-5EM120-277V20/24/28W2,702/3,170/3,4543,000/4,000/5,000>8090°8 3/85 11/162 11/16IP65Wet-40 +122F°/-40 +50C°R>102,000 C>167,000NoPremium81012811798210810128117989
