LED Round Surface Mini Panel 5CCT

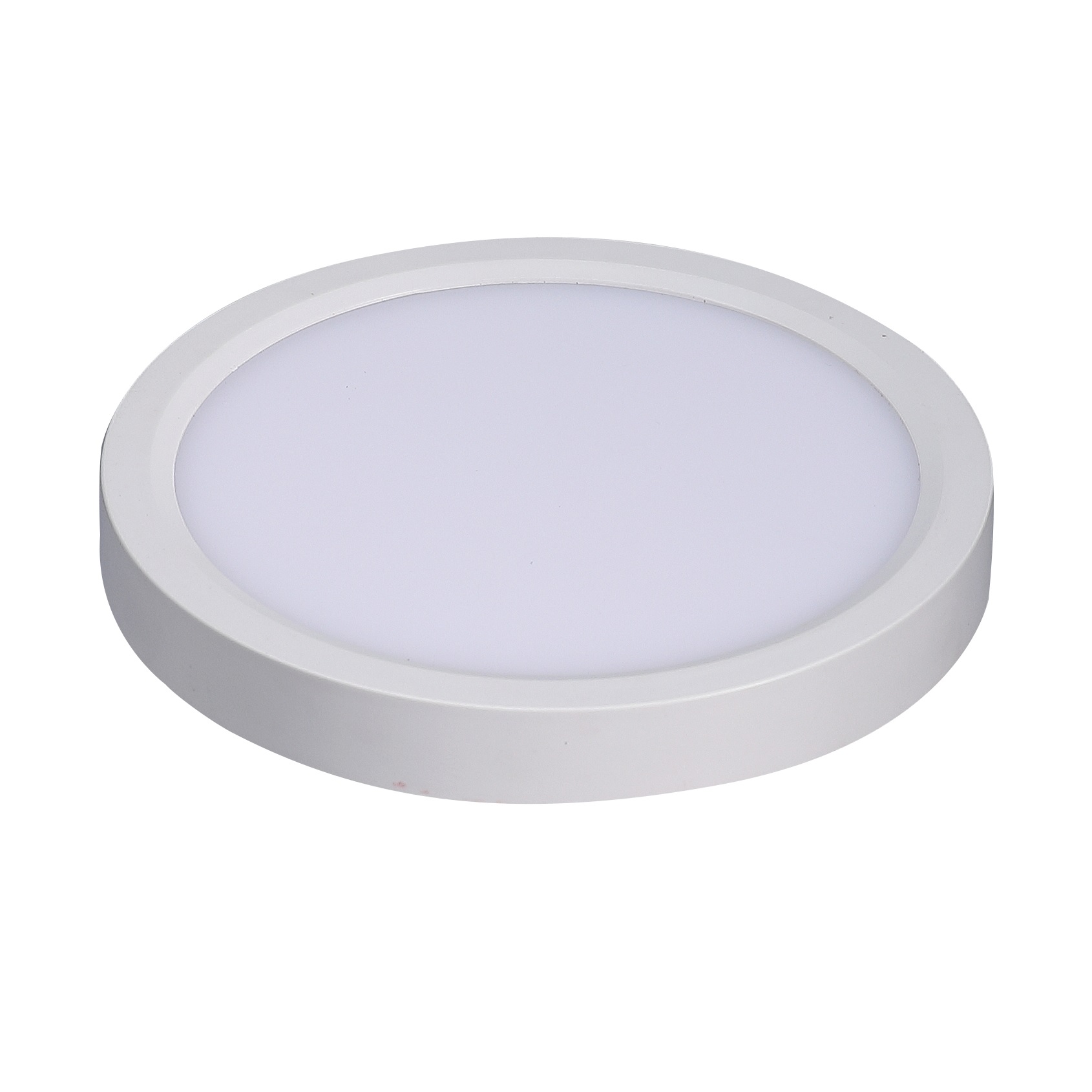

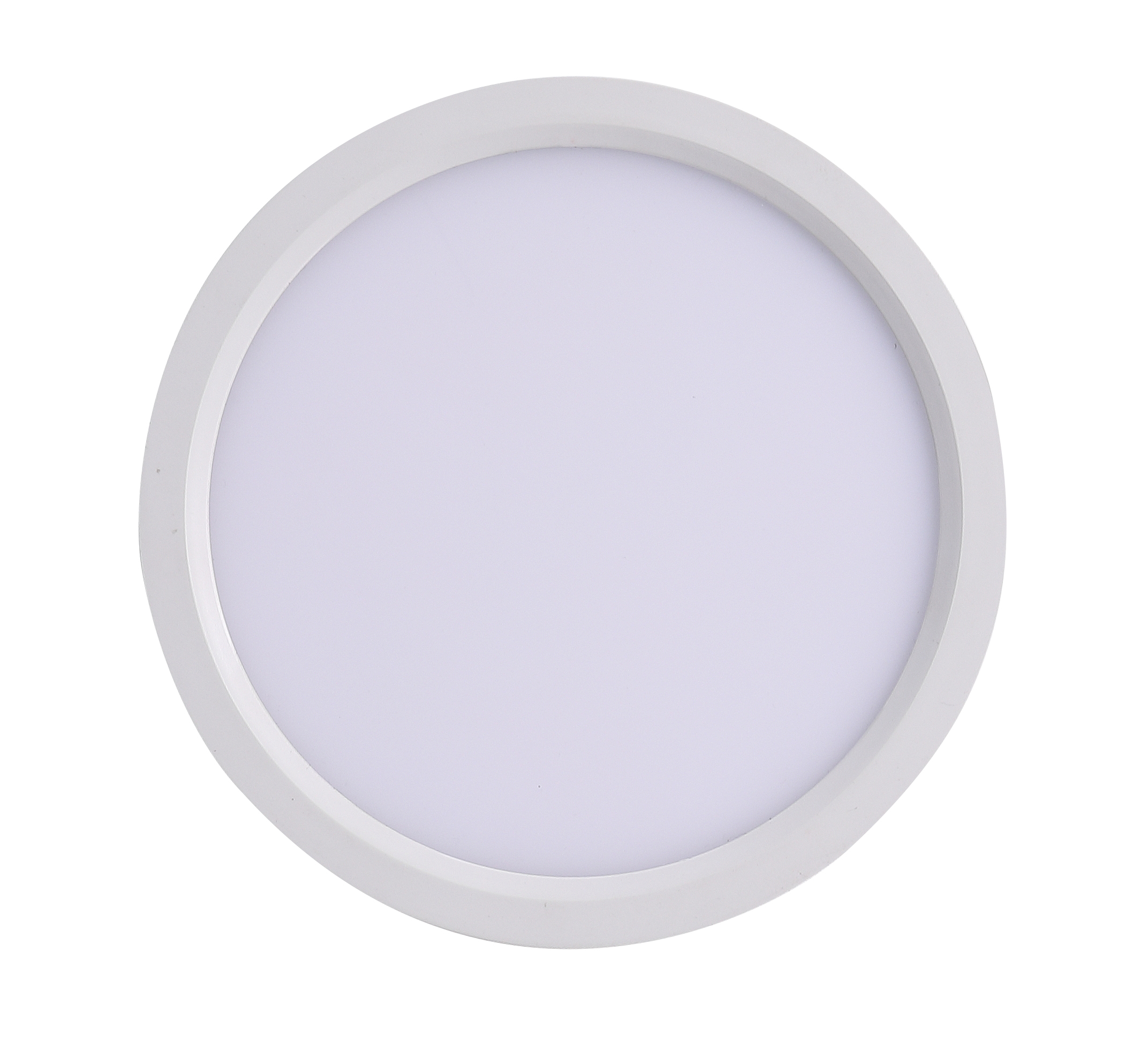

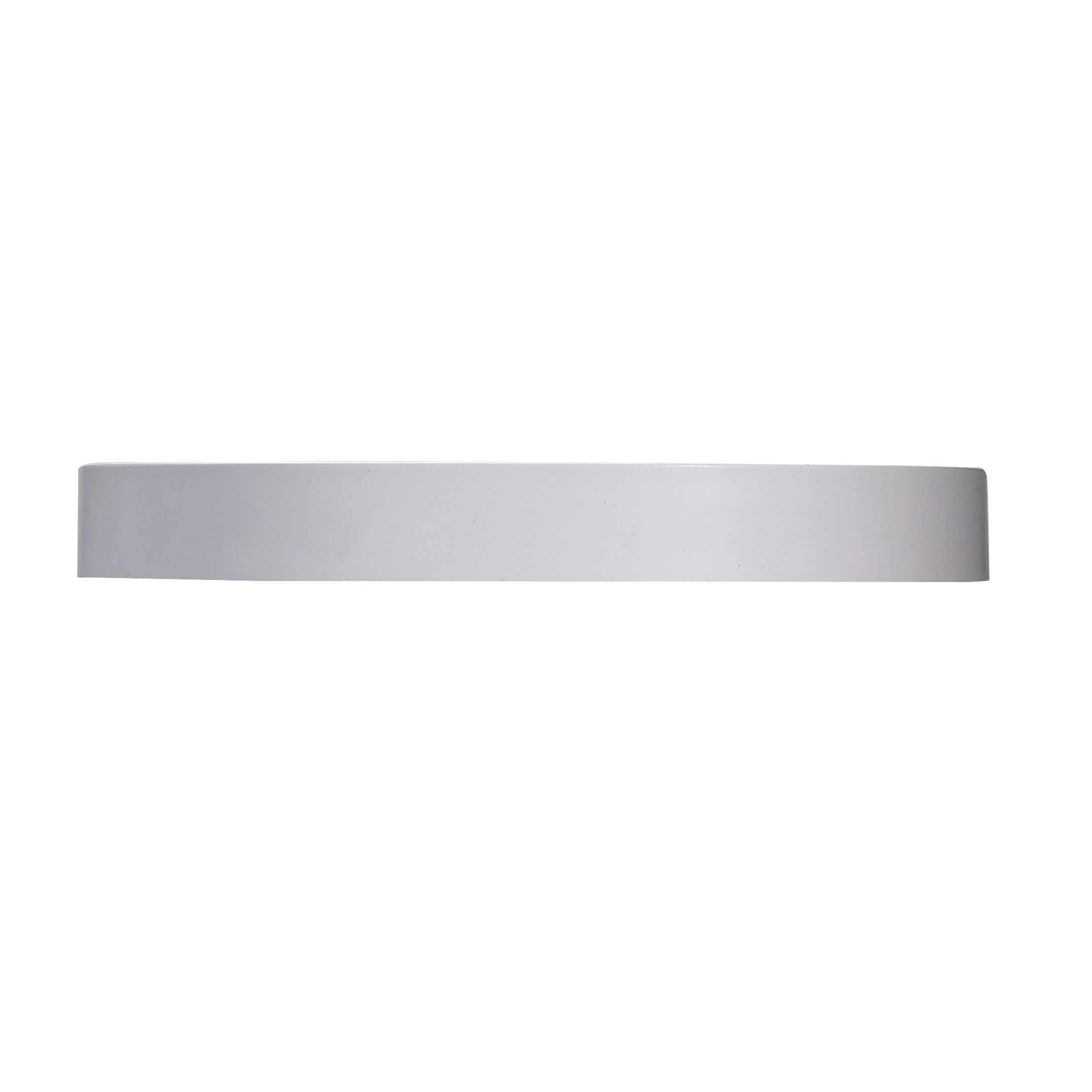

DESIGN. LED ROUND SURFACE MINI PANEL with a classic, low-profile design is an ideal solution for low ceilings. The acrylic lens with a 110° beam angle grants you even light distribution. It is designed to operate on 120V circuits.

COLOR SELECTABLE. You can choose either a 3000K warm white, 4000K cool white or 5000K daylight color temperature.

DIMMING. Smooth triac dimming capabilities ranging from 10% to 100% with modern LED dimmers allow you to control the look and feel of your space.

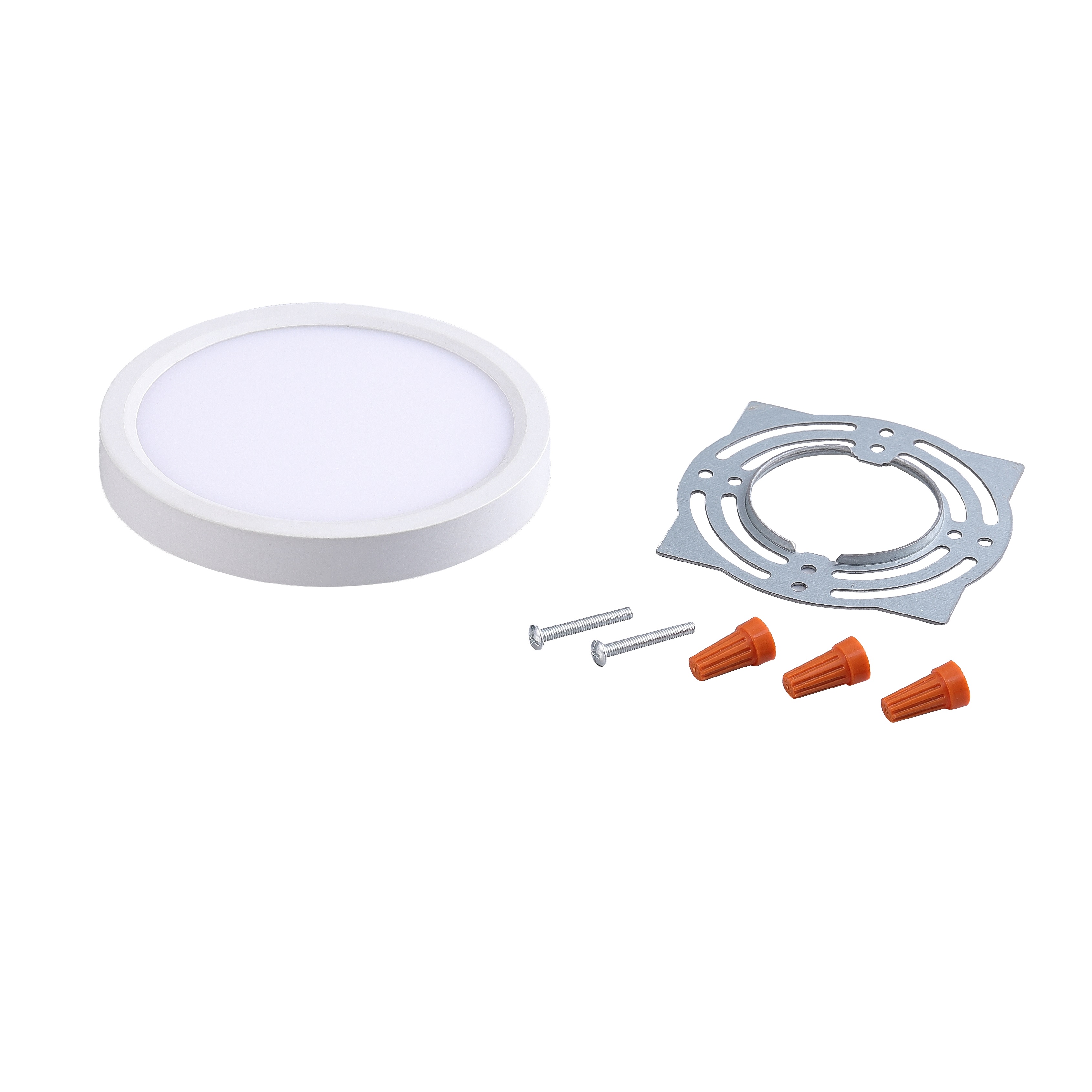

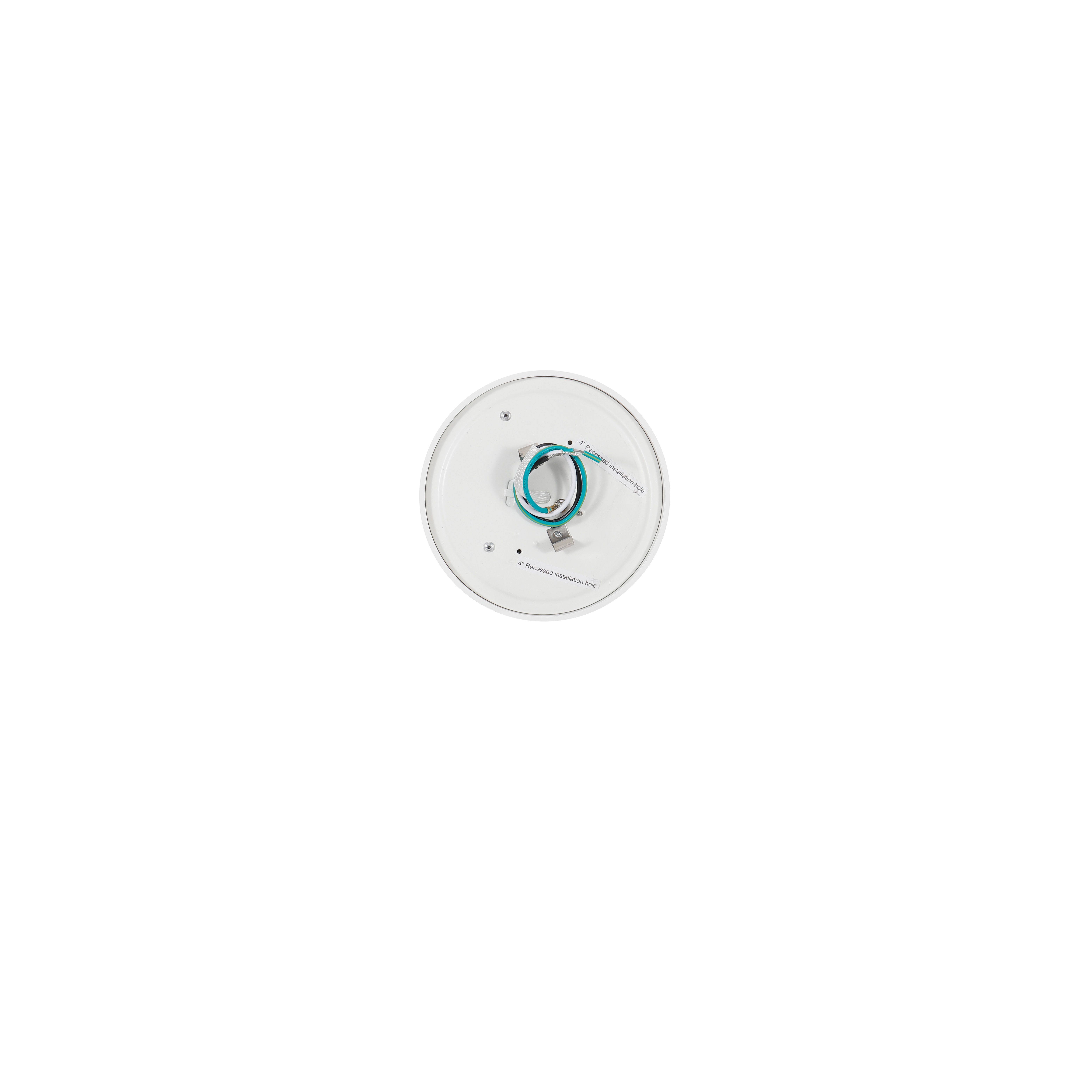

INSTALLATION. The fixture can be installed on either an existing outlet box or a remodeled can by using a retrofit kit with universal TP24 or E26 connectors. It is also suitable for Damp and Wet locations, making it perfect for family room, bedroom or any other common areas.

ADVANTAGES: With a lifespan of 50,000 hours, these fixtures are made to last decades under normal operation! ASD provides a 5-year limited warranty along with ETL certification to guarantee top quality products and safety!

Model		Shade Size	Power	lm	CCT	CRI					Location	Operating t°		Dimming	UPC (GTIN-12)	GTIN (14)
ASD-MPR-12D24NK	120V	12"	24W	2,004/2,145/2,040/2,126/2,025	2,700/3,000/4,000/5,000/6,000	>80	110°	11 13/16	11 13/16	1	Wet	-4 +113F°/-20 +45C°	50,000	Yes	810128118972	10810128118979
ASD-MPR-9D18NK	120V	9"	18W	1,437/1,524/1,664/1,661/1,624	2,700/3,000/4,000/5,000/6,000	>80	110°	8 7/8	8 7/8	1 3/4	Wet	-4 +113F°/-20 +45C°	50,000	Yes	810128118965	10810128118962
ASD-MPR-7D15NK	120V	7"	15W	1,188/1,254/1,262/1,184/1,089	2,700/3,000/4,000/5,000/6,000	>80	110°	7 1/16	7 1/16	1	Wet	-4 +113F°/-20 +45C°	50,000	Yes	810128118958	10810128118955
ASD-MPR-MV-12D24WH	120-277V	12"	24W	1,962/1,970/2,005/2,045/2,069	2,700/3,000/4,000/5,000/6,000	>80	113°	11 15/16	11 15/16	1	Damp	-4 +113F°/-20 +45C°	30,000	Yes	810128117722	10810128117729
ASD-MPR-MV-12D24BK	120-277V	12"	24W	1,962/1,970/2,005/2,045/2,069	2,700/3,000/4,000/5,000/6,000	>80	113°	11 15/16	11 15/16	1	Damp	-4 +113F°/-20 +45C°	30,000	Yes	810128117715	10810128117712
ASD-MPR-12D24WH	120V	12"	24W	2,004/2,145/2,040/2,126/2,025	2,700/3,000/3,500/4,000/5,000	>80	110°	11 13/16	11 13/16	1	Wet	-4 +113F°/-20 +45C°	50,000	Yes	810128117166	10810128117163
ASD-MPR-12D24BK	120V	12"	24W	2,004/2,145/2,040/2,126/2,025	2,700/3,000/3,500/4,000/5,000	>80	110°	11 13/16	11 13/16	1	Wet	-4 +113F°/-20 +45C°	50,000	Yes	810128117159	10810128117156
ASD-MPR-9D18WH	120V	9"	18W	1,437/1,524/1,664/1,661/1,624	2,700/3,000/3,500/4,000/5,000	>80	110°	8 7/8	8 7/8	1 3/4	Wet	-4 +113F°/-20 +45C°	50,000	Yes	810128117142	10810128117149
ASD-MPR-9D18BK	120V	9"	18W	1,437/1,524/1,664/1,661/1,624	2,700/3,000/3,500/4,000/5,000	>80	110°	8 7/8	8 7/8	1 3/4	Wet	-4 +113F°/-20 +45C°	50,000	Yes	810128117135	10810128117132
ASD-MPR-7D15BK	120V	7"	15W	1,188/1,254/1,262/1,184/1,089	2,700/3,000/3,500/4,000/5,000	>80	110°	7 1/16	7 1/16	1	Wet	-4 +113F°/-20 +45C°	50,000	Yes	810128117111	10810128117118
ASD-MPR-32D45WH	120-277V	32"	45W	3,689/3,811/3,902/3,843/3,768	2,700/3,000/4,000/5,000/6,000	>90	115°	31 15/16	31 15/16	1 3/16	Wet	-4 +104F°/-20 +40C°	50,000	Yes	810128117371	10810128117378
ASD-MPR-24D38WH	120-277V	24"	38W	2,437/2,644/2,760/2,740/2,631	2,700/3,000/4,000/5,000/6,000	>90	115°	24	24	1 3/16	Wet	-4 +104F°/-20 +40C°	50,000	Yes	810128117364	10810128117361
ASD-MPR-18D32WH	120-277V	18"	32W	2,343/2,657/2,687/2,625/2,597	2,700/3,000/4,000/5,000/6,000	>90	115°	17 15/16	17 15/16	1 3/16	Wet	-4 +104F°/-20 +40C°	50,000	Yes	810128117296	10810128117293
ASD-MPR-15D28WH	120-277V	15"	28W	2,050/2,246/2,346/2,373/2,295	2,700/3,000/4,000/5,000/6,000	>90	115°	14 15/16	14 15/16	1 3/16	Wet	-4 +104F°/-20 +40C°	50,000	Yes	810128117128	10810128117125
ASD-MPR-5D10BK	120V	5"	10W	598/626/670/692/683	2,700/3,000/4,000/5,000/6,000	>80	110°	5 5/16	5 5/16	1	Wet	-4 +113F°/-20 +45C°	50,000	Yes	810128116282	10810128116289
ASD-MPR-5D10WH	120V	5"	10W	598/626/670/692/683	2,700/3,000/4,000/5,000/6,000	>80	110°	5 5/16	5 5/16	1	Wet	-4+113°F / -20+45°C	50,000	Yes	810128116299	10810128116296

LED Round Surface Mini Panel

Model		Shade Size	Power	lm	CCT	CRI					Location	Operating t°		Dimming	Certificate	Cut Sheet	IES	UPC (GTIN-12)	GTIN (14)
ASD-MPR-7D15WH	120V	7"	15W	1,188/1,254/1,262/1,184/1,089	2,700/3,000/4,000/5,000/6,000	>80	110°	7 1/16	7 1/16	1	Wet	-4 +113F°/-20 +45C°	50,000	Yes				810128115117	10810128115114
