LED Linear High Bay with Q-base Series WHB5B-PRO

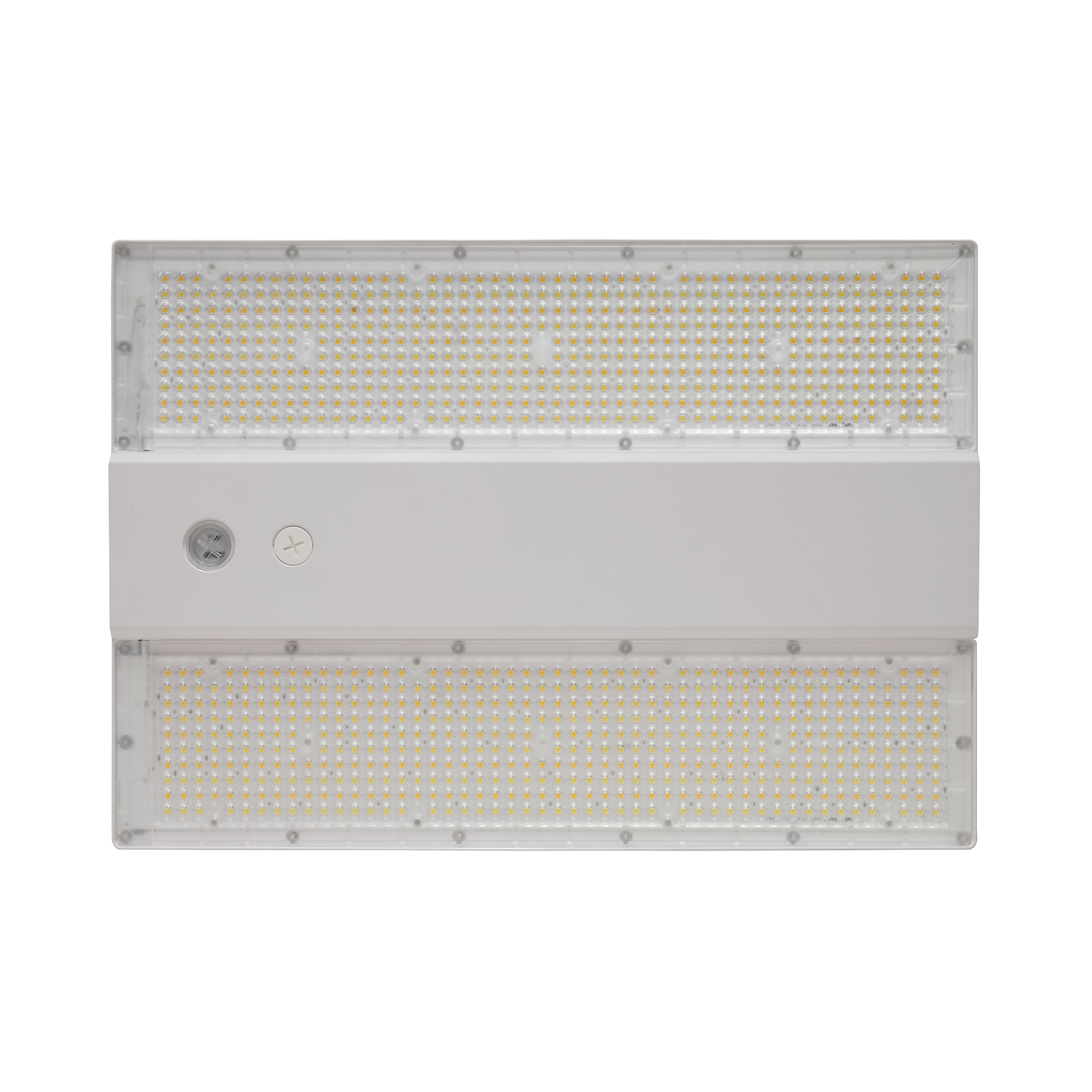

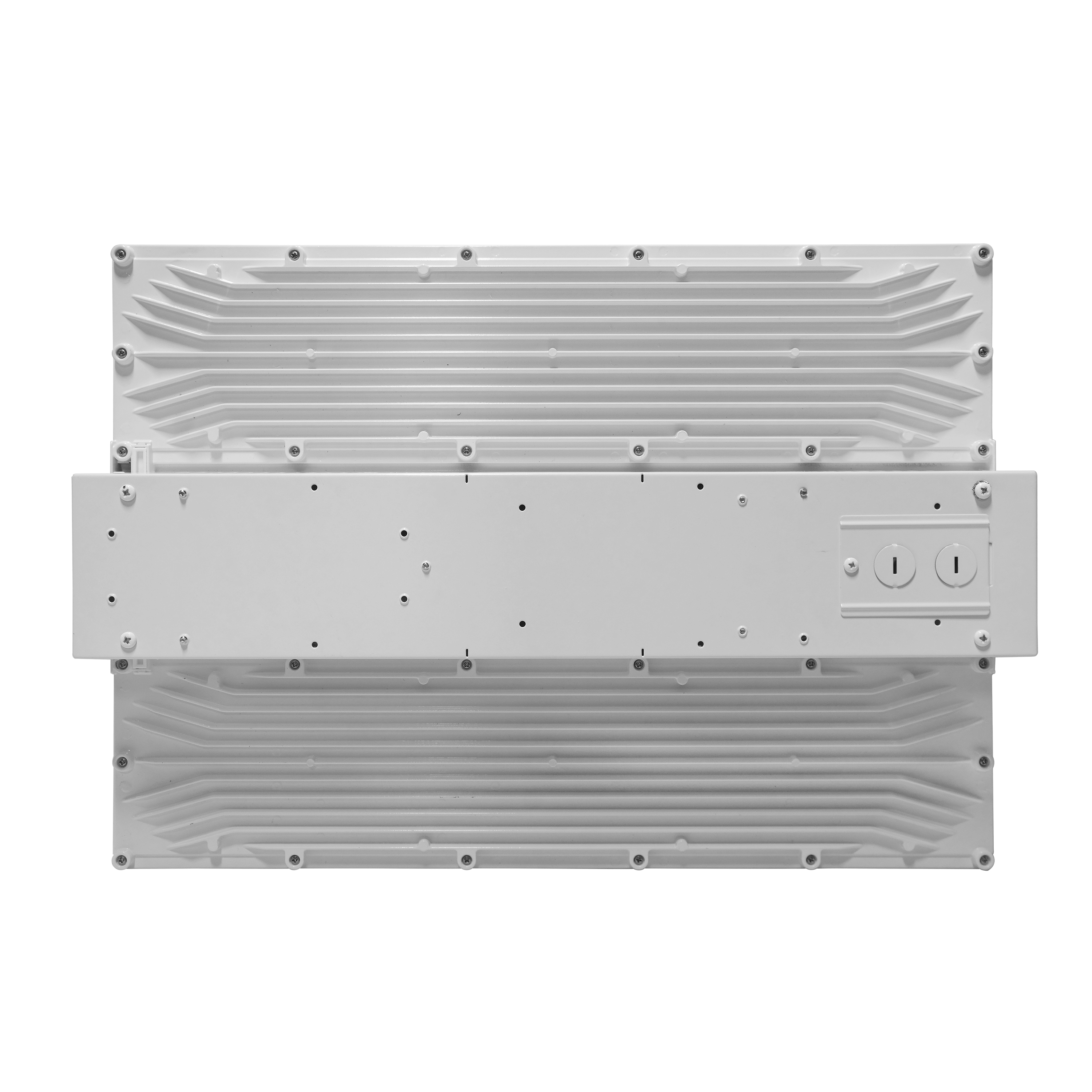

DESIGN - LED LINEAR HIGH BAY WITH Q-BASE is extremely efficient with up to 170lm/W output. It has a built-in motion sensor base, allowing you to install the microwave motion or PIR sensor. Die-cast aluminum housing with excellent heat dissipation along with an anti-glare PC lens provide many years of use. It is designed to operate on 120-277V or 277-480V circuits with a 0-10V dimmable driver.

SURGE PROTECTION - 6kV protects the fixture from voltage spikes and current surges.

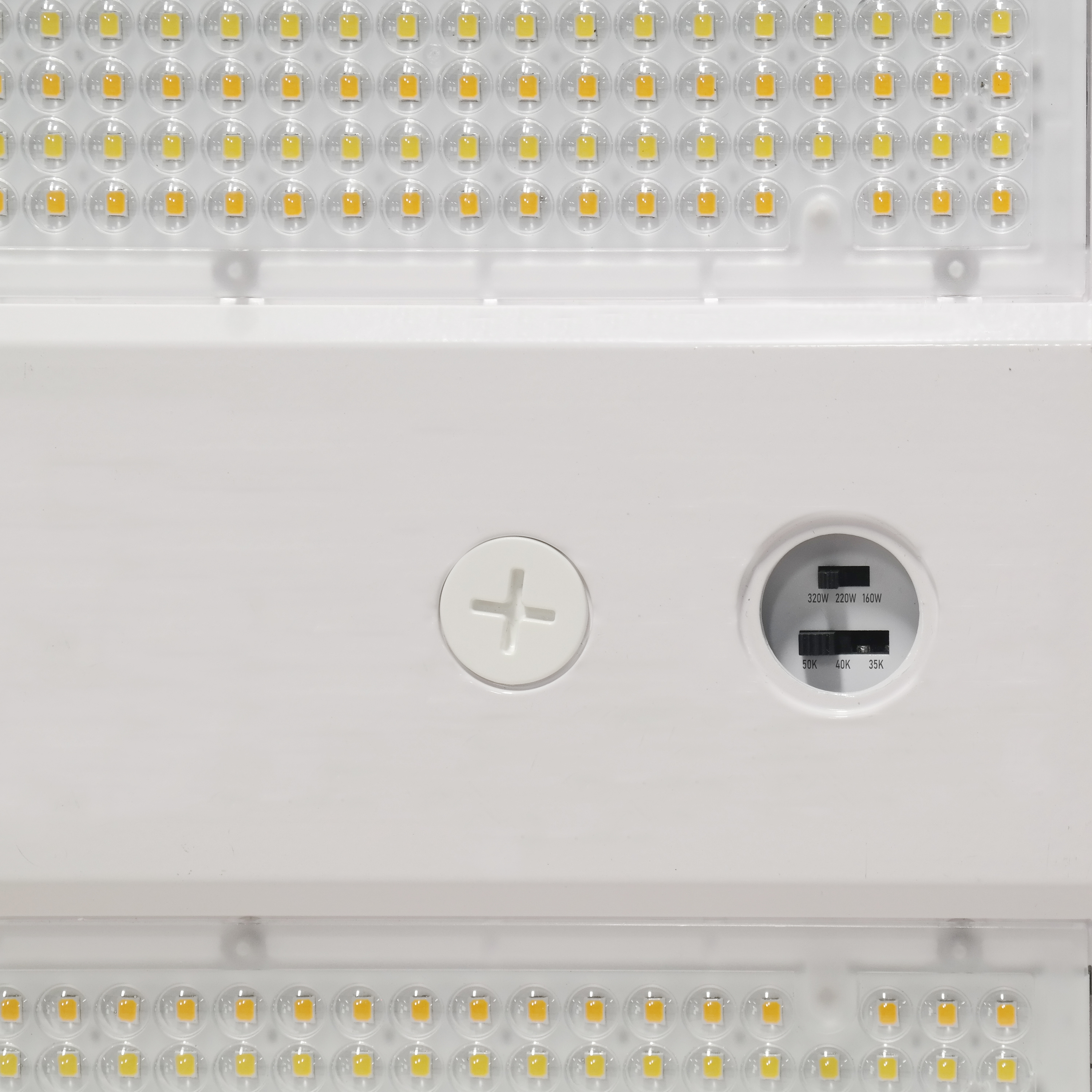

COLOR AND POWER SELECTABLE - You can choose either a 3,500K neutral white, 4,000K cool white or 5,000K daylight color temperature, and change the power with a simple switch.

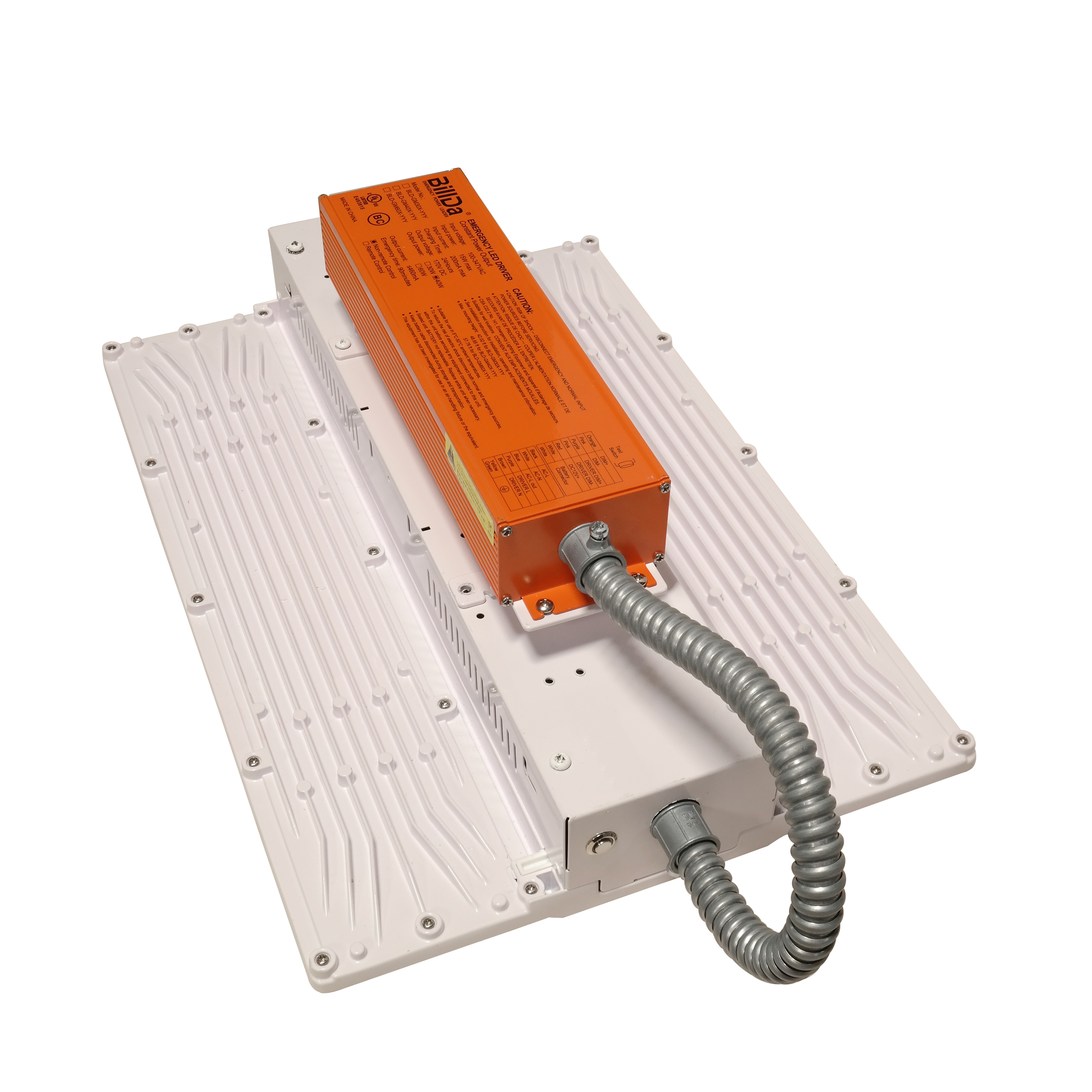

BATTERY BACK-UP - The built-in battery back-up provides 90 minutes of power in case of emergency.

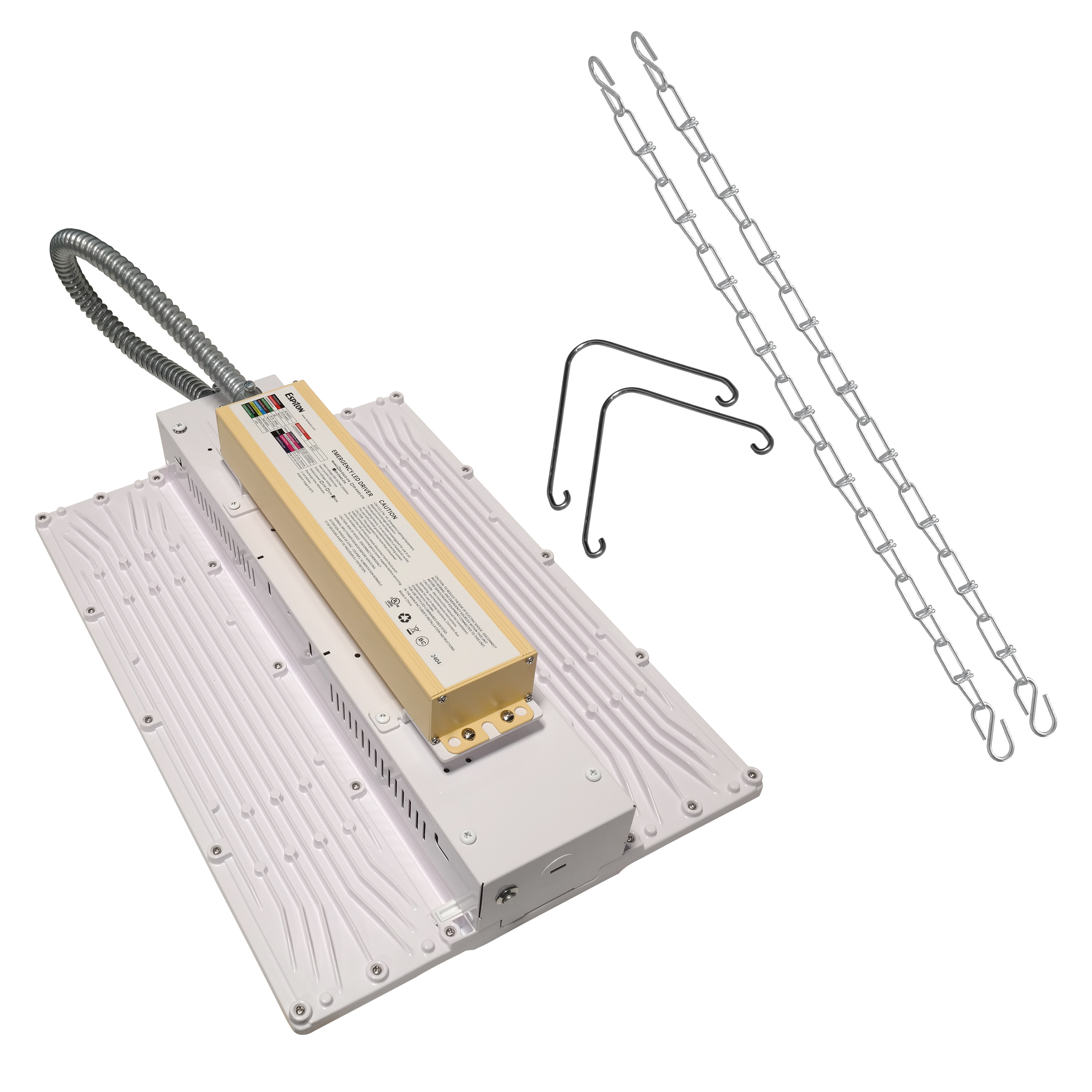

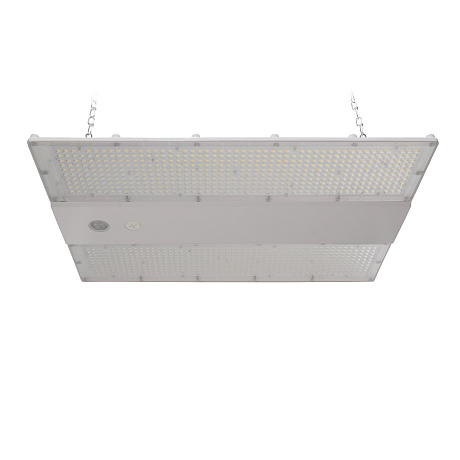

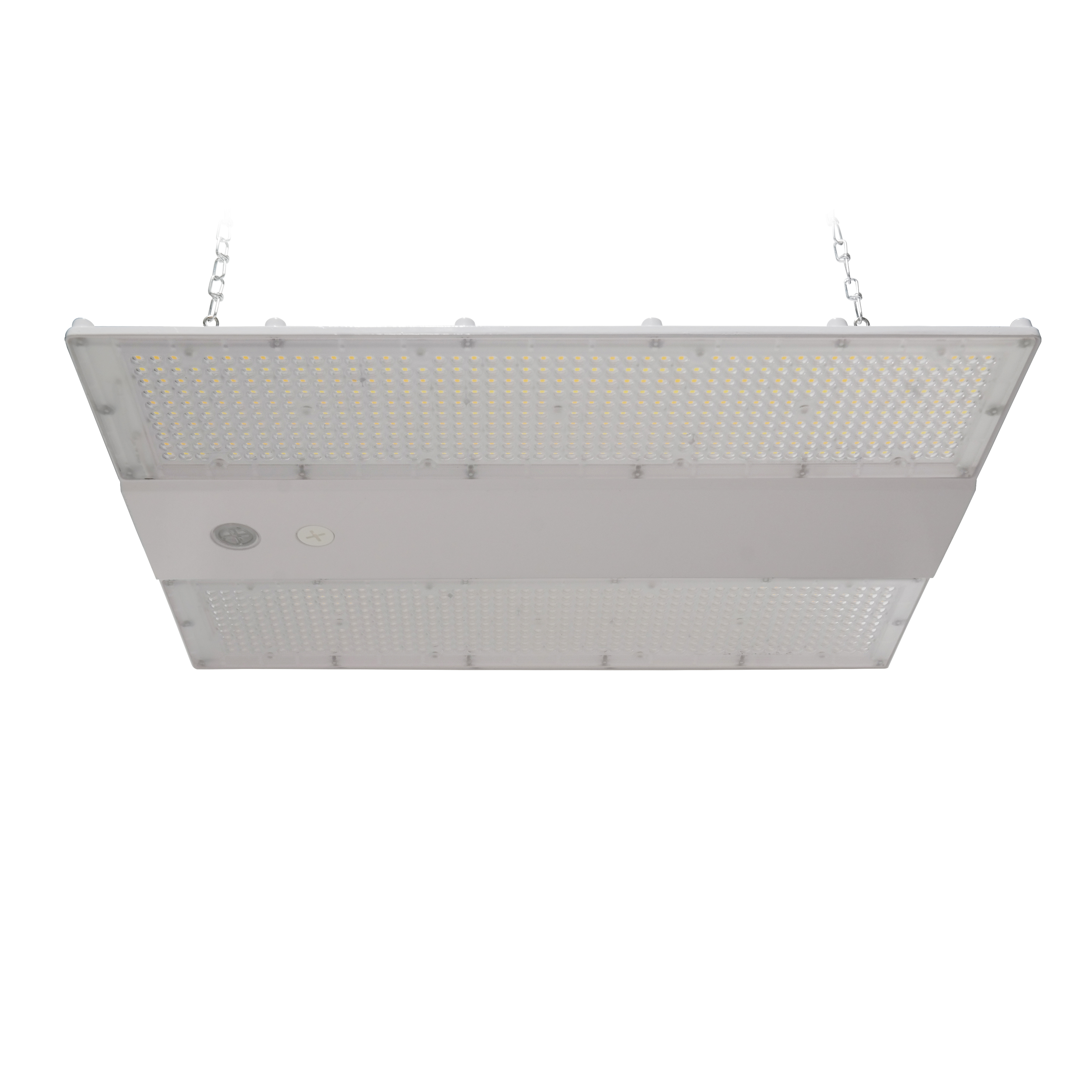

INSTALLATION - This fixture has three different mounting options: suspended, surface, and pendant.

APPLICATION - Perfect commercial or industrial solution for warehouses, supermarkets, retail stores, gyms, and many other applications. This fixture has IK10 level impact protection and is also Damp Locations rated.

ADVANTAGES - With calculated lifespan up to 167,000 hours, these fixtures are made to last decades under normal operation! ASD provides a 5-year limited warranty along with UL and DLC Premium certifications to guarantee top quality products and safety!

LED Linear High Bay with Q-base with Battery back-up

Model		Power	lm	CCT	CRI					Location	Operating t°		Dimming	DLC version	UPC (GTIN-12)
ASD-WHB5B-PRO-320-40EM	120-277V	160/220/320W	52,194	3,500/4,000/5,000	>80	90°	20 1/2	14 7/16	5 7/8	Damp	-40 +122F°/-40 +50C°	R>102,000 C<167,000	Yes	Premium	810128117999
ASD-WHB5B-PRO-220-40EM	120-277V	130/160/220W	24,320/28,470/36,274	3,500/4,000/5,000	>80	90°	17 11/16	12 7/16	5 9/16	Damp	-40 +122F°/-40 +50C°	R>102,000 C>167,000	Yes	Premium	810128116862
ASD-WHB5B-PRO-160-40EM	120-277V	100/130/160W	18,099/21,816/25,522	3,500/4,000/5,000	>80	90°	14 15/16	9 13/16	5 9/16	Damp	-40 +122F°/-40 +50C°	R>102,000 C>167,000	Yes	Premium	810128116855

LED Linear High Bay with Q-base High Voltage

Model		Power	lm	CCT	CRI					Location	Operating t°		Dimming	DLC version	Certificate	Cut Sheet	UPC (GTIN-12)
ASD-WHB5BHV-PRO-320	277-480V	160/220/320W	29,516/38,197/51,322	3,500/4,000/5,000	>80	90°	20 1/2	14 7/16	3 1/4	Damp	-40 +122F°/-40 +50C°	R>102,000 C>167,000	Yes	Premium			810128116848
ASD-WHB5BHV-PRO-220	277-480V	130/160/220W	23,458/27,963/36,031	3,500/4,000/5,000	>80	90°	17 11/16	12 7/16	2 15/16	Damp	-40 +122F°/-40 +50C°	R>102,000 C>167,000	Yes	Premium			810128116831

LED Linear High Bay with Q-base

Model		Power	lm	CCT	CRI					Location	Operating t°		Dimming	DLC version	UPC (GTIN-12)
ASD-WHB5B-PRO-100	120-277V	60/80/100W	10,761/13,600/16,366	3,500/4,000/5,000	>80	90°	14 15/16	9 13/16	2 15/16	Damp	-40 +122F°/-40 +50C°	R>102,000 C>167,000	Yes	Premium	810128116824
ASD-WHB5B-PRO-500	120-277V	320/400/500W	55,036/65,166/76,668	3,500/4,000/5,000	>80	90°	35 1/2	12 7/16	2 15/16	Damp	-40 +122F°/-40 +50C°	R>102,000 C>167,000	Yes	Premium	810128116589
ASD-WHB5B-PRO-220	120-277V	130/160/220W	24,320/28,470/36,274	3,500/4,000/5,000	>80	90°	17 11/16	12 7/16	2 15/16	Damp	-40 +122F°/-40 +50C°	R>102,000 C>167,000	Yes	Premium	810128116558
ASD-WHB5B-PRO-160	120-277V	100/130/160W	18,099/21,816/25,522	3,500/4,000/5,000	>80	90°	14 15/16	9 13/16	2 15/16	Damp	-40 +122F°/-40 +50C°	R>102,000 C>167,000	Yes	Premium	810128116541
ASD-WHB5B-PRO-320	120-277V	160/220/320W	29,927/39,485/52,194	3,500/4,000/5,000	>80	90°	20 1/2	14 7/16	3 1/4	Damp	-40 +122F°/-40 +50C°	R>102,000 C<167,000	Yes	Premium	810128116572
