LED Linear High Bay with Q-base Series WHB5A CCT/Wattage Dip switch

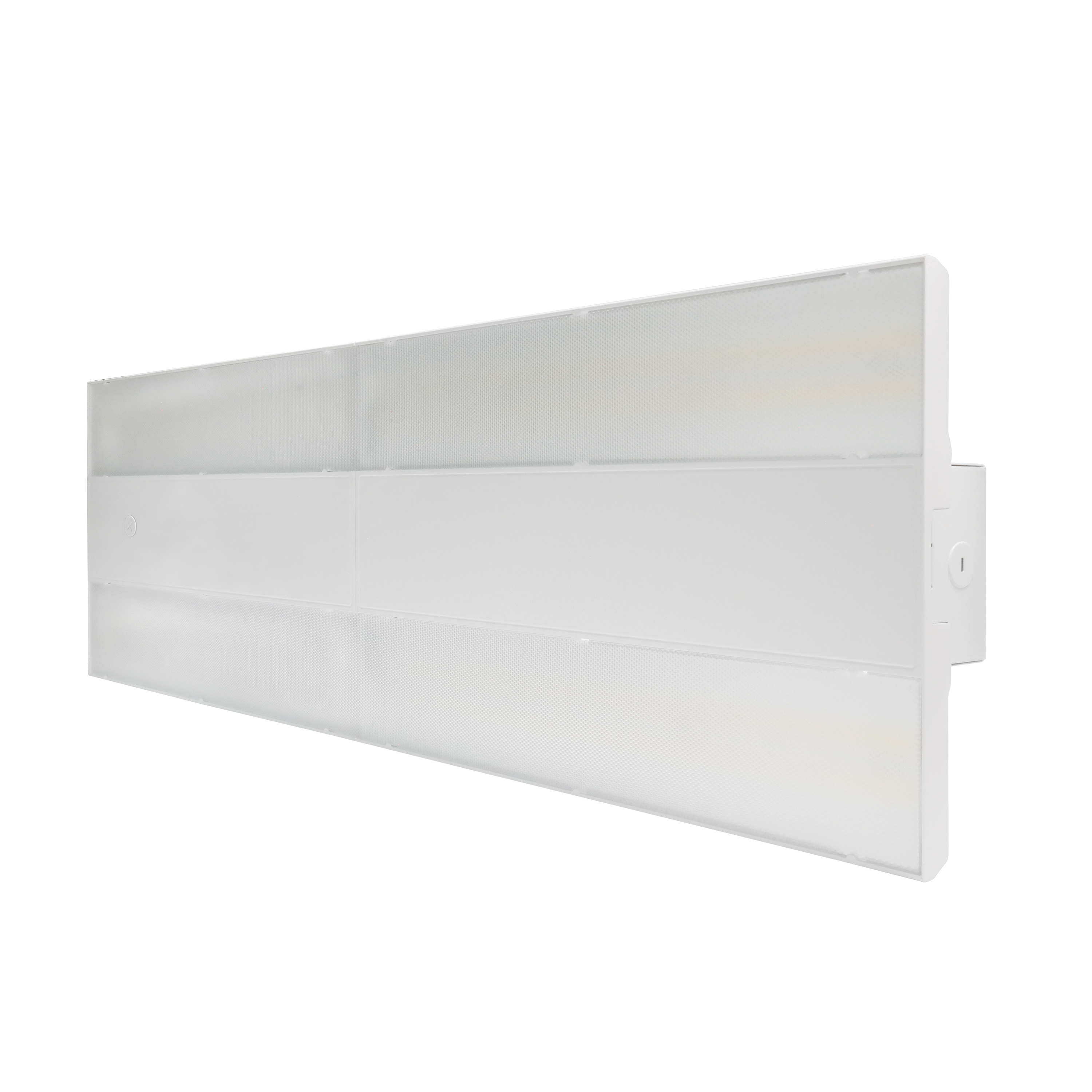

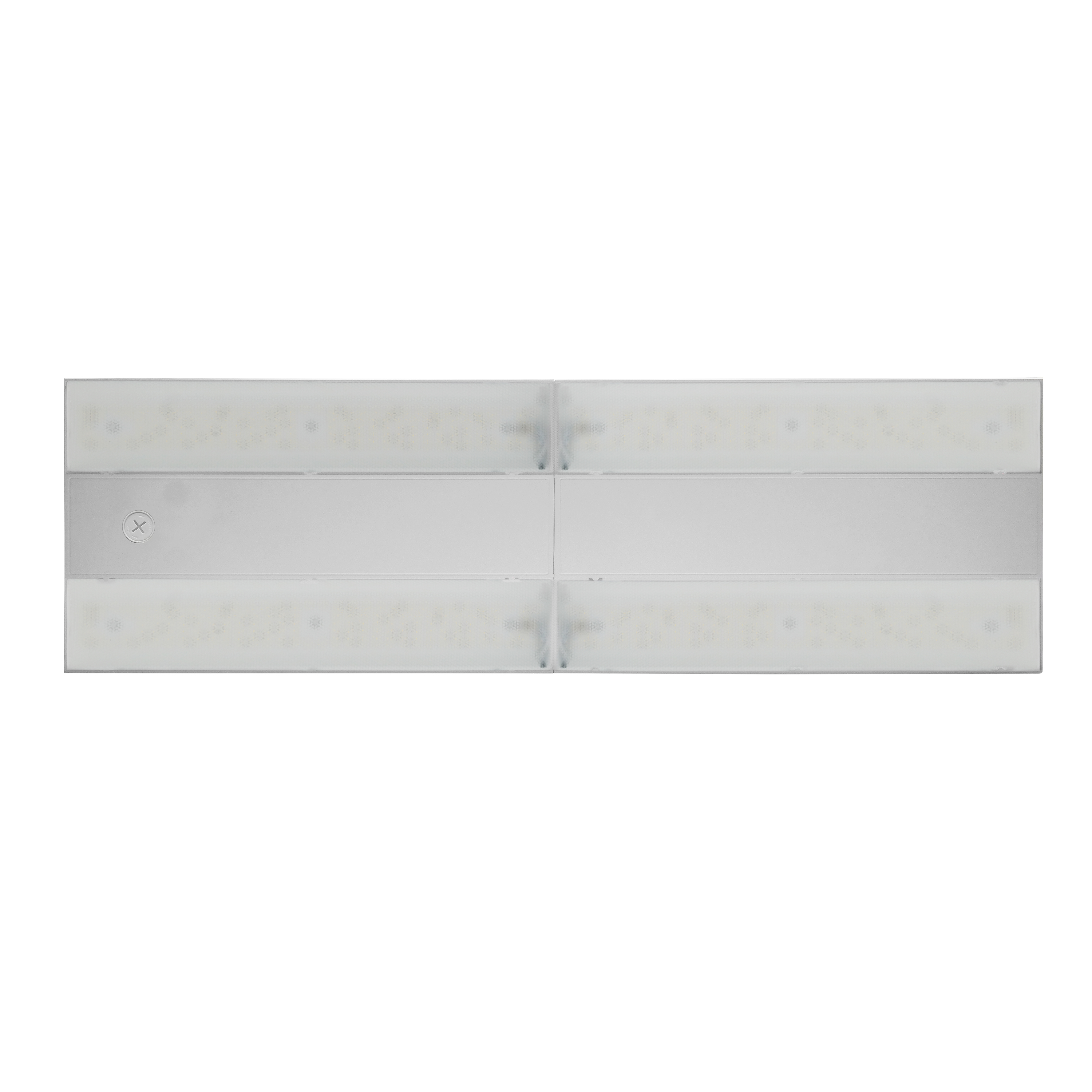

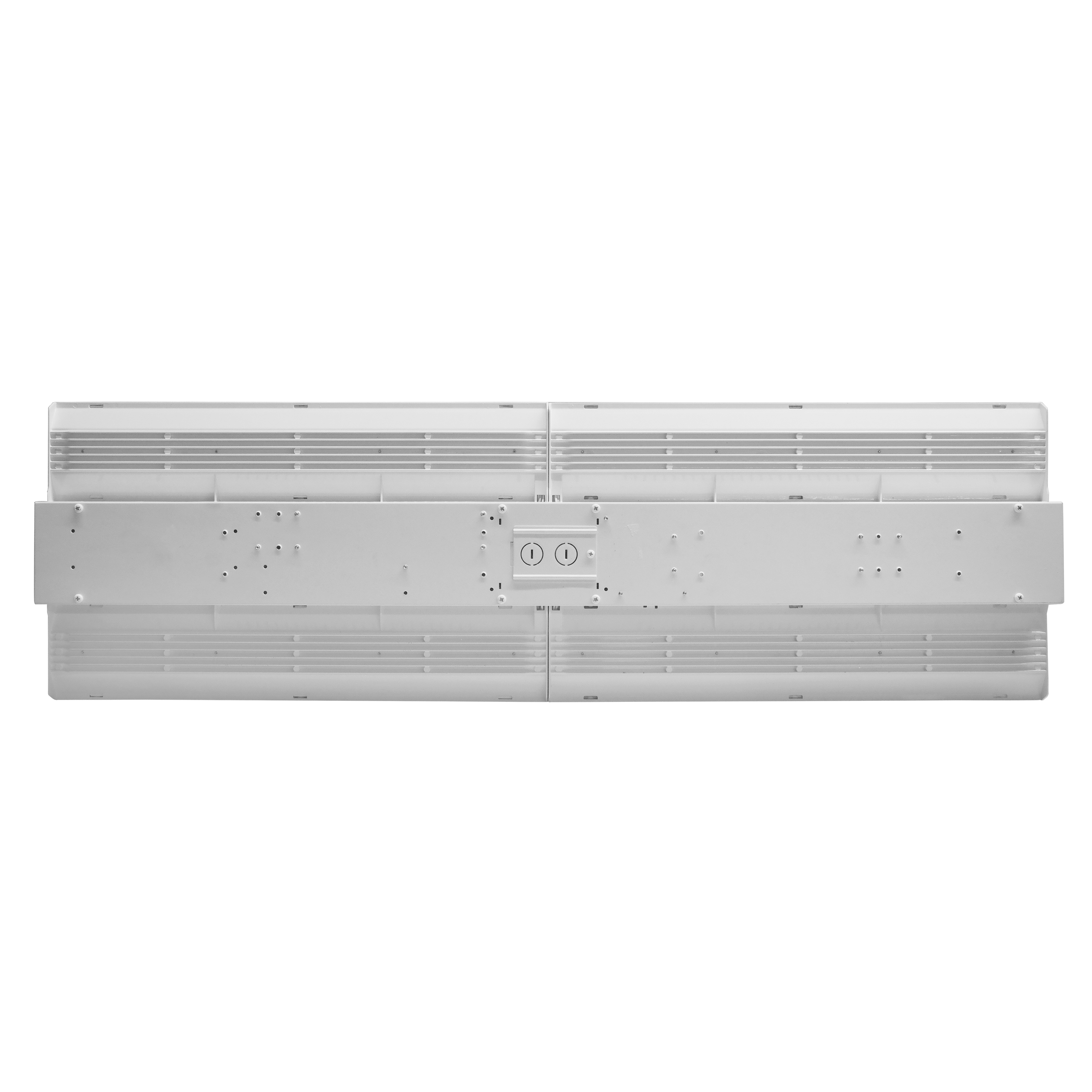

DESIGN. Q-BASE LED LINEAR HIGH BAY has a built-in motion sensor base, allowing you to install the microwave motion or PIR sensor. Die-cast aluminum housing with excellent heat dissipation along with an anti-glare PC lens provide many years of use. It is designed to operate on 120-277V circuits with a 0-10V dimmable driver.

Surge protection 6kV protects the fixture from voltage spikes and current surges.

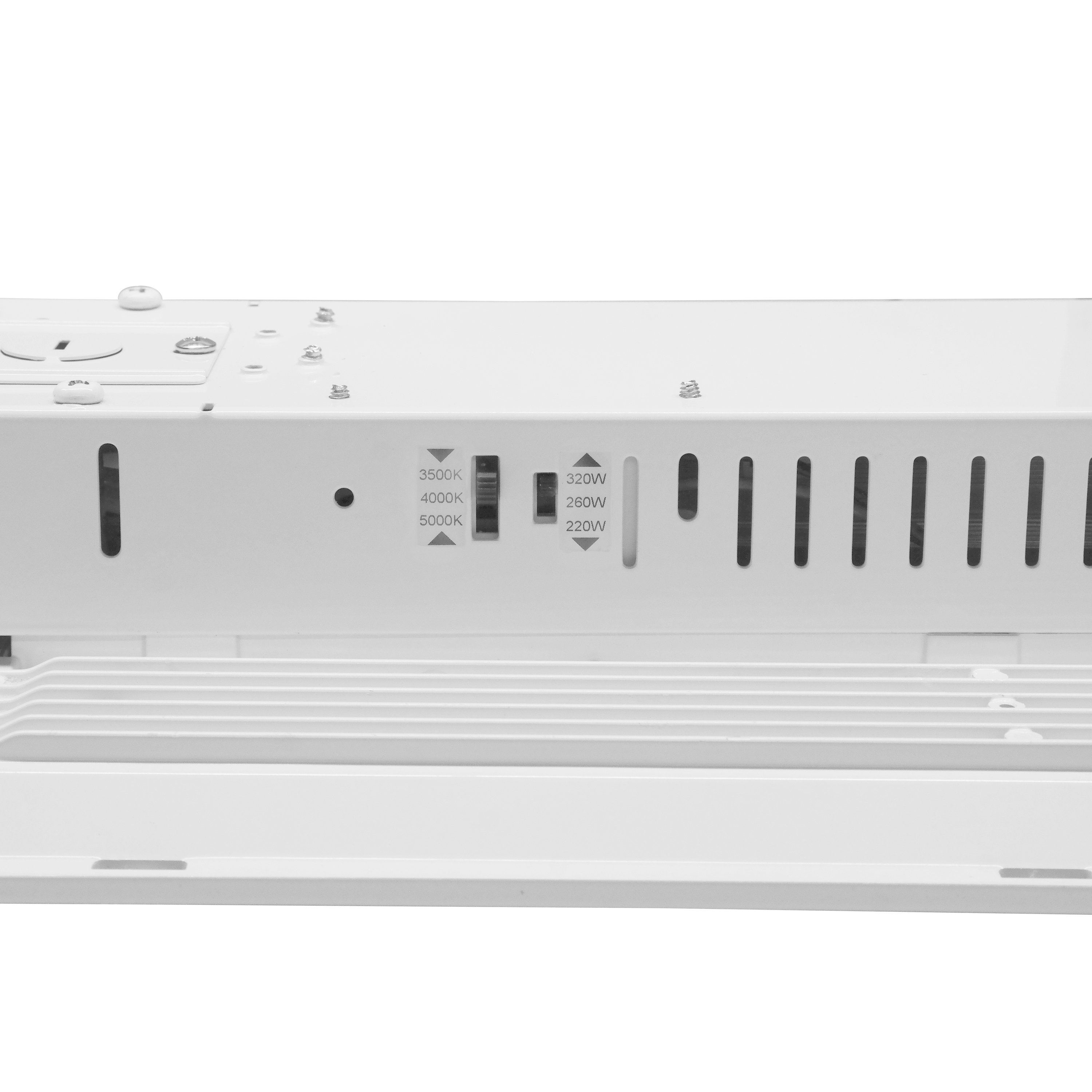

COLOR AND POWER SELECTABLE. You can choose either a 3500K neutral white, 4000K cool white or 5000K daylight color temperature, and change the power with a simple switch.

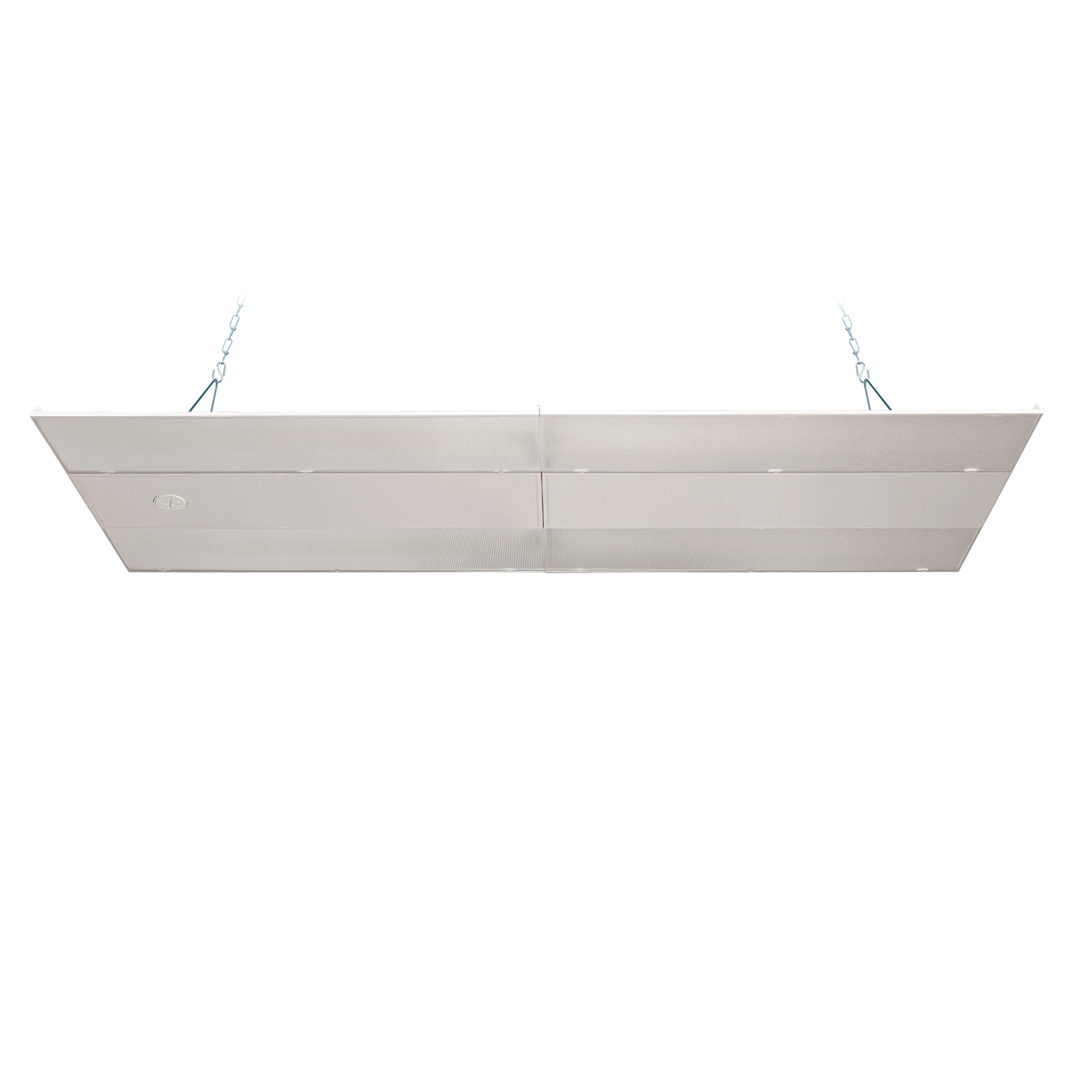

INSTALLATION. It has three different mounting options: suspended, surface, and pendant. Perfect commercial or industrial solution for warehouses, supermarkets, retail stores, gyms, and many other applications. This fixture is also Damp Locations rated.

ADVANTAGES: With calculated lifespan up to 182 000 hours, these fixtures are made to last decades under normal operation! ASD provides a 5-year limited warranty along with UL and DLC Premium certifications to guarantee top quality products and safety!

Q-Base LED Linear High Bay WHB5A

Model
PowerlmCCTCRI
IPOperating t°
DimmingDLC
version
CertificateCut SheetIESUPC (GTIN-12)
ASD-WHB5A-A500DAC120-277V320/400/500W67,3113,500/4,000/5,000>8090°39 3/811 13/162 1/8IP20-40+122°F -40+50°CR>54,000 C>187,000YesPremium810128111089
ASD-WHB5A-A320DAC120-277V220/260/320W46,1353,500/4,000/5,000>8090°39 3/811 13/162 1/8IP20-40+122°F -40+50°CR>54,000 C>182,000YesPremium810128111072
