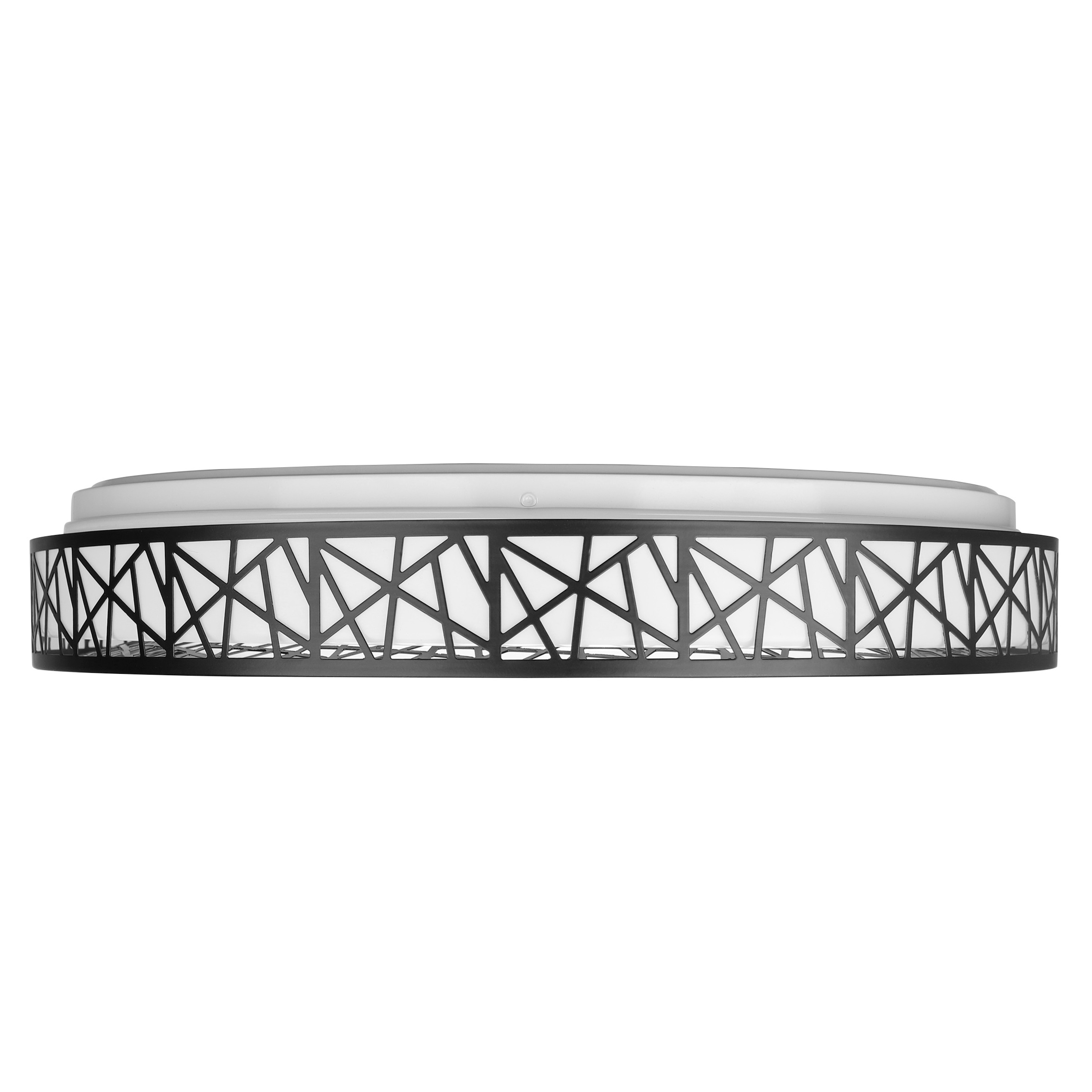

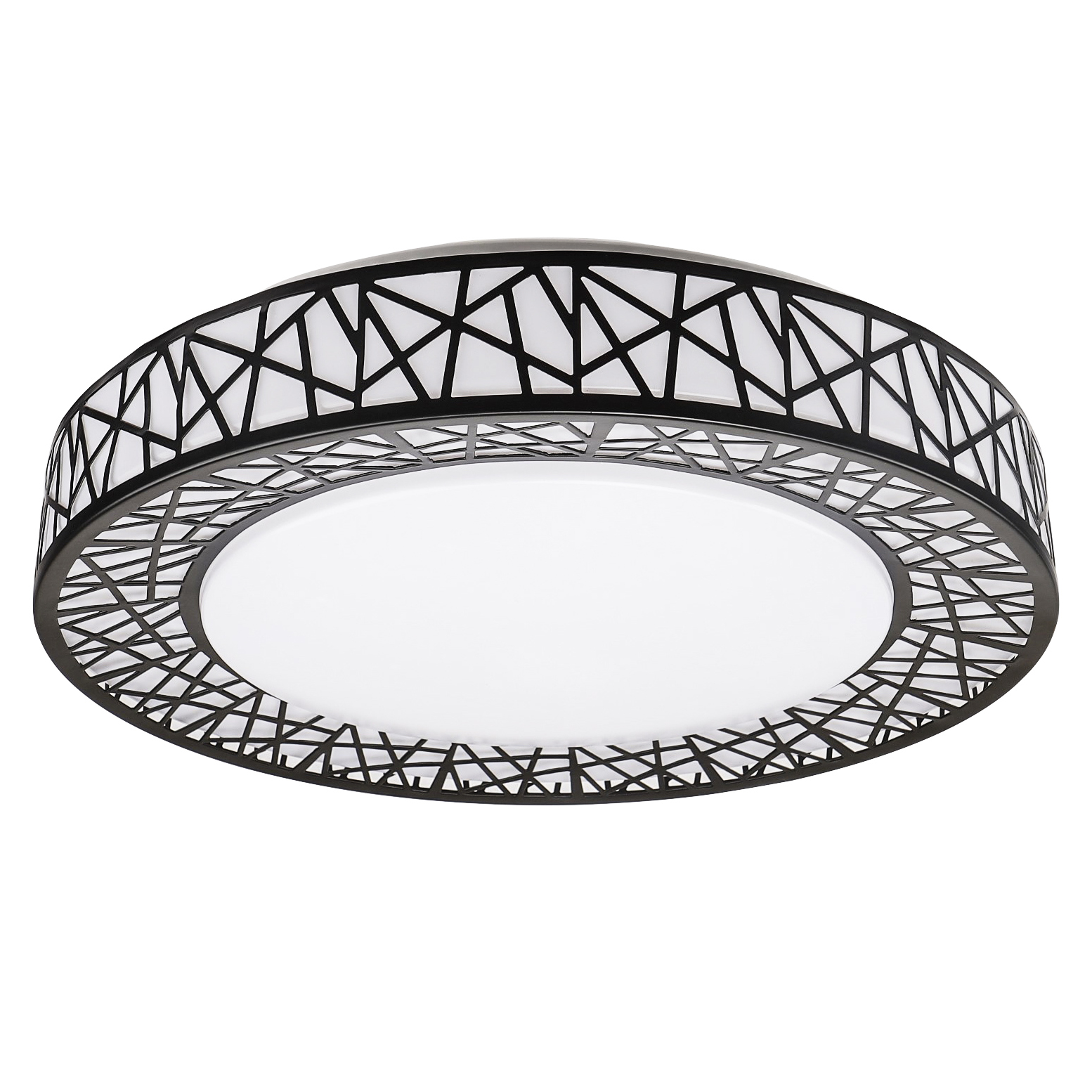

LED Flushmount LOFT series

DESIGN. LED FLUSHMOUNT LOFT has a modern, multipurpose design and a stylish look with efficient lighting. Durable housing resistant to rust and impact along with a PS lens provide many years of use. It is designed to operate on 120V circuits.

COLOR SELECTABLE. You can choose either a 2700K soft white, 3000K warm white, 3500K neutral white, 4000K cool white, or 5000K daylight color temperature.

DIMMING. Smooth triac dimming capabilities ranging from 10% to 100% with modern LED dimmers allow you to control the look and feel of your space.

APPLICATION. The LED FLUSHMOUNT LOFT provides bright, yet smooth lighting for your family room, bedroom, hallway, corridor, or any other common area in your living space. This fixture is also Damp Locations rated.

ADVANTAGES. With a lifespan of 50,000 hours, these fixtures are made to last decades under normal operation! ASD provides a 5-year limited warranty along with ETL certification to guarantee top quality products and safety!

LOFT-FM series

Model		Shade Size	Power	lm	CCT	CRI					Location	Operating t°		Dimming	UPC (GTIN-12)	GTIN (14)
ASD-LOFT-FM-18D35BK	120V	18"	35W	1,766/1,915/1,989/1,981/1,992	2,700/3,000/3,500/4,000/5,000	>80	128°	17 15/16	17 15/16	3 15/16	Damp	-4 +113F°/-20 +45C°	50,000	Yes	810128117104	10810128117101
ASD-LOFT-FM-14D24BK	120V	14"	24W	1,180/1,274/1,367/1,459/1,534	2,700/3,000/3,500/4,000/5,000	>80	123º	14	14	3 3/4	Damp	-4 +122F°/-20 +50C°	50,000	Yes	810128117098	10810128117095
ASD-LOFT-FM-16D28BK	120V	16"	28W	1,457/1,601/1,679/1,752/1,679	2,700/3,000/3,500/4,000/5,000	>80	127°	15 5/16	15 5/16	3 11/16	Damp	-4 +113F°/-20 +45C°	50,000	Yes	810128116985	10810128116982
ASD-LOFT-FM-12D20BK	120V	12"	20W	970/1,057/1,080/1,130/1,113	2,700/3,000/3,500/4,000/5,000	>80	135°	11 13/16	11 13/16	3 1/2	Damp	-4 +113F°/-20 +45C°	50,000	Yes	810128116763	10810128116760
ASD-LOFT-FM-16D28NK	120V	16"	28W	1,457/1,601/1,679/1,752/1,679	2,700/3,000/3,500/4,000/5,000	>80	127°	15 5/16	15 5/16	3 11/16	Damp	-4 +113F°/-20 +45C°	50,000	Yes	810128116022	10810128116029
ASD-LOFT-FM-18D35NK	120V	18"	35W	1,766/1,915/1,989/1,981/1,992	2,700/3,000/3,500/4,000/5,000	>80	128°	17 15/16	17 15/16	3 15/16	Damp	-4 +113F°/-20 +45C°	50,000	Yes	810128116039	20810128116033
ASD-LOFT-FM-20D42NK	120V	20"	42W	2,028/2,181/2,356/2,475/2,474	2,700/3,000/3,500/4,000/5,000	>80	125°	19 1/8	19 1/8	4 1/8	Damp	-4 +113F°/-20 +45C°	50,000	Yes	810128114974	20810128114978
ASD-LOFT-FM-12D20NK	120V	12"	20W	970/1,057/1,080/1,130/1,113	2,700/3,000/3,500/4,000/5,000	>80	135°	11 13/16	11 13/16	3 1/2	Damp	-4 +113F°/-20 +45C°	50,000	Yes	810128114967	10810128114964
ASD-LOFT-FM-20D42BK	120V	20"	42W	2,028/2,181/2,356/2,475/2,474	2,700/3,000/3,500/4,000/5,000	>80	121°	19 1/8	19 1/8	4 1/8	Damp	-4+113°F / -20+45°C	50,000	Yes	810128116671	10810128116678
ASD-LOFT-FM-14D24NK	120V	14"	24W	1,180/1,274/1,367/1,459/1,534	2,700/3,000/3,500/4,000/5,000	>80	125°	14	14	3 3/14	Damp	-4+113°F / -20+45°C	50,000	Yes	810128115100	10810128115107

LFC-LF series

Model		Shade Size	Power	lm	CCT	CRI					Location	Operating t°		Dimming	UPC (GTIN-12)	GTIN (14)
ASD-LFC-LF-18D35-AC-NK	120V	18"	35W	1,766/1,915/1,989/1,981/1,992	2,700/3,000/3,500/4,000/5,000	>80	125°	17 15/16	17 15/16	3 15/16	Damp	-4+113°F / -20+45°C	50,000	Yes	810128110761	10810128110768
ASD-LFC-LF-18D35-AC-BK	120V	18"	35W	1,766/1,915/1,989/1,981/1,992	2,700/3,000/3,500/4,000/5,000	>80	125°	17 15/16	17 15/16	3 15/16	Damp	-4+113°F / -20+45°C	50,000	Yes	810128110754	10810128110751
ASD-LFC-LF-14D24-AC-NK	120V	14"	24W	1,180/1,274/1,367/1,459/1,534	2,700/3,000/3,500/4,000/5,000	>80	125°	14	14	3 3/4	Damp	-4+113°F / -20+45°C	50,000	Yes	810128110747	10810128110744
ASD-LFC-LF-14D24-AC-BK	120V	14"	24W	1,180/1,274/1,367/1,459/1,534	2,700/3,000/3,500/4,000/5,000	>80	125°	14	14	3 3/4	Damp	-4+113°F / -20+45°C	50,000	Yes	810128110730	10810128110737
ASD-LFC-LF-12D20-AC-NK	120V	12"	20W	970/1,057/1,080/1,130/1,113	2,700/3,000/3,500/4,000/5,000	>80	125°	11 13/16	11 13/16	3 1/2	Damp	-4+113°F / -20+45°C	50,000	Yes	810128110723	10810128110720
ASD-LFC-LF-12D20-AC-BK	120V	12"	20W	970/1,057/1,080/1,130/1,113	2,700/3,000/3,500/4,000/5,000	>80	125°	11 13/16	11 13/16	3 1/2	Damp	-4+113°F / -20+45°C	50,000	Yes	810128110716	10810128110713
ASD-LFC-LF-16D28-AC-NK	120V	16"	28W	1,457/1,601/1,679/1,752/1,679	2,700/3,000/3,500/4,000/5,000	>80	127°	15 5/16	15 5/16	3 11/16	Damp	-4+113°F / -20+45°C	50,000	Yes	810050737876	10810050737873
ASD-LFC-LF-16D28-AC-BK	120V	16"	28W	1,457/1,601/1,679/1,752/1,679	2,700/3,000/3,500/4,000/5,000	>80	127°	15 5/16	15 5/16	3 11/16	Damp	-4+113°F / -20+45°C	50,000	Yes	810050737869	10810050737866
ASD-LFC-LF-20D42-AC-NK	120V	20"	42W	2,028/2,181/2,356/2,475/2,474	2,700/3,000/3,500/4,000/5,000	>80	125°	19 1/8	19 1/8	4 1/8	Damp	-4+113°F / -20+45°C	50,000	Yes	810050737142	10810050737149
ASD-LFC-LF-20D42-AC-BK	120V	20"	42W	2,028/2,181/2,356/2,475/2,474	2,700/3,000/3,500/4,000/5,000	>80	125°	19 1/8	19 1/8	4 1/8	Damp	-4+113°F / -20+45°C	50,000	Yes	810050737135	10810050737132
