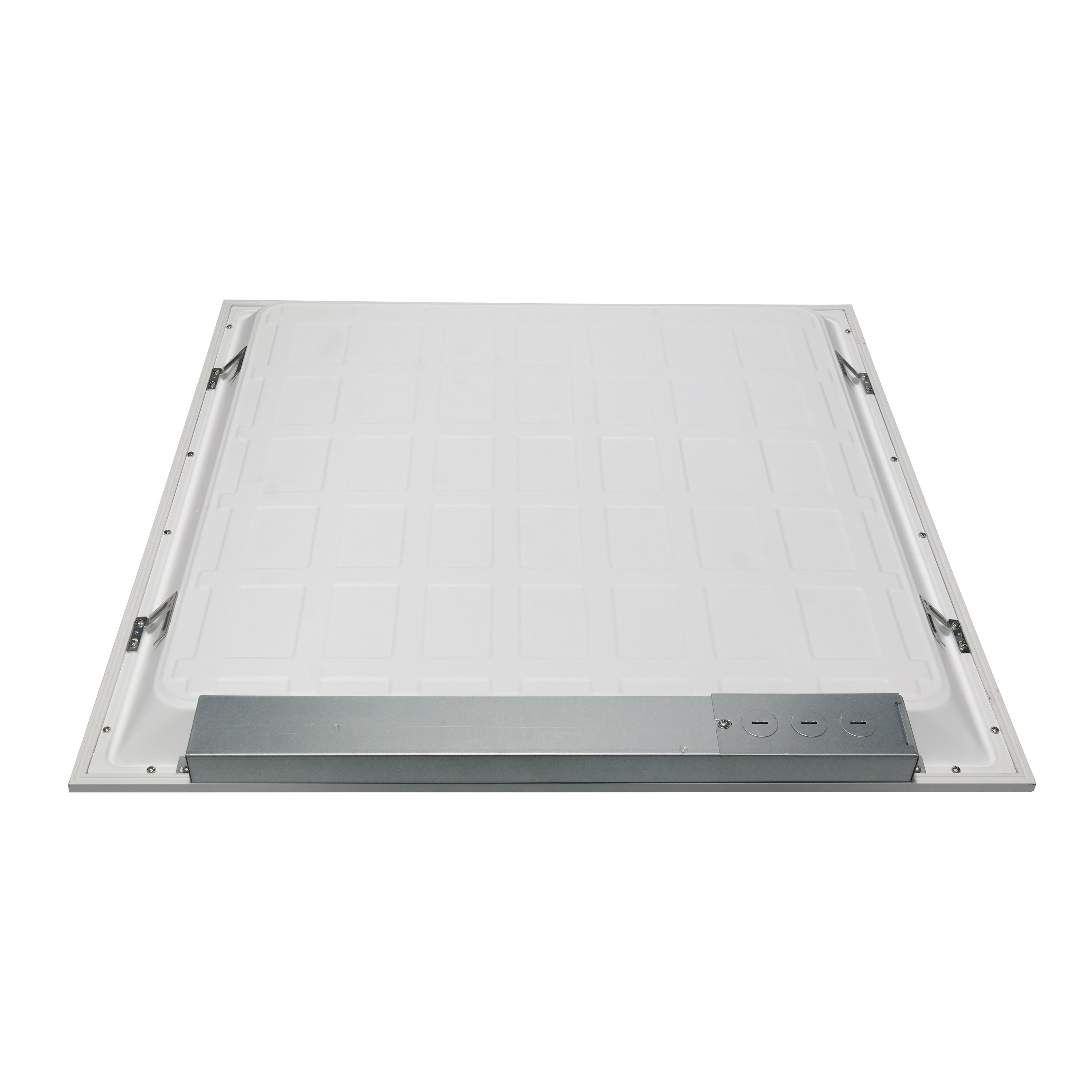

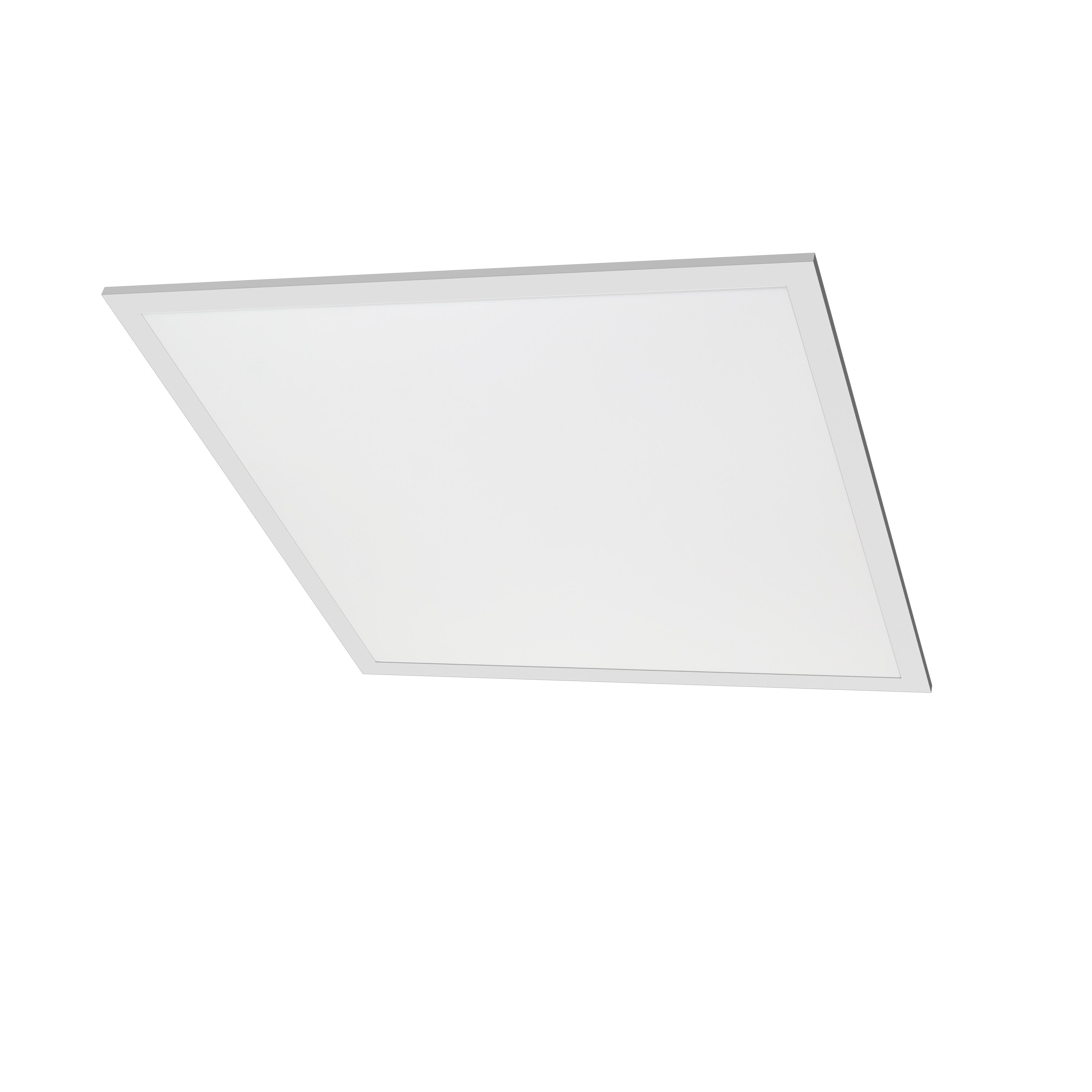

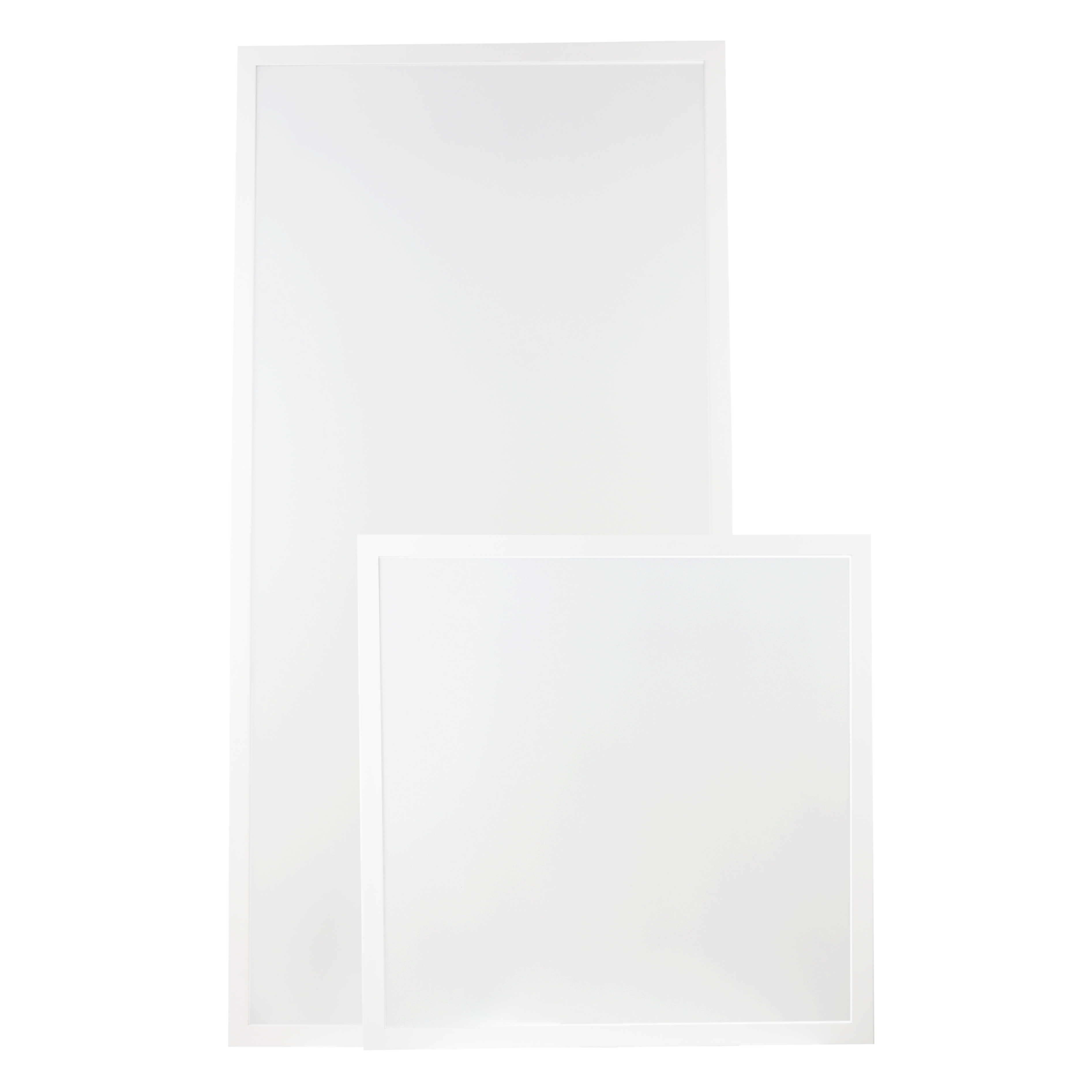

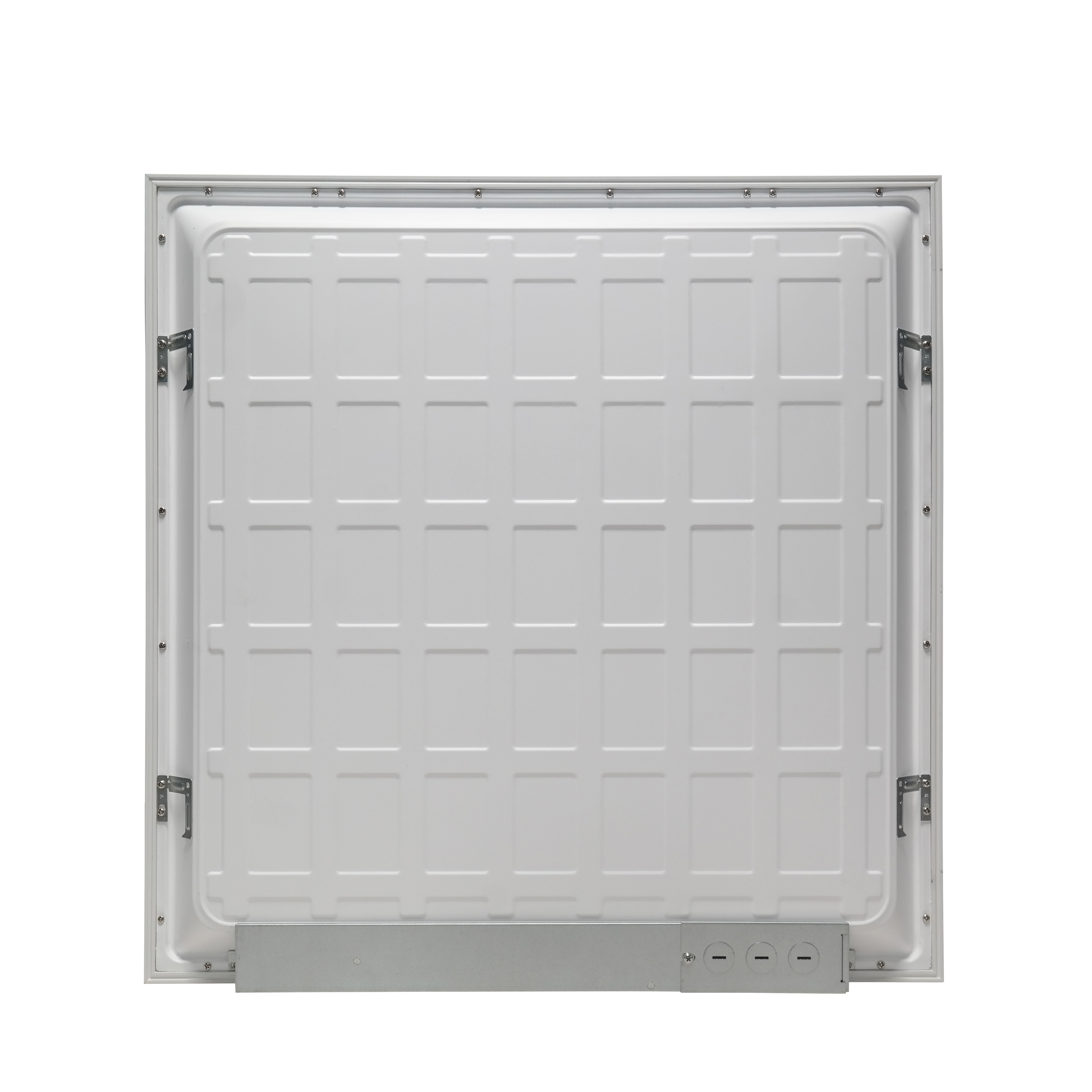

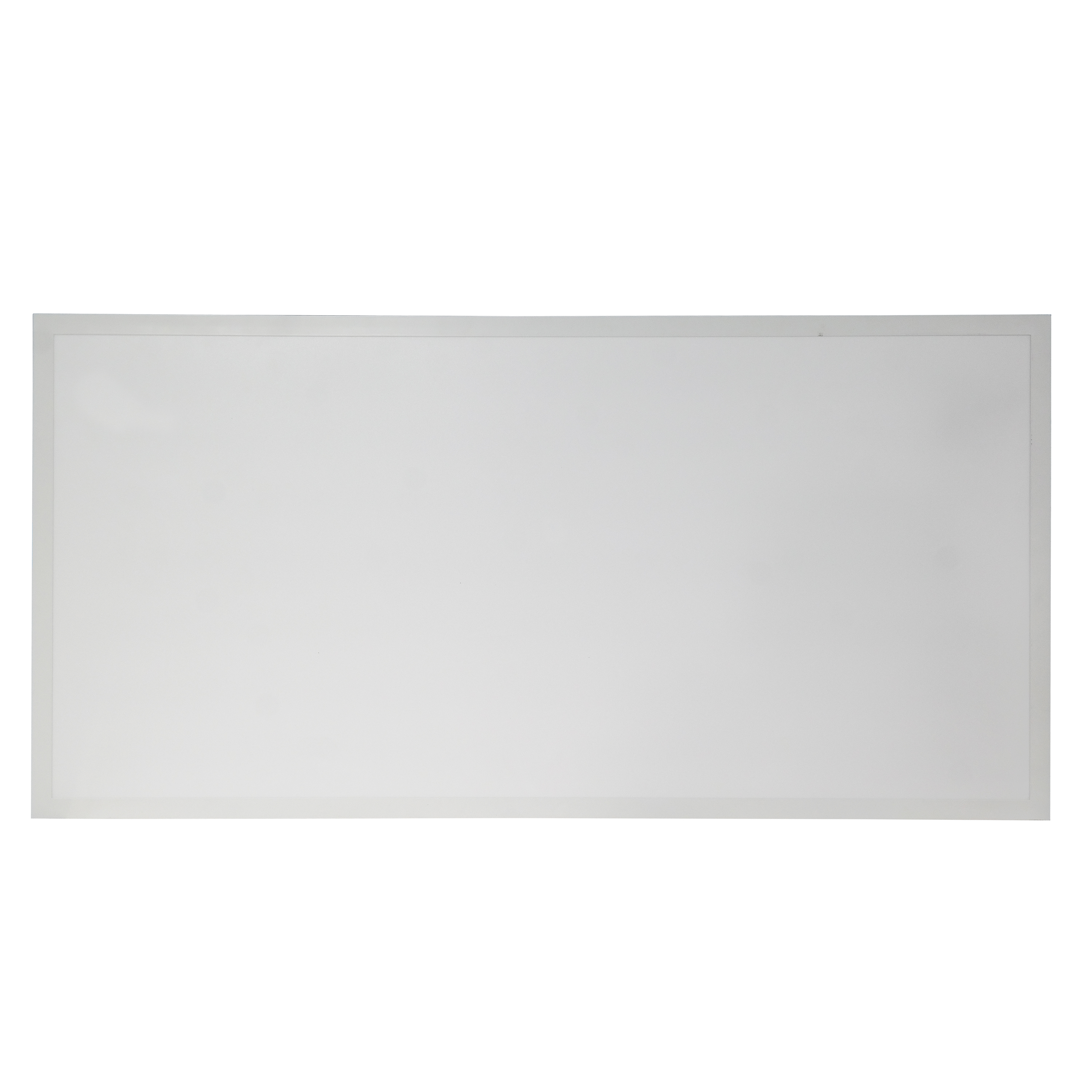

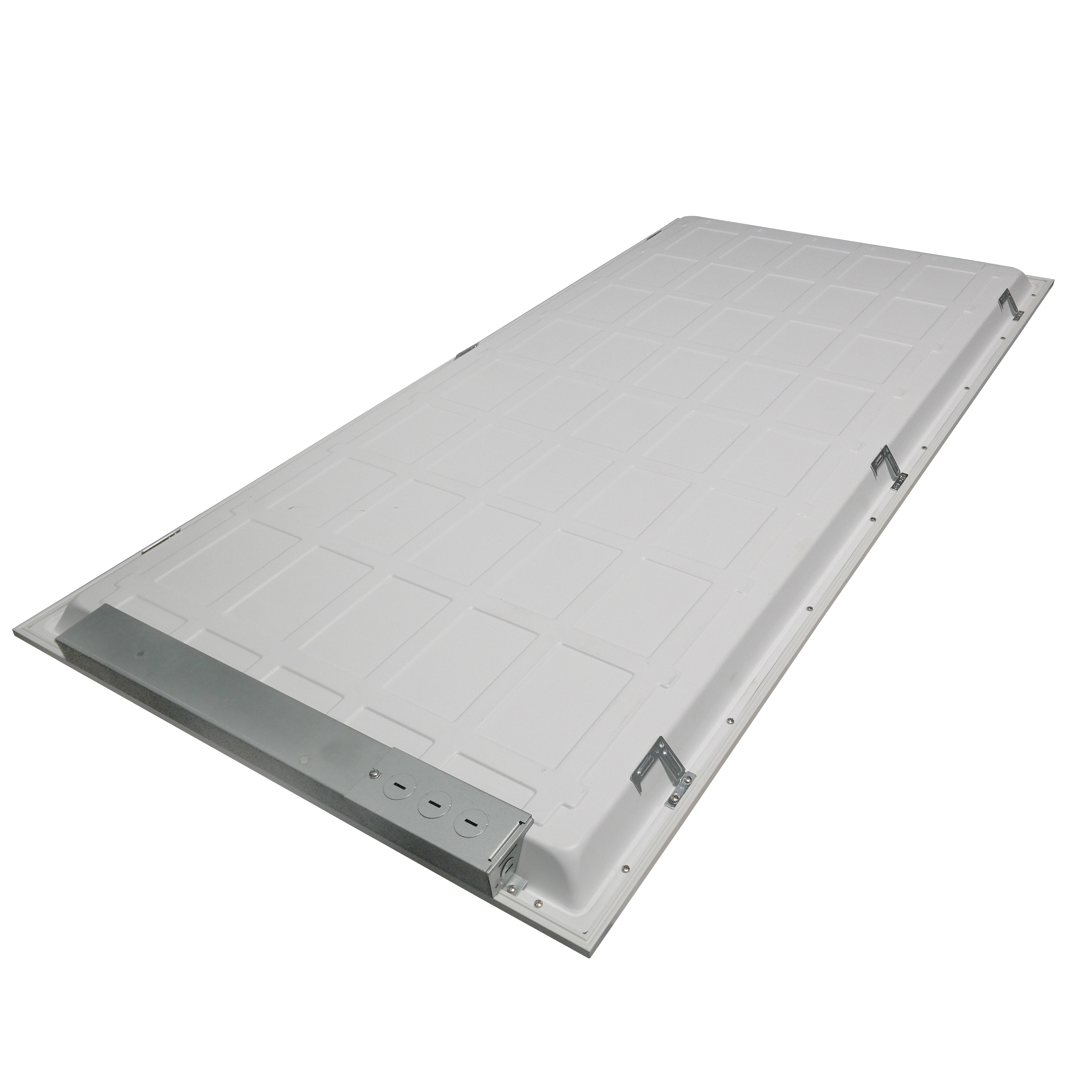

LED Back-Lit Flat Panels Series BLP SMART

DESIGN. SMART LED BACK-LIT PANEL  comes with a durable commercial grade housing resistant to rust and impact, anti-corrosion aluminum seamless rigid frame, anti-glare PC lens, and 0-10V dimmable driver with circuit overload, short circuit, and low-voltage protection, making it both safe and reliable. It is designed to operate on 120-277V circuits.

SMART CONTROL. Smoothly Dimmable and CCT tunable from 3500K to 5000K White Color with Smart APP on your Smartphone.  You can easily make grouping and schedule programming of the fixtures as well. The fixture is also compatible with Alexa and Google Assistant.

INSTALLATION. This fixture has three different mounting options: recessed, suspended, and surface.

APPLICATION. Perfect commercial or industrial solution for offices, hospitals, schools, retail, workshops, and many other applications. It is also Damp Locations rated.

ADVANTAGES: With calculated lifespan up to 144 000 hours, these fixtures are made to last decades under normal operation! ASD provides a 5-year limited warranty along with UL and DLC Premium certifications to guarantee top quality products and safety!
Model
PowerlmCCTCRI
LocationOperating t°
DimmingDLC
version
CertificateCut SheetIESUPC (GTIN-12)
ASD-BLP-24D40SM-2P120-277V40W4,816/4,896/4,9243,500-5,000>80120°47 3/423 3/41 3/8Damp-4 +104F°/-20 +40C°R>54,000 C>144,000YesPremium810128116626
ASD-BLP-22D35SM-2P120-277V35W4,321/4,362/4,2663,500-5,000>80120°23 3/423 3/41 3/8Damp-4 +104F°/-20 +40C°R>54,000 C>144,000YesPremium810128116602
