LED Back-Lit Flat Panels Series BLP RGBW SMART

DESIGN. SMART RGBW LED BACK-LIT PANEL  comes with a durable commercial grade housing resistant to rust and impact, anti-corrosion aluminum seamless rigid frame, anti-glare PC lens, and 0-10V dimmable driver with circuit overload, short circuit, and low-voltage protection, making it both safe and reliable. It is designed to operate on 120-277V circuits.

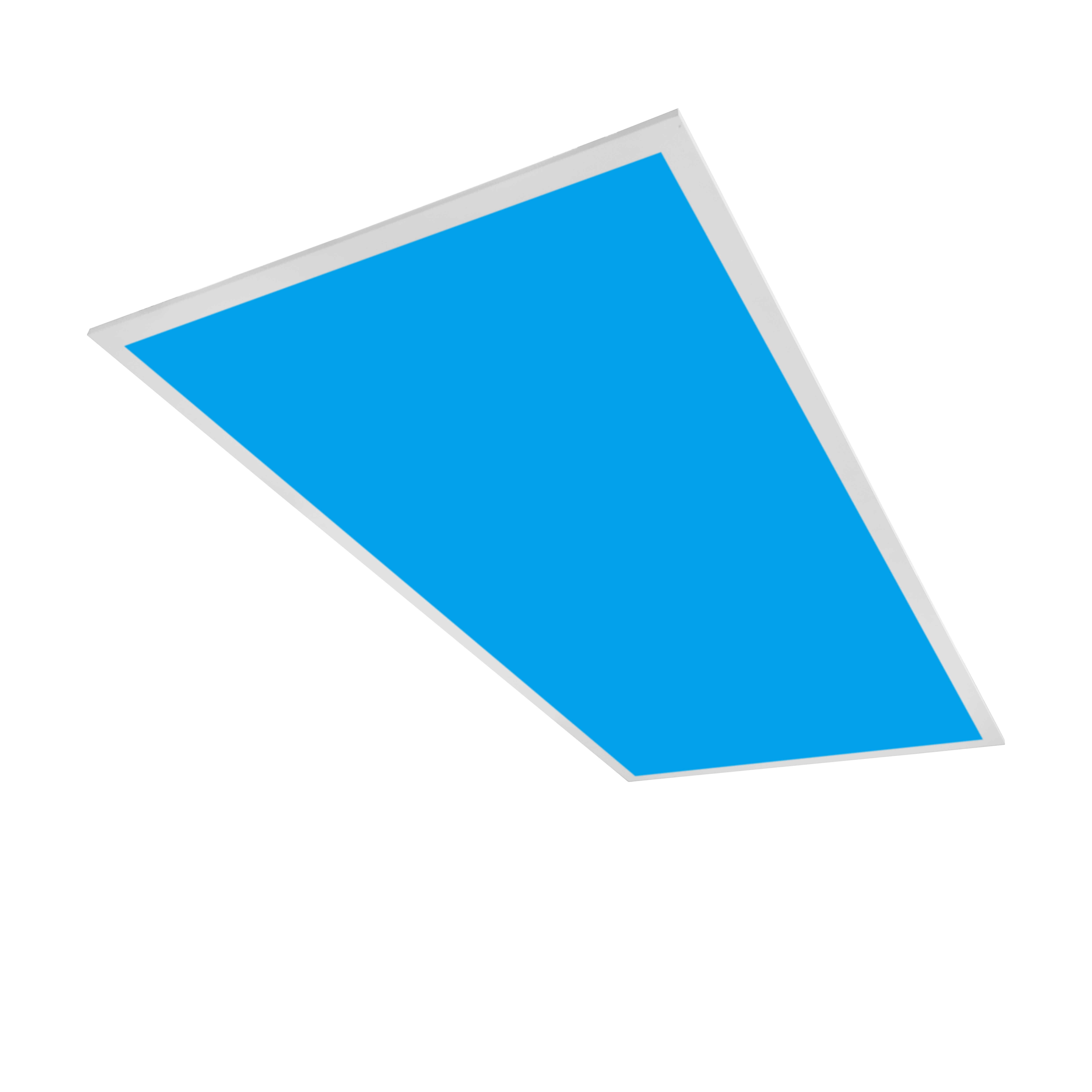

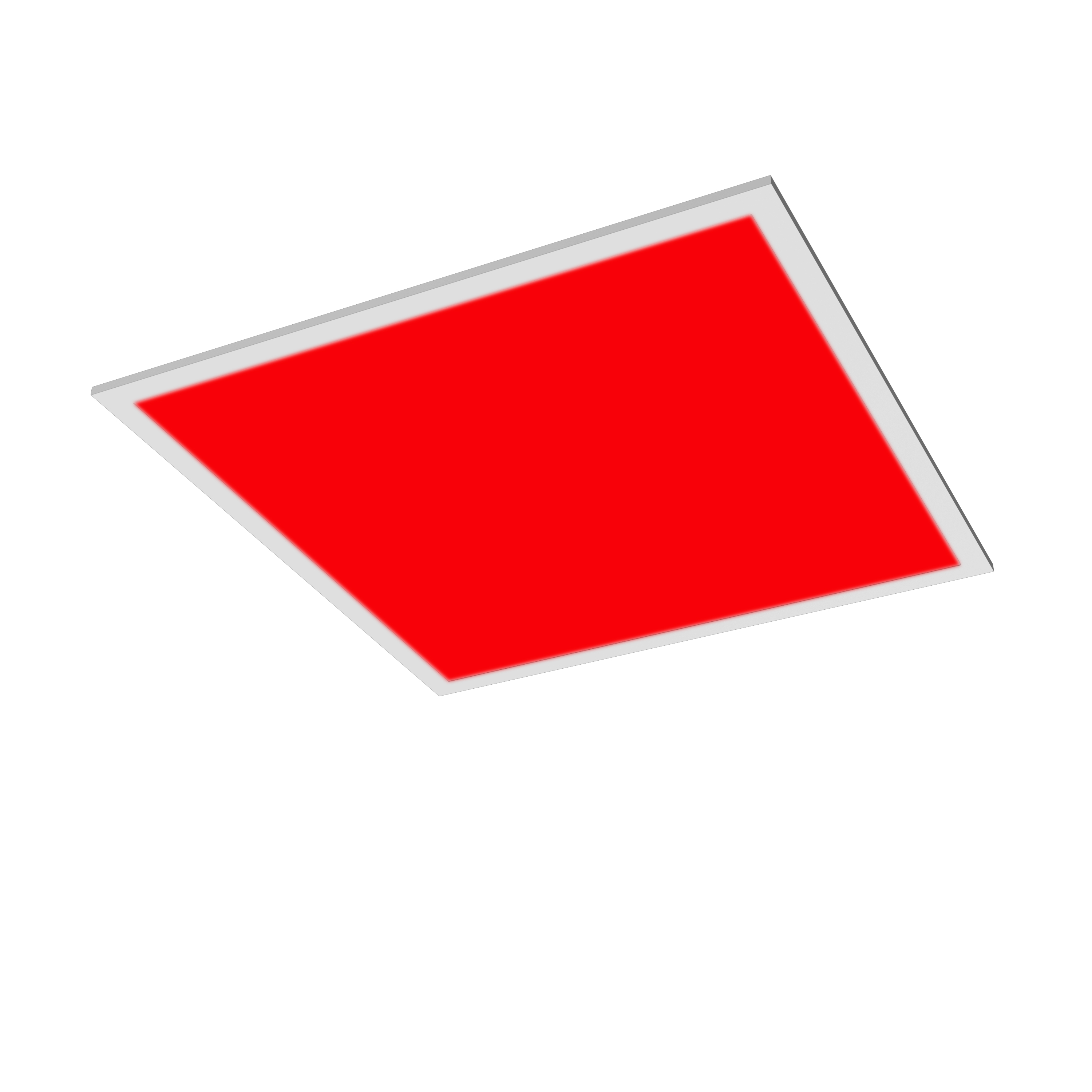

RGBW. The fixture has RGBW design with APP control. You can easily select Red, Green, Blue, White (3500K-5000K) colors or its' cobinations, having 16.7 million colors in total. You can also choose lighting patterns and set up a schedule, having a great variety of good looking effects.

SMART CONTROL.  You can easily make grouping and schedule programming of the fixtures with Smart App control. The fixture is also compatible with Alexa and Google Assistant.

INSTALLATION. This fixture has three different mounting options: recessed, suspended, and surface.

ADVANTAGES: With calculated lifespan up to 144 000 hours, these fixtures are made to last decades under normal operation! ASD provides a 5-year limited warranty along with UL certification to guarantee top quality products and safety!
Model
PowerlmCCTCRI
LocationOperating t°
DimmingCertificateCut SheetIESUPC (GTIN-12)
ASD-BLP-24D40SM-RGBW-2P120-277V40W4,831/4,918/4,9613,500-5,000>80120°47 3/423 3/41 3/8Damp-4 +104F°/-20 +40C°R>54,000 C>144,000Yes810128116664
ASD-BLP-22D35SM-RGBW-2P120-277V35W4,368/4,420/4,2823,500-5,000>80120°23 3/423 3/41 3/8Damp-4 +104F°/-20 +40C°R>54,000C>144,000Yes810128116640
